| Type: | Miniature Tension Load Cell | Load Direction: | Tension And Compression |
|---|---|---|---|
| Capacity: | 5kg 10kg 20kg 30kg 50kg | Usage: | Force Measurement |
| Output: | Analog Sensor | Mounting: | Flange To M3 |
Column Type Tension Load Cell 20kg 10kg 5kg Flanged Tensile Force Sensor 50N 100N 200N

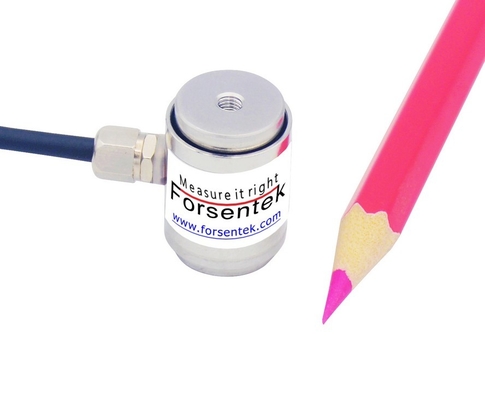

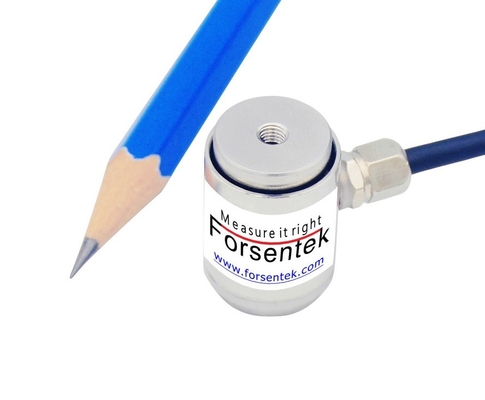

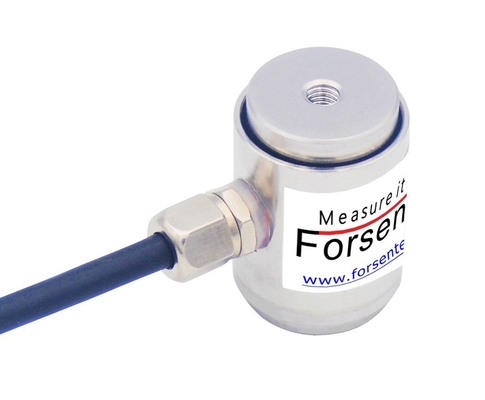

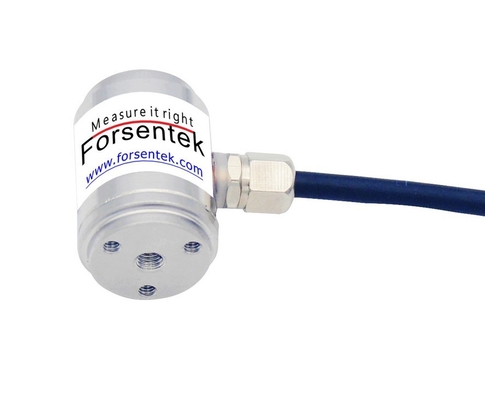

Miniature Tension Load Cell FFJ is made of stainless steel utilizing strain gauge technology intended for both tension and compression force measurement, high accuracy with maximum 0.1% non-linearity of the full scale. Micro Cylindrical Load Cell FFJ offers 0-5kg / 0-10kg / 0-20kg / 0-30kg / 0-50kg (0-50N / 0-100N / 0-200N / 0-300N / 0-500N) five rated capacities to choose from. One end with flanged surface, the other end with M3 threaded hole,which makes miniature force transducer FFJ can be easily mounted to mechanical parts and get force measurement done. Stainless steel construction, compact size, bidirectional force measurement, high accuracy, Column Type Force Sensor FFJ offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, connector insertion and extraction force measurement and so on. In addition to the standard specifications, Forsentek is also capable of providing custom design service to meet requirements of different applications.
Dimensions
| Ordering code | Measurement Range | Force direction |
| FFJ-50N | 0-50N / 0-5kgf |
Tension and compression |
| FFJ-100N | 0-100N / 0-10kgf | |
| FFJ-200N | 0-200N / 0-20kgf | |
| FFJ-300N | 0-300N / 0-30kgf | |
| FFJ-500N | 0-500N / 0-50kgf |
Specifications
| Capacity |
50N / 5kgf / 11lb 300N / 30kgf / 67lbs 500N / 50kgf / 112lbf |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of the capacity |
| Hysteresis | ±0.1% of the capacity |
| Nonrepeatability | ±0.05% of the capacity |
| Creep(5min) | ±0.05% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Column Type Tension Load Cell 20kg 10kg 5kg Flanged Tensile Force Sensor 50N 100N 200N
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Micro Tension Force Sensor FFJ is around 2.0mV/V.
Power supply of Miniature Column Type Tensile Force Transducer FFJ is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Miniature Pull Load Cell FFJ is normally within 0mV...+30mV for bidirectional force measurement.
Example one: Miniature cylindrical tension load cell FFJ-10kg with 2.0mV/V sensitivity powered by 5V DC,the output range is 0...+10mV.
Example two: Micro Column Type Traction Force Sensor FFJ-20kg with 2.0mV/V sensitivity powered by 10V DC,the output range is 0...+20mV.
A signal conditioner can be used with force transducer FFJ to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Miniature tension load cell FFJ-5kg working with 0-5V amplifier,the Force-Voltage relationship will be 0-5kg tensile load VS 0-5V output, which is linear regardless of the measurement error. When you get 1V output, it means the current load is 1kgf pull force, when you get 2V output, it means the current load is 2kgf tension force, and so on.
Example two: Miniature Pull Load Cell FFJ-10kg working with 4-20mA amplifier,the Force-Current relationship will be 0-10kg tension load VS 4-20mA output, which is linear regardless of the measurement error. Namely 4mA output corresponds to “0” load, 5.6mA output corresponds to 1kgf tension force, 12mA output corresponds to 5kgf tensile load, and so on.
