Type: | Miniature Cylindrical Load Cell | Load Direction: | Compression And Traction |
---|---|---|---|
Capacity: | 1kg 2kg 5kg 10kg 20kg | Output: | Analog Sensor |
Mounting Hole: | M3 |

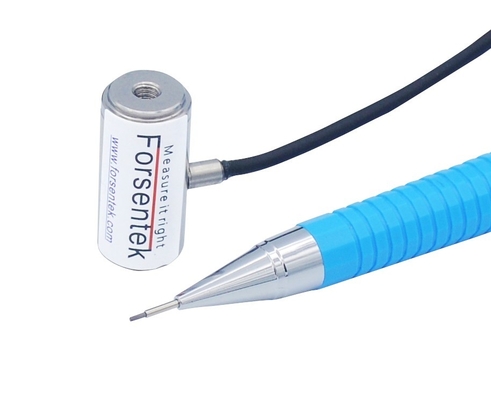

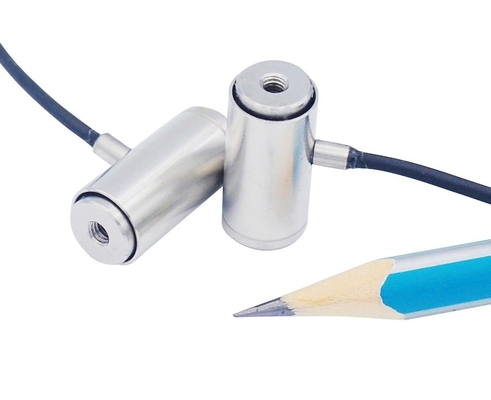

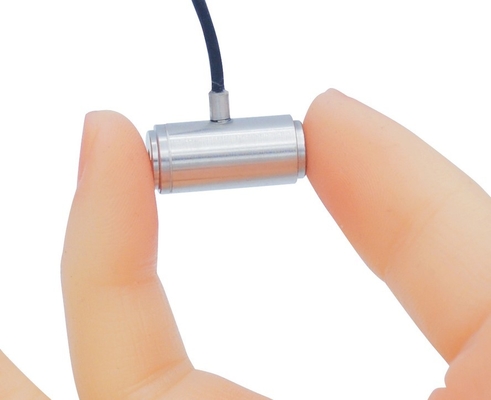

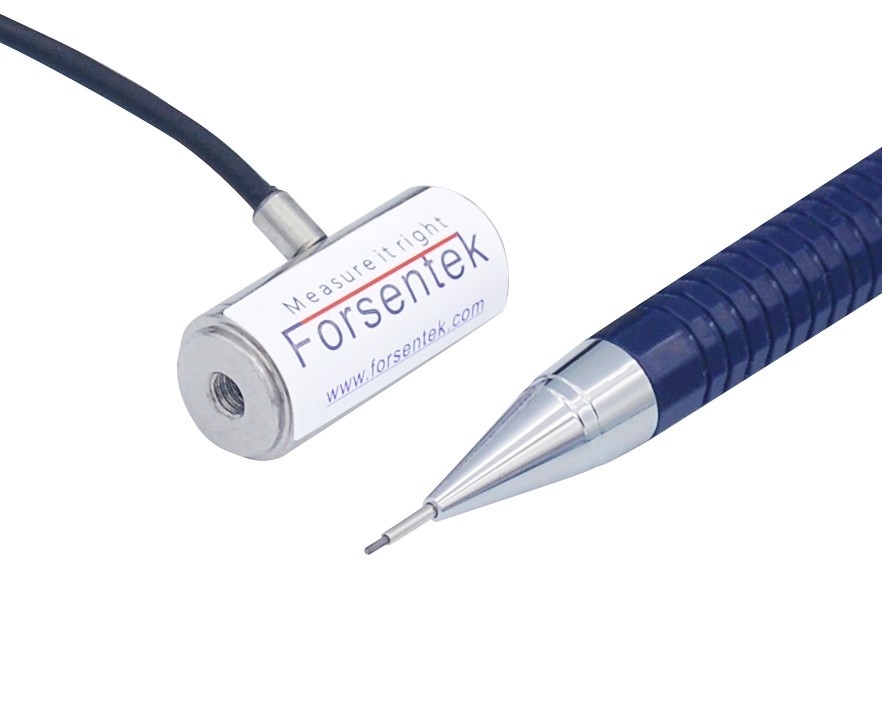

Miniature Compression Traction Load Cell 1kg 2kg 5kg 10kg With M3 Threaded Hole
Miniature Compression Traction Load Cell FLAE is made of stainless steel utilizing strain gauge technology to deliver maximum 0.2% non-linearity of rated output. Micro Tension Compression Load Cell FLAE offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg (0-10N / 0-20N / 0-50N / 0-100N / 0-200N) five rated capacities to choose from. M3 threaded holes located on two sides of the transducer can be used to mount attachments or implements to adapt to different force measurement cases, miniature column type load cell FLAE can be used for both tension and compression force measurement. Stainless steel construction, compact size, bidirectional force measurement, high accuracy, Micro Force Load Cell FLAE offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control and so on. In addition to the standard specifications, Forsentek is also capable of providing custom design service to meet requirements of different applications.
Ordering code | Measurement Range | Force direction |
FLAE-10N | 0-10N / 0-1kgf |
Tension and compression |
FLAE-20N | 0-20N / 0-2kgf | |
FLAE-50N | 0-50N / 0-5kgf | |
FLAE-100N | 0-100N / 0-10kgf | |
FLAE-200N | 0-200N / 0-20kgf |
Specifications
Capacity |
10N / 1kg / 2lb |
Rated output | 2.0 mV/V |
Excitation | 3-12V |
Zero balance | ±0.1mV/V |
Nonlinearity | ±0.2% of the capacity |
Hysteresis | ±0.2% of the capacity |
Nonrepeatability | ±0.1% of the capacity |
Creep(5min) | ±0.1% of the capacity |
Safe overload | 150% of the capacity |
Ultimate overload | 200% of the capacity |
Compensated temperature | -10...+40oC |
Operating temperature | -20...+60oC |
Temperature shift zero | ±0.03% R.O./oC |
Temperature shift span | ±0.02% R.O./oC |
Input resistance | 380±30 ohms |
Output resistance | 352±3 ohms |
Insulation resistance | >2000M ohms |
Ingress protection | IP50 |
Material of element | Stainless steel |
Cable | Ø2*3000mm 4-core shielded |
Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Miniature Compression Traction Load Cell 1kg 2kg 5kg 10kg With M3 Threaded Hole
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of miniature cylindrical load cell FLAE is around 2.0mV/V.
Power supply of micro column force sensor FLAE is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of miniature force transducer FLAE is normally within -24mV...+24mV for tension/compression force measurement.
Example one:Miniature traction/compression load cell FLAE-10N with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.
Example two: Micro Compression And Traction Force Sensor FLAE-20N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Miniature tension compression load cell FLAE-10kg working with -10-10V amplifier,the Force-Voltage relationship will be 0-10kg compression load VS 0-10V output,0-10kg traction load VS 0-(-10V) output,when you get 5V output,it means the current load is 5kgf compression force,when you get -1V output,it means the current load is 1kgf tensile force,and so on.
Example two: Miniature Compression Traction Load Cell FLAE-1kg working with -10-10V amplifier,the Force-Voltage relationship will be 0-1kg compression load VS 0-10V output,0-1kg traction load VS 0-(-10V) output,when you get 5V output,it means the current load is 0.5kgf compression force,when you get -1V output,it means the current load is 0.1kgf tensile force,and so on.
