| Usage: | Force Measurement | Type: | S Beam Load Cell |
|---|---|---|---|
| Load Direction: | Compression And Traction | Output: | Analog Sensor |
| Capacity: | 25kg~10ton(50lb~20klb) | Material: | Stainless Steel |
| Thread: | M8/M12/M20/M24/M30 |

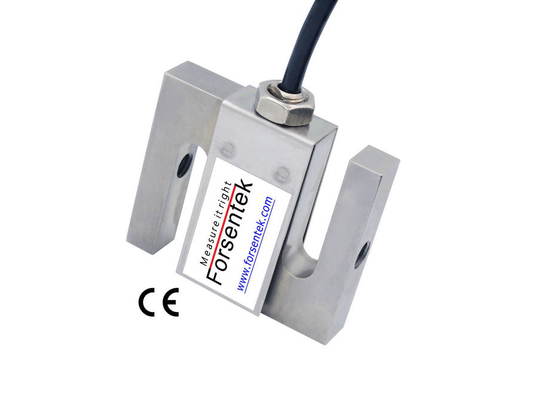

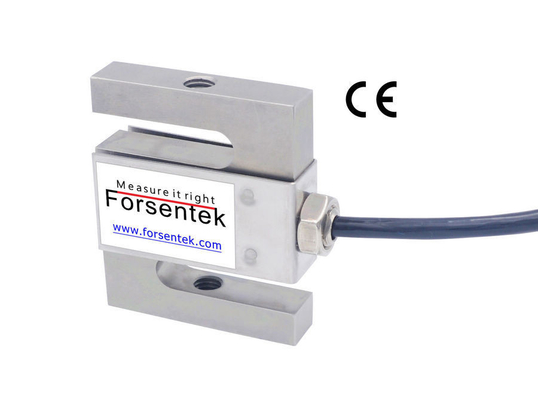

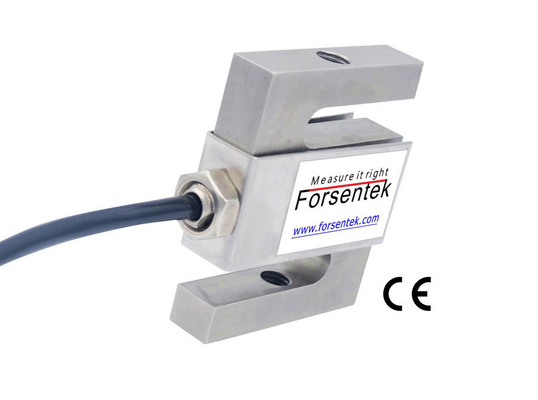

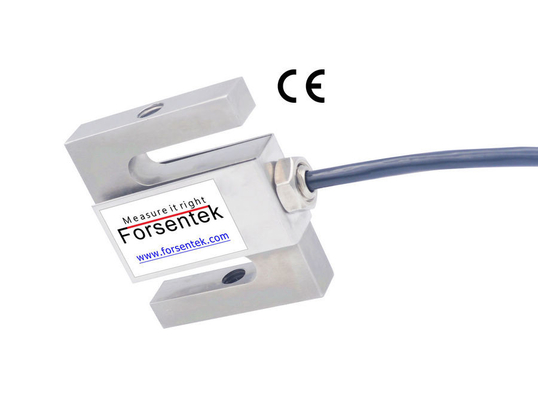

300lb Traction Force Sensor 500lb Traction Load Cell 1klb Pull Force Transducer
High Accuracy S Type Traction Load Cell FSRG is made based on strain gauge technology with unified 3.0mV/V output intended for both tension and compression force measurement, Compression And Traction Force Sensor FSRG offers 50lb / 100lb / 150lb / 200lb / 250lb / 300lb / 500lb / 1klb / 1.5klb / 2klb / 2.5klb / 3klb / 5klb / 10klb / 15klb / 20klb sixteen rated capacities to choose from. High accuracy with maximum 0.02% non-linearity of the full scale. Universal Compression And Traction Load Cell FSRG is hermetically sealed to IP67 with both metric and imperial threads available. S-beam Traction Compression Force Sensor FSRG is applicable for rope and chain strength testing,bagging machines,material testing machines,hanging scales,hoppers weighing applications.You may find Push Pull Force Sensor FSRG interchangeable with Siemens SIWAREX WL250 ST-S SA,VPG Revere 9363, Artech model SS 20210, Rice Lake RL20000ST, ptglobal PT4000, Rice Lake RL20000SS, VPG Sensortronics 60050 with lower cost but uncompromised quality.
A force sensor is used to determine force: The force exerted by the sample is converted into an electrical signal by the force transducer. Force sensors are therefore the most important components of an force measuring/control device. One of the most widely used technologies is based on strain gauge technology: an analog force sensor consists of a measuring element (so-called spring body) made of steel or aluminum, on which strain gauges (Wheatstone bridge) are mounted, strain gauges are electrical resistors that change their resistance while loaded, these resistance change leads to the change of output signal, the force then can be measured and evaluated by measuring the output signal from the wheatstone bridge.

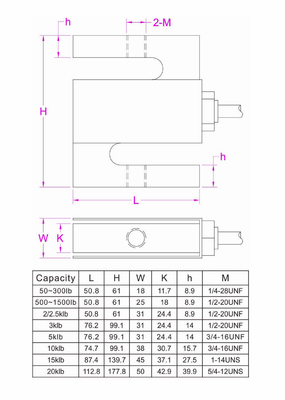

Specifications
| Capacity |
50lb / 100 lb / 150lb / 200lb / 250 lb / 300lb / 500lb / 1klb / 1.5klb / 2klb / 2.5klb / 3klb / 5klb / 10klb / 15klb / 20klb |
| Rated output | 3.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.02% R.O. |
| Hysteresis | ±0.02% R.O. |
| Nonrepeatability | ±0.01% R.O. |
| Creep(30min) | ±0.02% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 250% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -35...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 430±60 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP67 |
| Material of element | Stainless steel |
| Cable | Ø5*6000mm 4-core shielded cable |
| Wiring code | Red--Excitation+ Black--Excitation- Green---Signal+ White--Signal- |
