| Type: | Traction Load Cell | Theory: | 500kg 1000kg 2000kg 3000kg 5000kg |
|---|---|---|---|
| Structure: | S-Beam Load Cell | Usage: | Force Measurement |
| Load Direction: | Traction And Compression | Output: | Analog Force Transducer |
500kg Traction Load Cell 1000kg Push And Pull Load Cell 2000kg

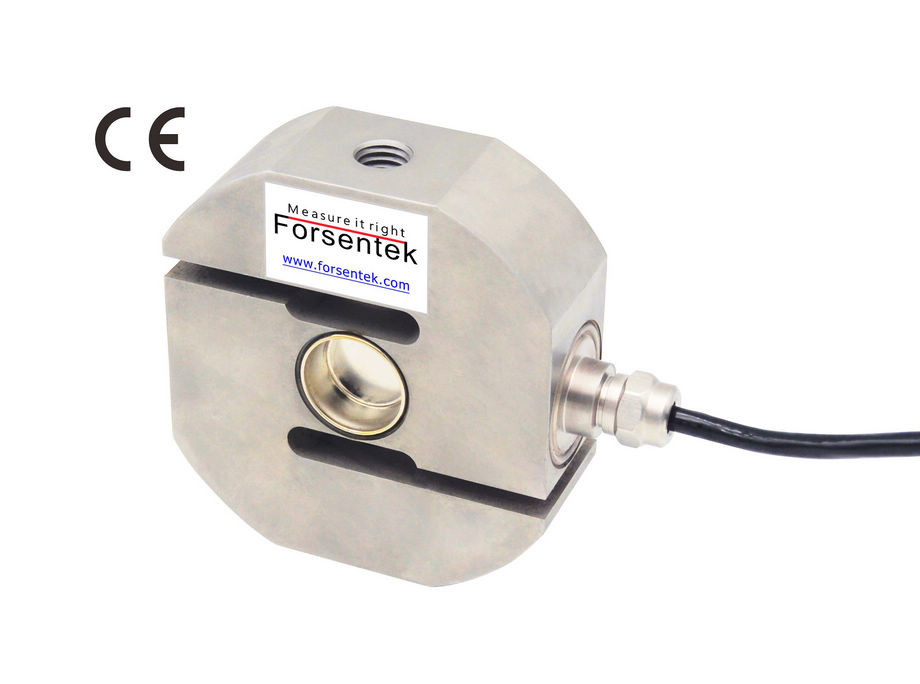

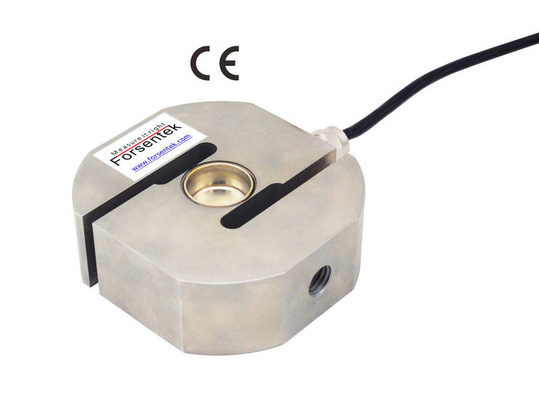

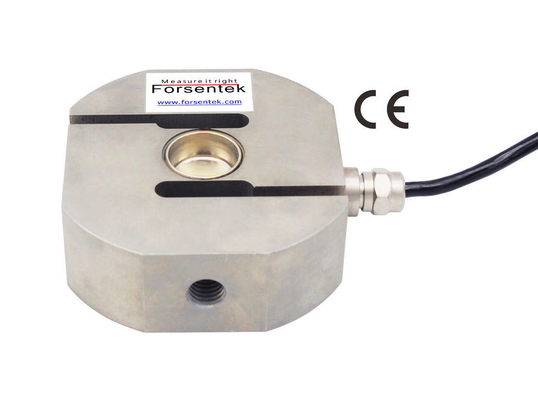

High Accuracy Compression And Traction Force Sensor FSRT is a compact stainless steel load cell suitable for both traction and compression force measurement. S Type Traction Compression Load Cell FSRT offers 0-500kg / 0-1000kg / 0-2000kg / 0-3000kg / 0-4000kg / 0-5000kg / 0-6000kg / 0-7500kg eight measuring ranges to choose from. Unified 2.0mV/V output, high accuracy with 0.02% combined error of the rated capacity.Ideal for harsh environments, it’s fully welded stainless steel and sealed to IP68. Suitable for asphalt, concrete, and aggregate batching plants. Other popular uses include power line tensioning, underground cable pulling and hanging tanks, hopper scales.
A force sensor is used to determine force: The force exerted by the sample is converted into an electrical signal by the force transducer. Force sensors are therefore the most important components of an force measuring/control device. One of the most widely used technologies is based on strain gauge technology: an analog force sensor consists of a measuring element (so-called spring body) made of steel or aluminum, on which strain gauges (Wheatstone bridge) are mounted, strain gauges are electrical resistors that change their resistance while loaded, these resistance change leads to the change of output signal, the force then can be measured and evaluated by measuring the output signal from the wheatstone bridge.Compression And Traction Force Sensor FSRT is designed to measure both tension and compression force,outputs millivolt signal ranging -30mV...+30mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.The applied force can be displayed through a force indicator,force indicator FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
Ordering code: FSRT-0.5t, FSRT-1t, FSRT-2t, FSRT-3t, FSRT-4t, FSRT-5t, FSRT-6t, FSRT-7.5t

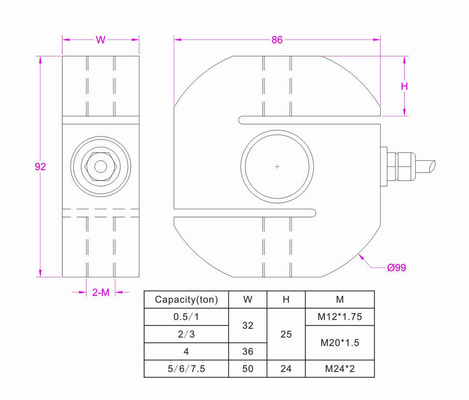

Specifications
| Rated Capacity |
5kN / 10kN / 20kN / 30kN / 40kN / 50kN / 60kN / 75kN |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.017% of rated capacity |
| Hysteresis | ±0.017% of rated capacity |
| Nonrepeatability | ±0.01% of rated capacity |
| Creep(30min) | ±0.017% of rated capacity |
| Safe overload | 150% of rated capacity |
| Ultimate overload | 300% of rated capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -35...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 350±5 ohms |
| Output resistance | 350±3 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable |
500kg---Ø5*3000mm 1000kg~7500kg---Ø5*6000mm 4-core shielded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- |
