50N Pull Force Sensor 100N Pull Load Cell 200N Pull Force Transducer

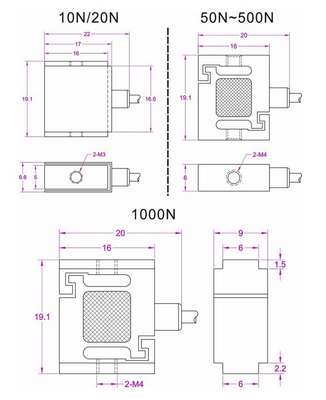

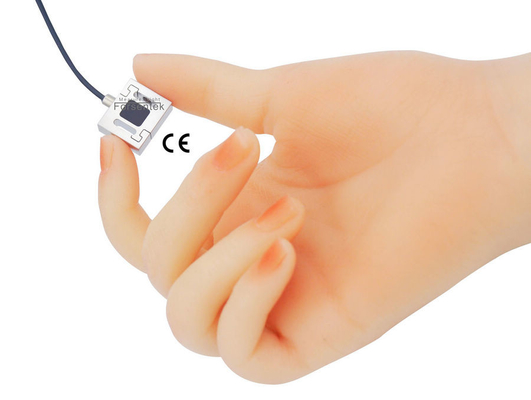

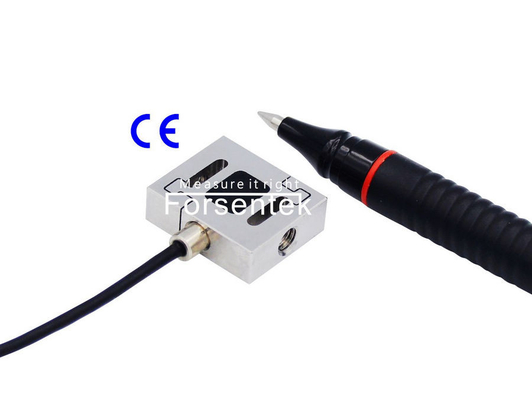

Miniature Pull Force Sensorl FSSM offers a compact design for a variety of applications. the S Beam Pull Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of full scale,the compact design enables Micro Push And Pull Load Cell FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The compression and traction sensor features threaded holes on two sides for the mounting of attachments or implements,this micro pull force sensor can be used for both tension and compression force measurement in applications with limited space.You may find junior S beam pull force transducer FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.
Ordering code: FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N, FSSM-200N, FSSM-300N, FSSM-500N, FSSM-1kN
A load cell is used to determine mass: The weight force exerted by the sample is converted into an electrical signal by the load cell. Load cells are therefore the most important components of an electronic scale. One of the most widely used technologies is based on strain gauge technology: an analog load cell consists of a measuring element (so-called spring body) made of steel or aluminum, on which strain gauges (Wheatstone bridge) are mounted, strain gauges are electrical resistors that change their resistance while loaded, these resistance change leads to the change of output signal, the load/weight then can be measured and evaluated by measuring the output signal from the wheatstone bridge.
Miniature Push And Pull Force Transducer FSSM outputs mV signal from the full wheatstone bridge which is proportional to the applied load,a load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing, taking push and pull force transducer FSSM-50N and FSC(-5-5V)-24V for example,the load-voltage relationship will be 0-50N push force VS 0-5V output, 0-50N pull force VS 0-(-5V) output,which is linear regardless of the measurement error.
Specifications
| Rated Capacity |
2.2lb / 4.4lb / 10lb / 20lb / 45lb / 67lbf / 110lb / 220lbs 10N / 20N / 50N / 100N / 200N / 300N / 500N / 1000N |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of rated capacity |
| Hysteresis | ±0.1% of rated capacity |
| Nonrepeatability | ±0.05% of rated capacity |
| Creep(5min) | ±0.1% of rated capacity |
| Safe overload | 150% of rated capacity |
| Ultimate overload | 200% of rated capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection |
10/20N: IP50 50N~1kN: IP62 |
| Material of element | Stainless steel |
| Cable | Ø2*4000mm 4-core shielded |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
