Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FSSM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2715pcs/month
Detailed Product Description
Type: Traction Force Transducer Capacity: 10N 20N 50N 100N 200N 500N
Usage: Force Measurement Force Direction: Traction And Compression
Output: Analog Force Sensor Threaded Hole: M3/M4

50N Traction Force Transducer 100N Traction Force Sensor 200N Force Measurement

Miniature Compression And Traction Force Transducer FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of full scale,the compact design enables Compact Traction Force Sensor FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The compression and traction sensor features threaded holes on two sides for the mounting of attachments or implements,this micro pull force sensor can be used for both tension and compression force measurement in applications with limited space.You may find Compression Traction Load Cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.

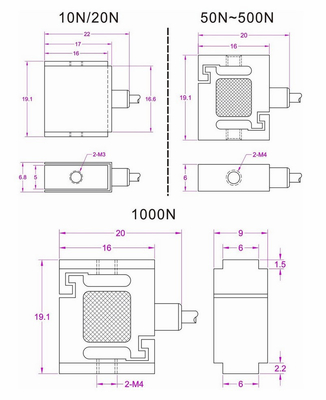

Traction_Force_Transducer_50NTraction_Force_Transducer_100N

Ordering code: FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N, FSSM-200N, FSSM-300N, FSSM-500N, FSSM-1kN

A load cell is used to determine mass: The weight force exerted by the sample is converted into an electrical signal by the load cell. Load cells are therefore the most important components of an electronic scale. One of the most widely used technologies is based on strain gauge technology: an analog load cell consists of a measuring element (so-called spring body) made of steel or aluminum, on which strain gauges (Wheatstone bridge) are mounted, strain gauges are electrical resistors that change their resistance while loaded, these resistance change leads to the change of output signal, the load/weight then can be measured and evaluated by measuring the output signal from the wheatstone bridge.

Miniature Compression And Traction Load Cell FSSM outputs mV signal from the full wheatstone bridge which is proportional to the applied load,a load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing, taking FSSM-100N and FSC(-10-10V)-24V for example,the load-voltage relationship will be 0-100N compression force VS 0-10V output, 0-100N traction force VS 0-(-10V) output.

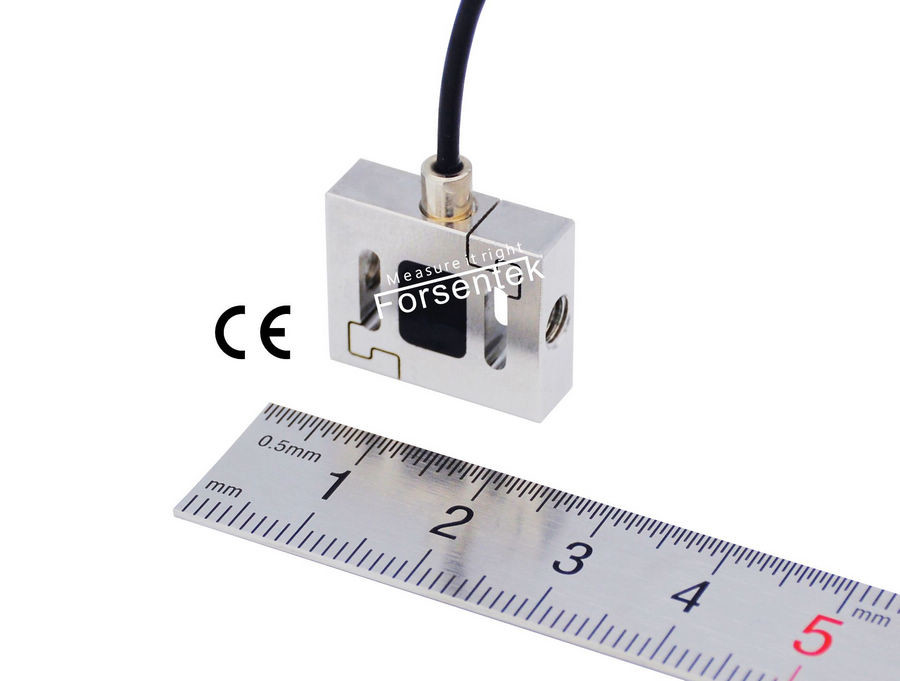

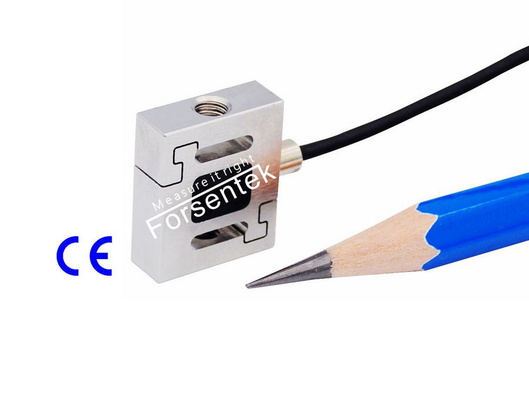

Traction_Force_Transducer_200NTraction_Force_Sensor_50N

Specifications

Rated Capacity

2.2lb / 4.4lb / 10lb / 20lb / 45lb / 67lbf / 110lb / 220lbs

10N / 20N / 50N / 100N / 200N / 300N / 500N / 1000N
1kg / 2kg / 5kg / 10kg / 20kg / 30kg / 50kg / 100kg

Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.1% of rated capacity
Hysteresis ±0.1% of rated capacity
Nonrepeatability ±0.05% of rated capacity
Creep(5min) ±0.1% of rated capacity
Safe overload 150% of rated capacity
Ultimate overload 200% of rated capacity
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection

10/20N: IP50

50N~1kN: IP62

Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-



Click here to download datasheet
