| Type: | Compression Traction Force Sensor | Capacity: | 2000N 1000N 500N |
|---|---|---|---|
| Usage: | Force Measurement | Load Direction: | Traction And Compression |
| Output: | Analog Force Transducer | Connection: | M8 Threaded Hole |
500N Compression Traction Force Sensor 1kN Traction Load Cell 2kN

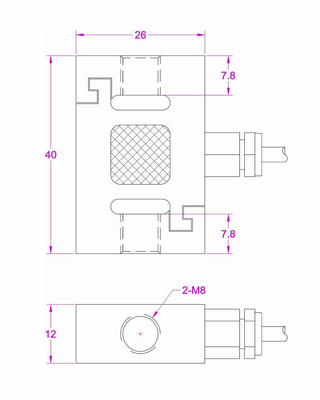

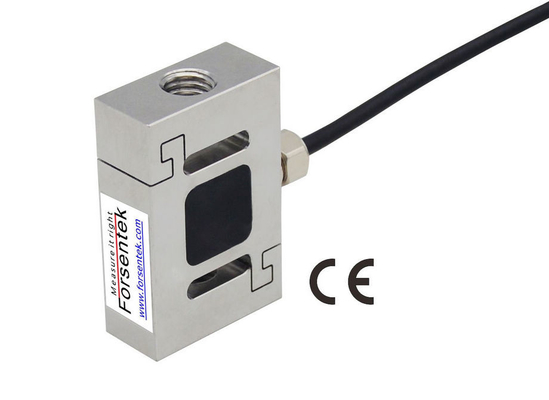

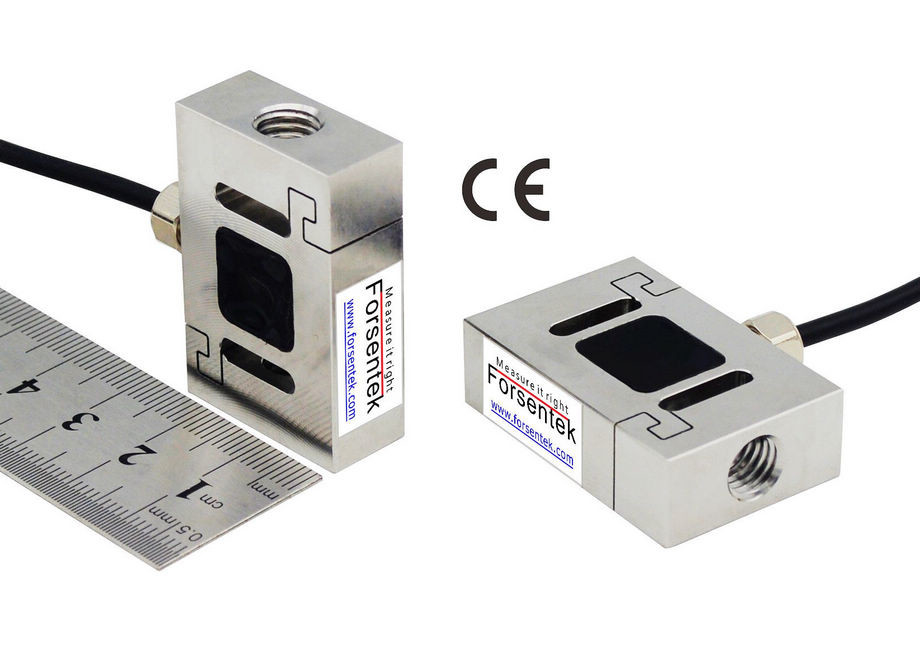

M8 Threaded Compression And Traction Force Sensor FSSG offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features.The miniature s-beam traction force load cell FSSG utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity of the rated output,the compact design enables the traction force transducer FSSG to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment. The Traction Load Cell FSSG features M8 threaded holes on two sides for the mounting of attachments or implements, this micro force sensor can be used for both tension and compression force measurement in applications with limited space. Small size traction compression load cell FSSG is widely used for force gauges, tension meters, switch insertion force measurement, keyboard testing, spring testing, syringe testing, touchpad testing, cylinder thrust measurement and so on. small tension force load cell FSSG offers 0-500N / 0-1kN / 0-2kN three rated measuring ranges to choose from, besides the standard specifications, miniature push pull load cell FSSG can also be modified or customized according to clients' requirements.
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the mV/V output signal from the wheatstone bridge of the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of compression traction force transducer FSSG is normally around 2.0mV/V.
Power supply of push pull load cell FSSG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of compression and traction force sensor FSSG is normally within -30mV...+30mV for push and pull force measurement.
Example Miniature S type traction load cell FSSG-2kN with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Compression And Traction Load Cell FSSG-1kN working with -10-10 amplifier,the Force-Voltage relationship will be 0-1000N compression load VS 0-10V output, 0-1000N traction force VS 0-(-10V) output.
Specifications
| Rated Capacity |
500N / 1000N / 2000N |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% of rated caapcity |
| Hysteresis | ±0.2% of rated caapcity |
| Nonrepeatability | ±0.1% of rated caapcity |
| Creep(5min) | ±0.05% of rated caapcity |
| Safe overload | 150% of rated caapcity |
| Ultimate overload | 200% of rated caapcity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% of R.O./oC |
| Temperature shift span | ±0.02% of R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 355±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
Ordering code: FSSG-500N, FSSG-1kN, FSSG-2kN
