| Type: | Miniature Load Cell Traction Compression | Capacity: | 50N 100N 200N 500N 1kN 2kN |
|---|---|---|---|
| Structure: | S-Beam Force Sensor | Usage: | Force Measurement |
| Output: | Analog Force Transducer | Connection: | M8 Threaded Hole |
1kN Traction Load Cell 500N Pull Force Sensor 200N Tension Measurement 100N

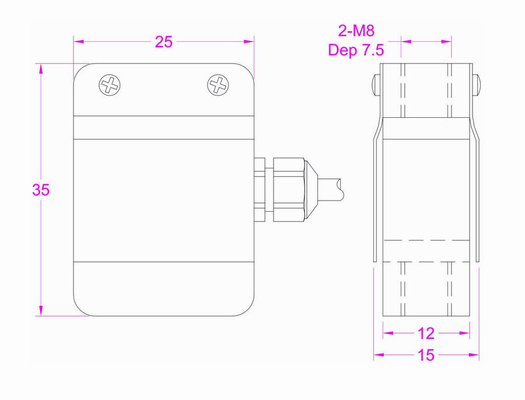

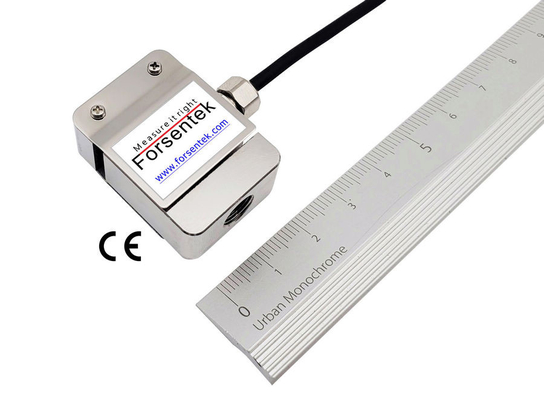

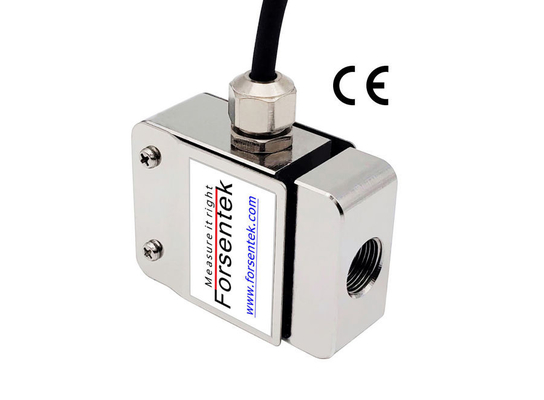

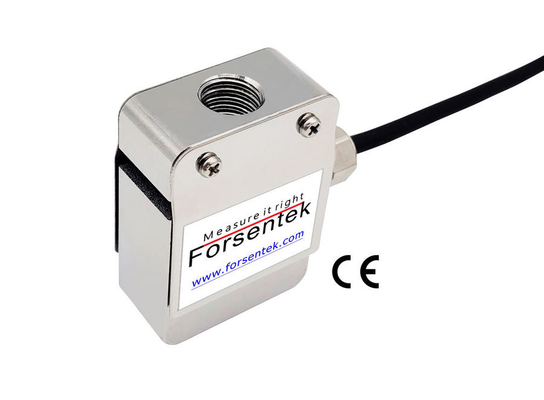

Miniature Compression And Traction Load Cell FSKE is made of stainless steel based on metal foil strain gauge technology intended for both traction and compression force measurement. Compression Traction Force Sensor FSKE offers 50N / 100N / 200N / 500N / 1000N / 2000N six rated capacities with maximum 0.1% non-linearity of the full scale. M8 threaded holes located on both ends can be used to mount attachments like load button, eye bolts, hooks to fit different applications. Compact design makes force transducer FSKE a perfect option for force measurement applications with limited mounting space,you may find miniature traction force transducer FSKE applicable for spring tension test, mechanical simulation experiment, automation equipment, push-pull force gauge,and so on.Model FSKE can also be modified or customized as per request.
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Compression Traction Force Sensor FSKE is around 2.0mV/V.
Power supply of Push Pull Force Transducer FSKE is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Traction Load Cell FSKE is normally within -30mV...+30mV.
Example: Compression And Traction Force Sensor FSKE-200N with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Push Pull Force Load Cell FSKE-500N working with -5-5V amplifier,the Force-Voltage relationship will be 0-500N compression force VS 0-5V output, 0-500N traction force VS 0-(-5V) output.
Specifications
| Rated Capacity |
50N / 100N / 200N / 500N / 1000N / 2000N |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% of rated capacity |
| Hysteresis | ±0.1% of rated capacity |
| Nonrepeatability | ±0.05% of rated capacity |
| Creep(5min) | ±0.05% of rated capacity |
| Safe overload | 150% of rated capacity |
| Ultimate overload | 200% of rated capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% of R.O./oC |
| Temperature shift span | ±0.02% of R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
Ordering code: FSKE-50N, FSKE-100N, FSKE-200N, FSKE-500N, FSKE-1kN, FSKE-2kN
