Detailed Product Description
Type: Miniature Traction Load Cell Capacity: 1kg 2kg 5kg 10kg 20kg 50kg 100kg
Force Direction: Traction And Compression Output: Analog Sensor
Usage: Force Measurement Threaded Hole: M3/M4

5kg Traction Load Cell 10kg Miniature Load Cell Traction Compression

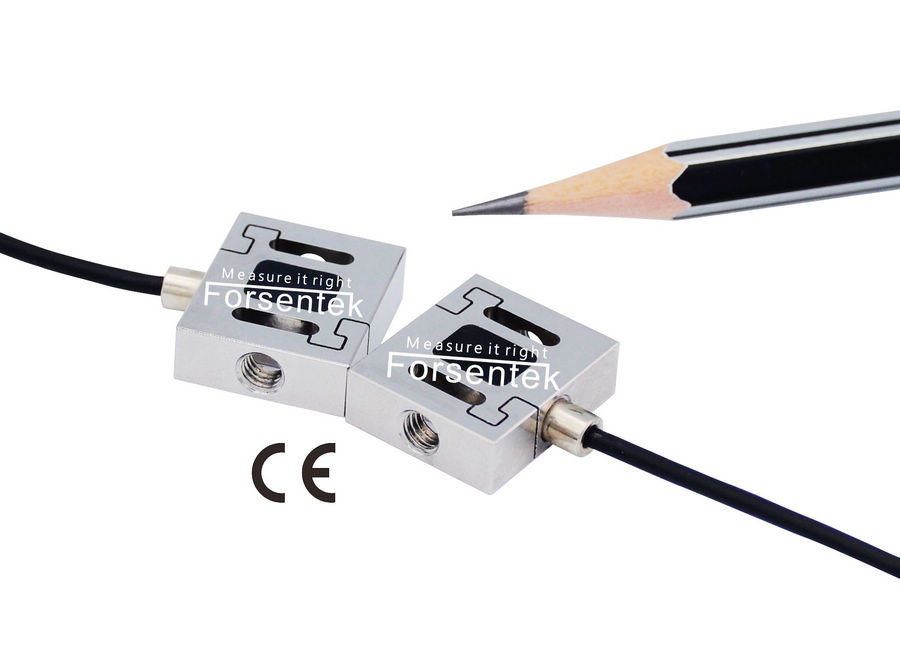

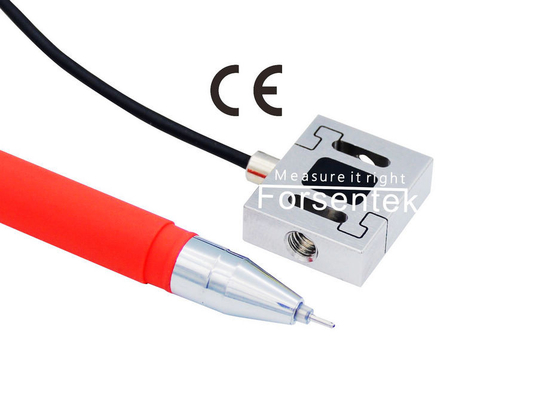

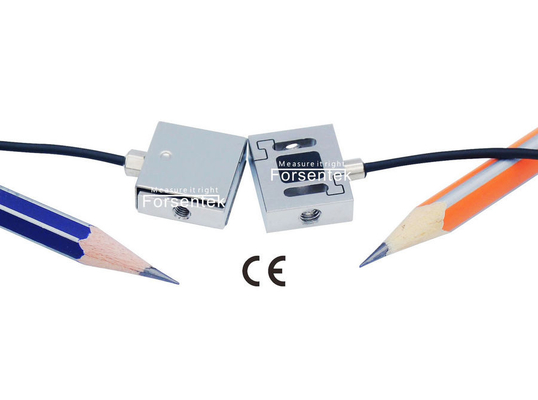

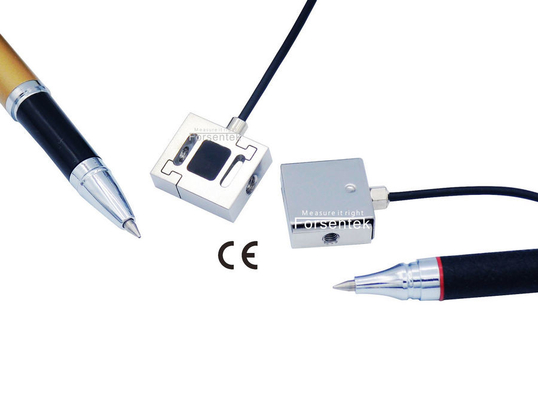

Miniature Compression Traction Load Cell FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of full scale,the compact design enables Micro Force Sensor FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited space.You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200, Mark Miniature Force Sensors Series R04, flintec s-beam force sensor ISA, flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.

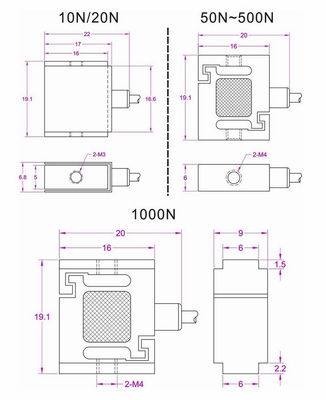

Miniature_Traction_Load_Cell_5kgMiniature_Traction_Load_Cell_10kg

A load cell is used to determine mass: The weight force exerted by the sample is converted into an electrical signal by the load cell. Load cells are therefore the most important components of an electronic scale. One of the most widely used technologies is based on strain gauge technology: an analog load cell consists of a measuring element (so-called spring body) made of steel or aluminum, on which strain gauges (Wheatstone bridge) are mounted, strain gauges are electrical resistors that change their resistance while loaded, these resistance change leads to the change of output signal, the load/weight then can be measured and evaluated by measuring the output signal from the wheatstone bridge.

Miniature Compression Traction Load Cell FSSM outputs mV signal from the full wheatstone bridge which is proportional to the applied load,a load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSSM-50N and FSC(-10-10V)-24V for example,the load-voltage relationship will be 0-50N compression load VS 0-10V output, 0-50N traction load VS 0-(-10V) output.

Compression_Traction_Load_Cell_5kgCompression_Traction_Load_Cell_10kg

Ordering code: FSSM-10N,   FSSM-20N,   FSSM-50N,   FSSM-100N,   FSSM-200N,   FSSM-300N,   FSSM-500N,   FSSM-1kN
Specifications

Capacity 10N / 20N / 50N / 100N / 200N / 300N / 500N / 1000N
1kg / 2kg / 5kg / 10kg / 20kg / 30kg / 50kg / 100kg
2.2lb / 4.4lb / 10lb / 20lb / 45lb / 67lbf / 110lb / 220lbs
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection

10/20N: IP50

50N~1kN: IP62

Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+  Black--Excitation-

Green--Signal+  White--Signal-



Click here to download datasheet
