Detailed Product Description
Usage: Weight Measurement Type: Small Single Point Load Cell
Output: 0-30mV Capacity: 1lb 2lb 5lb 10 Lb 20lb 30lb 40lb
Feature: Off Center Load Sensor

Small Weight Transducer 5lb Load Cell Sensor 10lb Single Point Load Cell 20lb

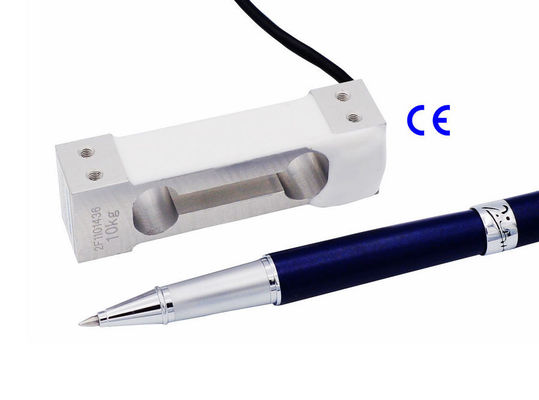

Small size Single Point Load Cell FH02 is made of aluminum alloy based on strain gauge technology.Weight transducer FH02 offers 1.1lb / 2.2lb / 4.4lb / 6.6lb / 11lb / 13lb / 22lb / 33lb / 44lb nine rated capacities to choose from. Weight Sensor FH02 is temperature compensated to deliver stable readout throughout the working temperature range. Single point load cell transducer FH02 is corner trimmed for platform sizes up to 120x120mm, suitable for off-center load measurement.Beam loadcell FH02 is widely used for bench scales, weight monitoring laboratory equipment, home appliances, dosing machines and other weighing applications. Custom made service is available at Forsentek if the current specifications are not applicable.

20lb load cell 10lb
Dimensions
20lb single point load cell 10lb
Specifications

Rated capacity

0.5kg / 5N / 1.1 lb

1kg / 10N / 2.2 lbf

2kg / 20N / 4.4 lb

3kg / 30N / 6.6 lbf

5kg / 50N / 11 lbs

6kg / 60N / 13 lbf

10kg / 100N / 22 lb

15kg / 150N / 33 lbf

20kg / 200N / 44 lbs

Rated output

0.5kg @ 1.0mV/V
1kg-20kg @ 2.0mV/V

Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.02% R.O.
Hysteresis ±0.02% R.O.
Nonrepeatability ±0.02% R.O.
Creep(5min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature 0...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 410±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø3*400mm
Wiring code Red--Exc+ Black--Exc-
Green--Sig+ White--Sig-


A load sensor is a transducer that converts mechanical force into electrical signal which is proportional to the weight(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the load cell which is normally within 0-30mV.Overloading is the most common cause of loadcell failure, a load cell is just like a spring in certain aspects, which will be damaged if overstretched. A machanical stop(refer to below picture) can be used to protect the sensor from excessive deformation. The gap distance can be determined by loading the sensor with rated capacity,then adjust the meachnical stop to reach the bottom of the transducer.In most cases,the load cell will be used to measure load at 30-60% of the full scale,thus the gap distance can also be adjusted using reference load a little higher than the target load to be measured instead of the rated capacity.

load cell with overload protection

Small Weight Transducer 20 lb Load Cell Sensor 10lb Single Point Load Cell 5lb

5lb weight sensor 10lb

Click here to download datasheet
