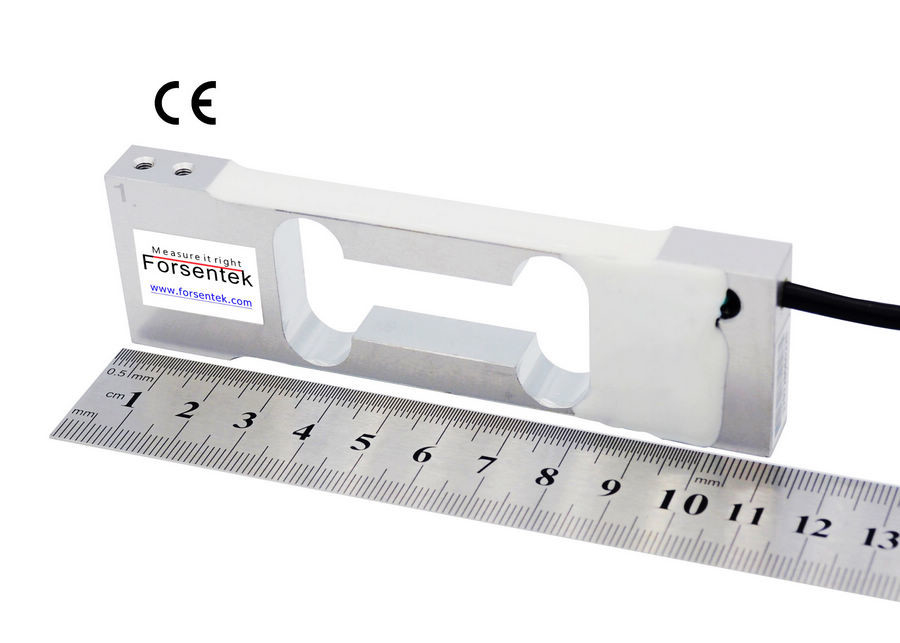

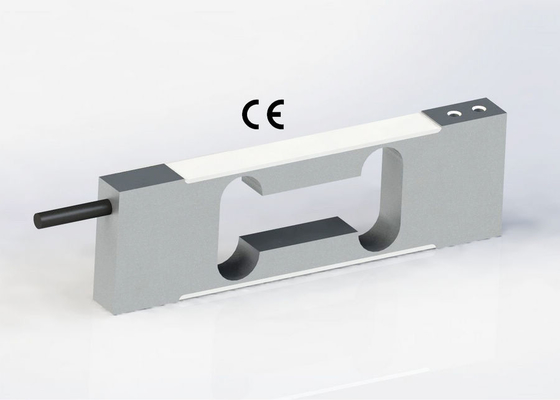

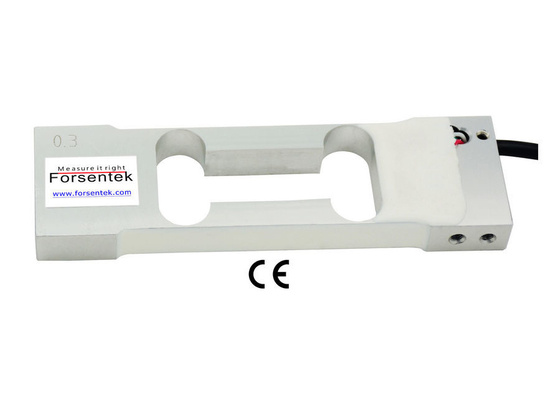

High Accuracy Single Point Load Cell 300g 600g 1kg 3kg Weight Transducer

Precision Low Range Single Point Load Cell FNA is a strain gauge based weight sensor which offers 0-300g / 0-600g / 0-1000g / 0-1500g / 0-3000g five measuring ranges to choose from. High accuracy weighing sensor FNA delivers maximum 0.02% non-linearity of the full capacity. Low capacity load cell FNA is corner trimmed for platform sizes up to 150x150mm which makes it suitable for off-center load measurement. Weight Transducer FNA delivers stable performance within the declared working temperature range thanks to its temperature compensation process. You may find Weighing Sensor FNA suitable for applications such as weighing balance, packaging machines, counting scales, feeding machines and so on.

weight sensor 300g 600g 1000g

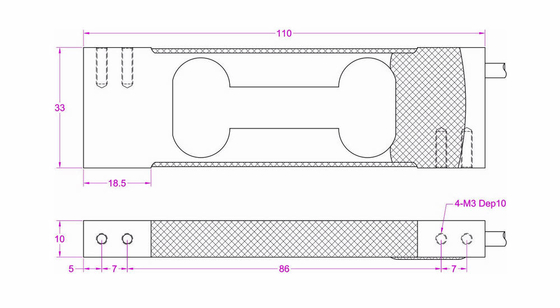

Dimensions

load cell transducer 1000g 500g 300g

Specifications

Capacity

300g / 3N / 0.66lb

600g / 6N / 1.32 lb

1000g / 10N / 2.2lb

1.5kg / 15N / 3.3 lb

3kg / 30N / 6.6 lb

Rated output 1.0±10%mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.02% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.015% R.O.
Creep(30min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 405±10 ohms
Output resistance 350±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*250mm(Longer cable available)
Wiring code

Red--Exc+ Black--Exc-

Green--Sig+ White--Sig-



A weight sensor is a transducer that converts mechanical load into electrical signal which is proportional to the load being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the load cell which is normally within 0-30mV for low range load cell FNA. Overloading is the most common cause of loadcell failure, a load sensor is just like a spring in certain aspects, which will be damaged if overstretched or overloaded. A machanical stop(refer to below picture) can be used to protect the sensor from excessive deformation. The deformation gap can be determined by loading the sensor with rated capacity, then adjust the meachnical stop to reach the bottom of the transducer. In most cases, the load cell will be used to measure load at 40-80% of the full capacity, thus the deformation gap can be adjusted using reference load a bit higher than the target load to be measured instead of the rated capacity.
