| Usage: | Force Measurement | Type: | Micro Press Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 1kg 2kg 5kg 10kg 20kg |
| Load Direction: | Compression | Mounting: | Flange To Flange |

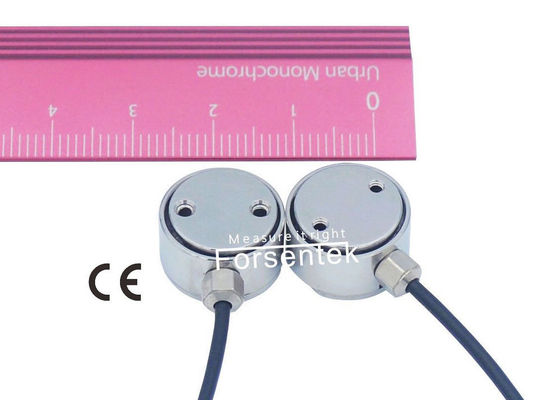

Miniature Flange-to-Flange Load Cell 1kg 2kg 5kg 10kg 20kg Compression Weight Sensor
Miniature size Flange Type Compression Load Cell FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity. Miniature Flange Load Cell FCFK offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg five measuring ranges to choose from, flange to flange mounting,compact design, you may find micro force transducer FCFK applicable for compression force measurement applications where mounting space is limited, such as mold clamping force measurement, assembly force monitoring, force distribution test,etc..Model FCFK can be modified or customized as per client's request.
Dimensions(in milimeter)
| Ordering code | Measurement Range | Force direction |
| FCFK-10N | 0-10N / 0-2.2lb | Compression |
| FCFK-20N | 0-20N / 0-4.4lb | |
| FCFK-50N | 0-50N / 0-0-10lb | |
| FCFK-100N | 0-100N / 0-20lb | |
| FCFK-200N | 0-200N / 0-45lb |
Specifications
| Capacity |
10N / 1kg / 2.2lb 20N / 2kg / 4.4lbs 50N / 5kg / 11lb 100N / 10kg / 22lbf 200N / 20kg / 44lb |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 385±50 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: Micro Force Sensor FCFK-100N with 2.0mV/V sensitivity powered by 3.3V DC,the output range is 0...+6.6mV.
Example two: Miniature Load Cell FCFK-50N with 2.0mV/V sensitivity powered by 5V DC,the output range is 0...+10mV.
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: FCFK-200N working with amplifier FSC(0-10V)-24V, the Force-Voltage relationship will be 0-200N compression force VS 0-10V output, 1V voltage corresponds to 20N load, 2V voltage corresponds to 40N force,and so on.
Miniature Flange Type Load Cell 10N 20N 50N 100N 200N Compression Force Transducer
