Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell

Good quality 3 axis force sensor for sales
Good quality 3 axis force sensor for sales
I'm Online Chat Now

Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell

China Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell supplier
Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell supplier Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell supplier Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell supplier Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell supplier Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell supplier

Large Image :  Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FSSQ

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3360pcs/month
Contact Now
Detailed Product Description
Usage: Force Measurement Type: Miniature Tension Load Cell
Output: Analog Sensor Capacity: 1kg 2kg 5kg 10kg 20kg
Force Measurement Direction: Tension And Compression Threaded Hole: M2

Micro Tension Load Cell 1kg 2kg 5kg 10kg 20kg Miniature jr S-beam Load Cell

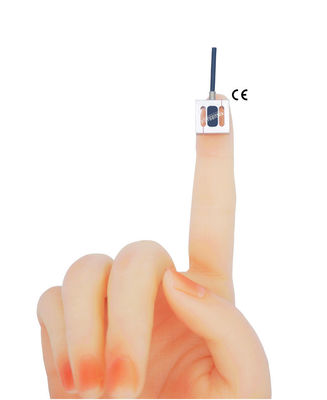

Miniature Tension Load Cell FSSQ offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and 5 capacity ranges 1kg / 2kg / 5kg / 10kg / 20kg to choose from.The jr s-beam load cell FSSQ utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity,the compact design enables the FSSQ to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The Micro Force Sensor FSSQ features M2 threaded holes on two sides for the mounting of attachments or implements for both tension and compression force measurement in applications with limited space.

miniature tension load cell 5kg 10kg 20kg



Dimensions(unit in "mm")

smallest force transducer 50N 100N 200N

Specifications

Capacity

10N / 1kg / 2.2 lbf
20N / 2kg / 4.4 lbf
50N / 5kg / 11 lb
100N / 10kg / 22 lbf
200N / 20kg / 45 lbs

Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 352±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*3000mm 4-core shielded
Wiring code

Compression@
Red--Exc+ Black--Exc- Green--Sig+ White--Sig-



Wheatstone Bridge:A Wheatstone bridge is a network of four resistive legs. One or more of these legs can be active sensing elements. The Wheatstone bridge is the electrical equivalent of two parallel voltage divider circuits. R1 and R2 compose one voltage divider circuit, and R4 and R3 compose the second voltage divider circuit. The output of a Wheatstone bridge is measured between the middle nodes of the two voltage dividers.

Rated Capacity: The maximum axial load the load cell is designed to measure within its specifications.

Non-linearity: The maximum deviation of the calibration curve from a straight line drawn between the no-load and rated outputs; expressed as a percentage of the rated output and measured on increasing load only.

Non-repeatability: The maximum difference between load cell output readings for repeated loadings under identical loading and environmental conditions.

Miniature Tension Load Cell FSSQ outputs mV signal from the full wheatstone bridge which is proportional to the applied load,a load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSSQ-100N and FSC(-5-5V)-24V for example,the load-voltage relationship will be 0-100N compression load VS 0-5V output, 0-100N tension load VS 0-(-5V) output, 2V voltage corresponds to 40N compression load, -1V voltage corresponds to 20N tension force,and so on.

Micro Tension Force Sensor 10N 20N 50N 100N 200N Miniature jr S-beam Load Cell

miniature jr s beam load cell 50N 100N 200N

Click here to download datasheet
