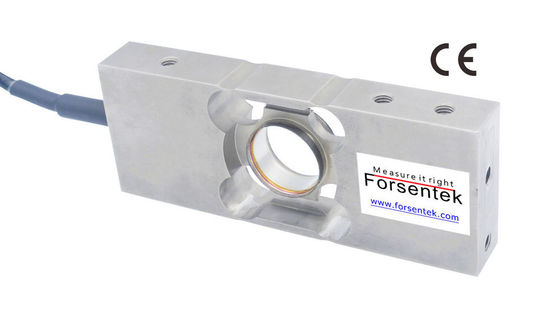

Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor

Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor

Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor
Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor

Large Image :  Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FHPS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3615pcs/month
Detailed Product Description
Material: Stainless Steel Type: Single Point Load Cell
Output: 0-30mV Capacity: 6kg 12kg 15kg 30kg 60kg
Waterproof: IP68 Feature: Dynamic Weighing Sensor

Stainless Steel Weight Transducer 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Sensor

High Accuracy Load Cell FHPS is made of stainless steel based on strain gauge technology,it offers 6kg / 12kg / 15kg / 30kg / 60kg five rated capacities to choose from. High accuracy with maximum 0.017% non-linearity of the full scale.Corner trimmed for platform sizes up to 350x350mm,suitable for off-center load measurement. Laser welded with IP68 ingress protection, weight sensor FHPS is temperature compensated to deliver stable and accurate measuring results over long term even in harsh conditions,dynamic load cell FHPS is ideally suited for use in the chemical industry, food industry, pharmaceutical industry, bagging, filling and dosing machines,checkweighers,etc..You may find model FHPS interchangeable with Anyload 651HS, VPG Revere HPSM, Zemic BM6A, sensortronics paltform load cell 60064, ptglobal PTSSP6-AW, Scaime AK 60, Siemens SIWAREX WL260 SP-S SB with lower cost without compromising the quality.

high accuracy dynamic load cell 6kg 12kg 15kg 30kg 60kg

Dimensions(in milimeter)

stainless steel load cell high accuracy

Specifications

Capacity

6kg 12kg 15kg 30kg 60kg

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.03mV/V
Nonlinearity ±0.017% R.O.
Hysteresis ±0.017% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.017% R.O.
Safe overload 150% F.S.
Ultimate overload 250% F.S.
Compensated temperature -10...+40oC
Operating temperature -35...+65oC
Temperature shift zero ±0.015% R.O./10oC
Temperature shift span ±0.015% R.O./10oC
Input resistance 400±20 ohms
Output resistance 352±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable Ø5.5*6000mm 6-core shielded
Wiring code

Green--Exc+ Black--Exc-

Yellow--Sen+ Blue--Sen-

White--Sig+ Red--Sig-



A Load Cell is a transducer that converts mechanical load into electrical signal which is proportional to the load being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the load cell which is normally within 0-30mV for model FHPS. Overloading is the most common cause of loadcell failure, a load sensor is just like a spring in certain aspects, which will be damaged if overstretched or overloaded, so prevent the transducer from deforming too much is the important part. A machanical stop to prevent excessive deformation of the sensor body can be used for overloading protection. The deformation distance can be determined by loading the sensor with rated capacity, then adjust the meachnical stop to reach the bottom of the transducer. In most cases, the load transducer will be used to measure load at 40-80% of the full scale, thus the deformation distance can be adjusted using reference load which is a bit higher than the maximum load to be measured instead of the rated capacity.

load cell with overload protection

High accuracy weight sensor 6kg 12kg 15kg 30kg 60kg Dynamic Load Cell Transducer

high accuracy weight sensor 6kg 12kg 15kg 30kg 60kg

Click here to download datasheet
