Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm

Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm

Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm
Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm

Large Image :  Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FT03
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1820pcs/month
Detailed Product Description
Usage: Torque Measurement Type: Reaction Torque Transducer
Output: Analog Sensor Capacity: 200NM~100kNM
Connection: Flange-to-flange Structure: Hollow Flanged

Flange-to-Flange Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm 3kN*m 2kN-m

High Capacity Flange Type Reaction Torque Transducer FT03 is made of high stiffness alloy steel based on strain gauge technology,torque transducer FT03 delivers mV/V signal from wheatstone bridge bonded on a specially machined body. Flange to flange design makes it easy to mount FT03 to existing strutures. High capacity reaction torque sensor FT03 is available in a very wide measuring range from 200NM up to 100kNm,you may find torque load cell FT03 suitable for applications such as motor torque measurement, test bench applications, screw driver calibration, fatigue testing, twist measurement, motor dynamometers, actuator test as so on. Flange torque transducer FT03 can be modified or customized to meet requirements of different applications.
high capacity reaction torque sensor

Specifications

Capacity

200N*m / 20kg*m / 1.77klb*in

300Nm / 30 kgf*m / 2.66k lb*in

500N*m / 50kgf*m / 4.4klbf-in

1000Nm / 100kg*m / 8.85klb-in

2000N*m / 200 kgf*m / 17.7klbf*in

3000N-m / 300kg-m / 26.5klb*in
5000Nm / 500kgf-m / 44klbf*in

10kN*m / 1000kg*m / 88.5klb*in

20kNm / 2000 kg*m / 177klbf*in

30kN-m / 3000 kgf*m / 265klb*in

40kN*m / 4000kg*m / 354klbf-in
50kN*m / 5000kgf*m / 442klb-in

60kNm / 6000kg-m / 531klb*in

70kN-m / 7000kg-m / 620klb-in

80kN-m / 8000kg*m / 708klbf*in

100kN*m / 10000kgf*m / 885klb*in

Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity

200NM~10kNM: ±0.25% R.O.
20k~100kNM: ±0.5% R.O.

Hysteresis

200NM~10kNM: ±0.25% R.O.

20k~100kNM: ±0.5% R.O.

Nonrepeatability

200NM~10kNM: ±0.1% R.O.

20k~100kNM: ±0.2% R.O.

Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 700±100 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Alloy steel
Cable Ø5*3000mm 4-core shielded
Wiring code

Clockwise@

Red--E+   Black--E-   Green--S+   White--S-



A Reaction Torque Sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of FT03 is normally within -25mV...+25mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.Taking FT03-10kN*m and FSC(-10-10V)-24V for example,the torque-voltage relationship will be 0-10kNm in CW direction VS 0-10V output, 0-10kN*m in CCW direction VS 0-(-10V) output.

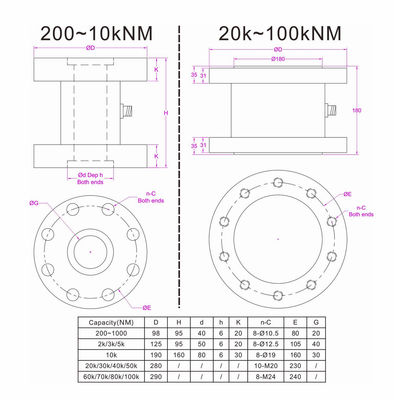

Flange Type Reaction Torque Sensor 100kN*m 50kN-m 30kN*m 20kNm 10kN*m 5kNm 3kN*m 2kN*m
flange torque sensor 100kN*m 50kN-m 30kN*m 20kN-m 10kN*m

Click here to download datasheet
