Usage: Torque Measurement Type: Stationary Torque Transducer
Output: Analog Sensor Mounting: Flange To Flange
Measuring Range: 0-100N*m(Selectable)

Flange-to-Flange Reaction Torque Sensor 100Nm 50N-m 30N*m 20N*m 10N-m 5Nm 2N*m 1N-m

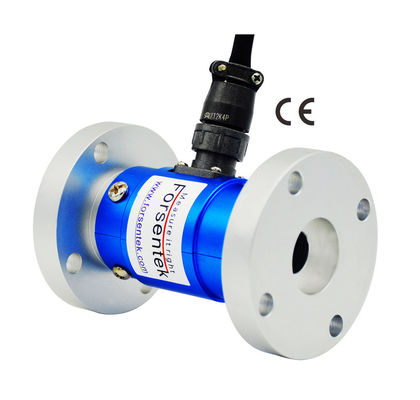

Flange-to-flange reaction torque transducer is strain gague based with mV/V output intended for non-rotating torque measurement,torque meter FTA offers 0.2N*m / 0.5N*m / 1N*m / 2N-m / 3N*m / 5N*m / 10N*m / 20N*m / 30N-m / 50N*m / 100N*m eleven rated capacities to choose from.0.2NM-30Nm versions are made of aluminum while 50-100NM version are made of alloy steel.4-6.5 thru holes located on both ends of the torque cell can be used for bolting between shafts,switches or mounting plates.Torque load cell FTA has no moving parts which makes it very durable and suitable for industrial environments,it’s applicable for torque measurement in both clockwise and anticlockwise direction. Flange Torque Sensor FTA can also be used for rotating torque measurement under certain configuration. Disconnectable cable with mating connector is included,each torque meter will come with a calibration certificate to guarantee the performance and quality.Typical applications for this type of torque meter are for example motor torque measurement,test bench applications,screw driver calibration,twist measurement and so on.Reaction torque sensor FTA can be modified or customized as per request.

flange type reaction torque sensor 100N*m 50N-m 30N-m 20N*m 10N*m 5N*m 2N*m

Dimensions

flange-to-flange reaction torque sensor 100N*m 50N-m 30N*m 20N-m 10N*m

Specifications

Capacity

0.2N*m / 2kgf*cm / 0.15lbf*ft

0.5N-m / 5kg*cm / 0.37 lb*ft

1Nm / 10kg-cm / 0.74lb*ft

2N*m / 20kg*cm / 1.5 lb-ft

3N-m / 30kgf-cm / 2.2lb-ft

5N*m / 50kg*cm / 3.7lbf-ft

10N-m / 100kg-cm / 7.4 lbf*ft

20Nm / 200kgf*cm / 15 lb*ft

30N*m / 300kg*cm / 22lb*ft

50N-m / 500kg*cm / 37 lbf*ft

100N*m / 1000kgf*cm / 74 lb-ft

Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.02% R.O./oC
Input resistance 350(700) ohms
Output resistance 350(700) ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element

<50NM Aluminum

>30NM Alloy steel

Cable

Ø5*3000mm 4-core shielded cable

with mating connector

Wiring code

Clockwise@

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



A torque sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of flange-to-flange reaction torque meter FTA is normally within -20mV...+20mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.

flange to flange reaction torque transducer 0.2N*m 0.5N-m 1N*m 2Nm 5N*m 10N-m

Click here to download datasheet
