Miniature shaft to shaft reaction torque transducer small size torque sensor

Miniature shaft to shaft reaction torque transducer small size torque sensor

Miniature shaft to shaft reaction torque transducer small size torque sensor
Miniature shaft to shaft reaction torque transducer small size torque sensor Miniature shaft to shaft reaction torque transducer small size torque sensor Miniature shaft to shaft reaction torque transducer small size torque sensor

Large Image :  Miniature shaft to shaft reaction torque transducer small size torque sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FT05
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1560pcs/month
Detailed Product Description
Usage: Torque Measurement Sensor Type: Miniature Shaft Torque Sensor
Output: Analog Sensor Torque Measurement Direction: Clockwise&Counterclockwise
Capacity: 0.1NM 0.2NM 0.3NM 0.5NM 1NM 2NM 3NM 5NM

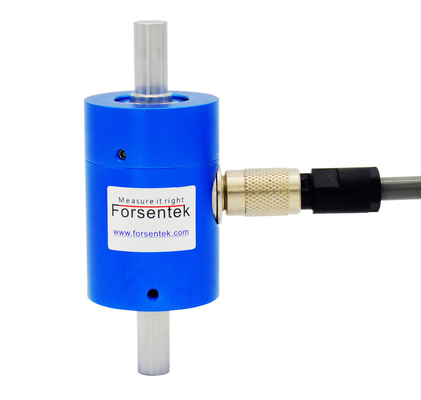

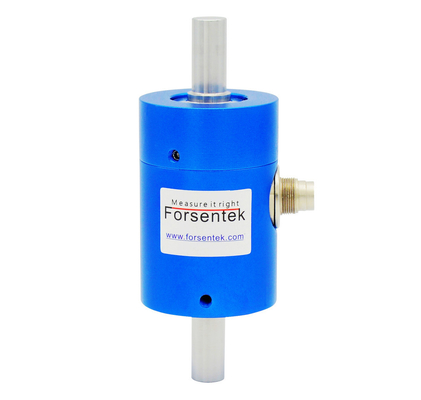

Miniature shaft to shaft reaction torque transducer small size torque sensor

Shaft to shaft miniature torque sensor FT05 utilizes metal foil strain gauges which are bonded on a special machined stainless steel body to deliver a maximum 0.2% non-linearity.Micro torque transducer FT05 offers 0.1Nm / 0.2Nm / 0.3Nm / 0.5Nm / 1Nm / 2Nm / 3Nm / 5Nm rated capacities for torque measurement in both clockwise and counterclockwise direction.Each sensor will include a 3m-long shielded cable with mating connector and an in-house calibration certificate to guarantee the sensor performance.Torque meter FT05 adopts shaft-to-shaft configuration which can be connected to drive devices through couplings,the shaft size can be modified or customized to meet mounting requirements of different applications.

miniature_shaft_reaction_torque_transducer

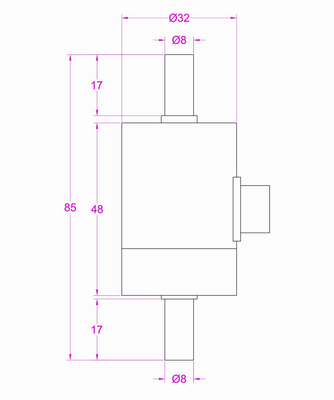

Dimensions(unit in milimeter)

Miniature shaft to shaft reaction torque transducer small size torque sensor

Specifications

Capacity

0.1N*m / 0.88 lb*in / 1kg*cm

0.2Nm / 1.77 in-lb / 2kgf*cm

0.3Nm / 2.65 lb-in / 3kg*cm

0.5N*m / 4.4 lb-in / 5kg-cm

1Nm / 8.8 in*lb / 10kgf*cm

2N-m / 17.7 lbf-in / 20kg-cm

3N*m / 26.5 lbf*in / 30kg*cm

5Nm / 44 in-lbf / 50kg*cm

Rated output 1.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



A torque sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of FT05 is normally within -15mV...+15mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.

Miniature shaft to shaft reaction torque transducer small size torque sensor

miniature_shaft_reaction_torque_sensor

Click here to download datasheet
