| Usage: | Weight Measurement | Type: | Miniature Weight Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 1kgf 2kgf 3kgf 5kgf 10kgf(10N 20N 30N 50N 100N) |
| Structure: | Small Beam Load Cell |
10N weight sensor 20N small load cell 50N load sensor 100N weight measurement

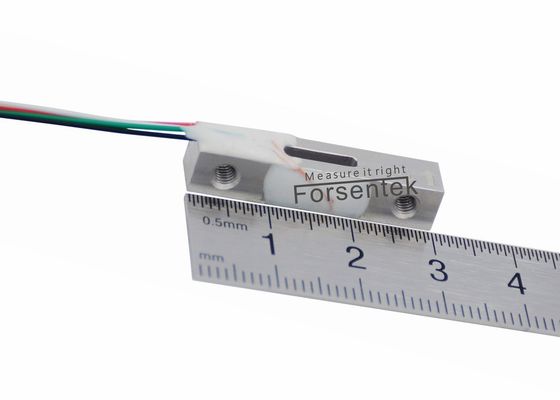

Small size weight sensor FMZS is a weight transducer that converts mechanical load into electrical signal proportional to the applied weight.The measured load or weight causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.This load cell can be connected with arduino board through 24-bit analog-to-digit converter HX711.You may find miniature load cell FMZS suitable for applications such as coffee machines weight measurement,vending machines weight monitoring,inventory management,etc..
Specifications
| Rated capacity |
1kg / 20N / 2.2 lbs 2kg / 20N /4.4 lbs 3kg / 30N / 6.6lbs 5kg / 50N / 11 lbs 10kg / 20N / 22 lbs |
| Rated output | 1.2 mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.05% of R.O. |
| Hysteresis | ±0.05% of R.O. |
| Nonrepeatability | ±0.05% of R.O. |
| Creep(3min) | ±0.05% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% of R.O./oC |
| Temperature shift span | ±0.02% of R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | 32AWG*85mm(Longer cable available) |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
10N weight sensor 20N small load cell 50N load sensor 100N weight measurement
Dimensions(in milimeter)
Ordering code:
FMZS-1kg FMZS-2kg FMZS-3kg FMZS-5kg FMZS-10kg
