| Theory: | Strain Gauge Load Cell With Built In Amplifier | Output: | 0-5V/0-10V/4-20mA |
|---|---|---|---|
| Capacity: | 5kg 10kg 20kg 30kg 40kg |
Load cell 0-10V output|Load cell 0-5V output with built in amplifier
Features
Specifications
| Capacity |
5kg 10kg 20kg 30kg 40kg |
| Rated output | 0-5V/0-10V/4-20mA |
| Excitation | 12V/24V DC |
| Zero balance | ±3% R.O. |
| Nonlinearity | ±0.25% R.O. |
| Hysteresis | ±0.25% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(3min) | ±0.05% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP60 |
| Material of element | Aluminum alloy |
| Cable | Ø4*1000mm 4-core shielded cable |
| Wiring code |
3-wire for voltage output 2-wire for current output |
Load cell with built in amplifier

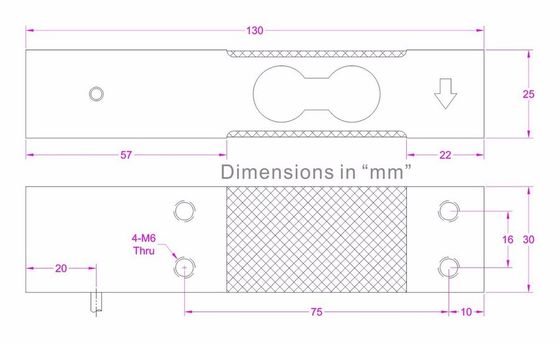

Dimensions
