| Usage: | Tension And Compression Force Measurement | Load Range: | 10N 20N 50N 100N 200N 300N 500N |
|---|---|---|---|
| Type: | Micro Force Sensor | Structure: | S Type Jr. Load Cell |
| Output: | Analog Sensor | Connection: | M4/M3 Threaded Hole |

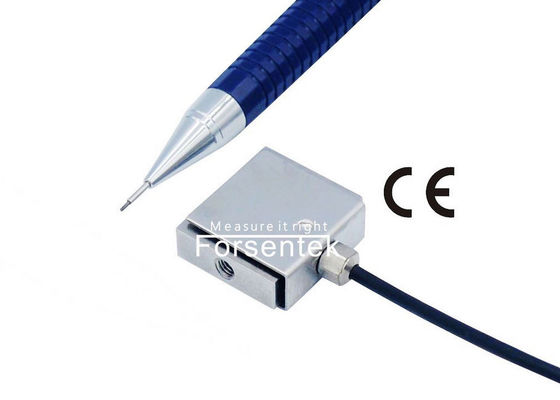

Miniature Load Cell 10N Tension Compression Force Measurement Sensor 20N
Miniature Force Load Cell FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N / 0-300N / 0-500N / 0-1000N eight rated measuring ranges to choose from.The mini jr s beam load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity,the compact design enables s type force sensor FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features M3/M4 threaded holes on two sides for the mounting of attachments or implements, this micro load cell force sensor can be used for both tension and compression force measurement in applications with limited mounting space. You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec force transducer ISB,etc..
Specifications
| Capacity | 10N / 1kgf / 2.2lbf 20N / 2kgf / 4.4 lbf 50N / 5kg / 11lb 100N / 10kgf / 22lbf 200N / 20kgf / 45lbs 300N / 30kg / 67lbf 500N / 50kgf / 110lb 1kN / 100kg / 220lb |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% of capacity |
| Hysteresis | ±0.1% of capacity |
| Nonrepeatability | ±0.05% of capacity |
| Creep(5min) | ±0.1% of capacity |
| Safe overload | 150% of capacity |
| Ultimate overload | 200% of capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø2*4000mm 4-core shielded cable |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
A force sensor is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell.Tension and compression force transducer FSSM is designed to measure force in both tension and compression direction,outputs millivolt signal ranging -30~30mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5-5V, 0-10V or 4-20mA signal proportional to applied force.The amplified output then can be easily processed by PLCs and data acquisition software.The force can be displayed through force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
Miniature Load Cell 10N Tension Compression Force Measurement Sensor 20N
