| Usage: | Measure Torque | Theory: | Rotary Torque Sensor |
|---|---|---|---|
| Output: | Analog Transducer | Torque Direction: | Clockwise&CCW |
| Configuration: | Shaft-to-shaft |

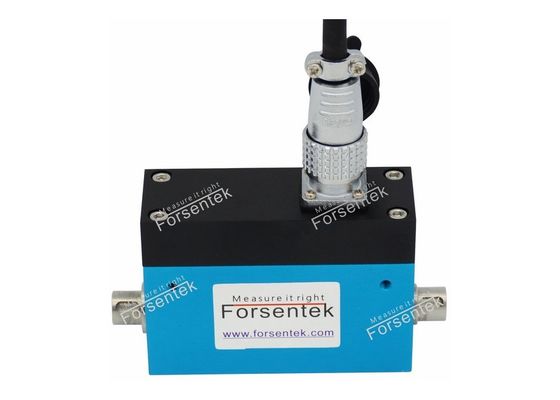

Rotating torque measurement device shaft to shaft rotary torque meter
Features
Specifications
| Capacity |
0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM |
| Rated output | 1.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temp. shift zero | ±0.02% R.O./oC |
| Temp. shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP40 |
| Material of element | Stainless steel |
| Cable |
Ø5*3000mm 4-core shieded cable with mating connector |
| Wiring code |
Red--Excxcitation+ Black--Excitation- |
Rotary torque meter for rotating torque measurement
A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Rotary torque sensor is designed to measure rotating torque like motor torque, rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque which is also known as reaction torque.
Digital meter can be used to display the torque value,digital indicator FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
Dimensions(milimeter)
