| Type: | Multi Axis Force Sensor | Theory: | Strain Gauge Load Cell |
|---|---|---|---|
| Channel: | Fx/Fy/Fz | Capacity: | 50N 100N 200N 500N |
| Mounting: | Flange To Flange |

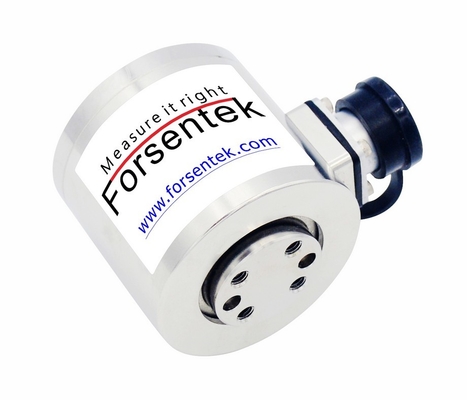

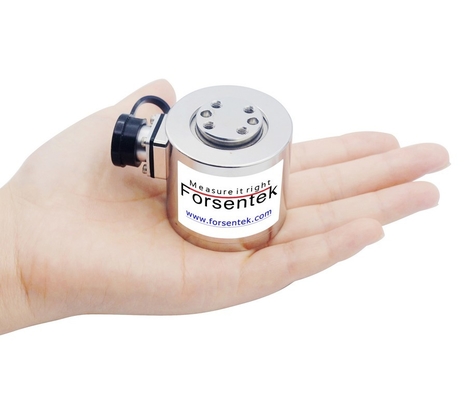

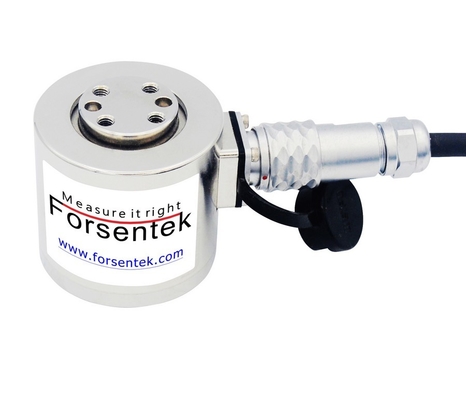

3 axis load cell 50N 3-axis force sensor 500N Triaxial load cell
Specifications
| Rated Capacity | X/Y/Z-50N 100N 200N 500N |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.03% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP60 |
| Material of element | Stainless steel |
| Cable | Ø6*3000mm 8-core shielded cable |
| Wiring code | Excitation Blue--Exc+ Black--Exc- X-axis Grey--Sig+ Green--Sig- Y-axis Brown--Sig+ Yellow--Sig- Z-axis White--Sig+ Red--Sig- |
Multi axis force sensor 3 axis force transducer MAC
Multi axis load cell MAC is designed to measure three directional force in X/Y/Z directions.Made of stainless steel,rugged structure with two mounting flanges on both sides for easy installation.Suitable for test benches,force experiments and other force measurements where force measurement in more than one dimension is involved.
Dimensions(unit in "mm)
