Detailed Product Description
Usage: Force Measurement Transducer Type: Tension Compression Sensor
Output: Analog Load Cell Capacity: 500N 1KN 2KN 3KN 5KN
Structure: Threaded Inline Force Sensor Threaded Rod: M8

1kN Force Measurement Sensor 2kN Force Measurement Transducer 3kN

M8 Threaded Rod Force Measurement Transducer FL34 is made of 17-4 stainless steel and CE certified. In-line force transducer FL34 offers rugged structure for industrial applications. Inline load cells are designed to be mounted inline to the load axis for both tension and compression force measurement.The force sensor FL34 can be easily mounted to existing system through M8 threaded rods located on both sides of the transducer,these metric threads can also be used to mount attachments,such as female eye bolt, bolt adapter, etc., to fit different usage requirements. Tension and Compression Force Measurement Transducer FL34 uses metal foil strain gauge technology to deliver 1.5mV/V rated output with 500N / 1KN / 2KN / 3KN / 5KN five rated capacities to choose from. Each sensor is integrated with a 3-meter-long 4-core shielded cable,the cable comes with a free end which makes it easy to assemble any types of connectors for electrical connection. Inline Force Measurement Sensor FL34 is normally used for press-in force measurement, cylinder push pull force measurement, auto equipment,production line, hand press machine.etc. Custom made service is available for other measuring ranges with similar structure.

3kN_Force_Measurement_Transducer_2kN

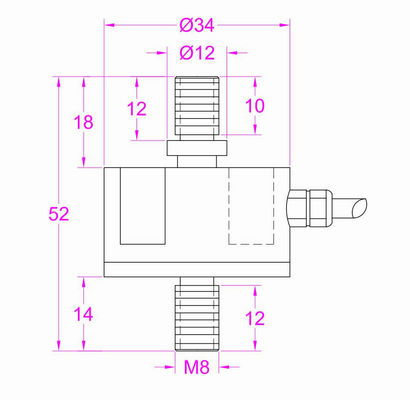

Dimensions

5kN_Force_Measurement_Transducer_1kN
Specifications

Rated capacity

500N / 50kg / 110lb

1KN / 100kg / 220lb

2kN / 200kg / 450lb

3kN / 300kg / 670lb

5kN / 500kg / 1120lb

Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.5% of R.O.
Hysteresis ±0.5% of R.O.
Nonrepeatability ±0.2% of R.O.
Creep(5min) ±0.1% of R.O.
Safe overload 150% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 385±30 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded
Wiring code Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal-



A load cell is a transducer that converts load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell. Threaded rod end Force Measurement Sensor FL34 is designed to measure both tension and compression force,outputs millivolt signal ranging -25...+25mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.The applied force can be displayed through a force indicator,force indicator FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.

3kN Force Measurement Sensor 2kN Force Measurement Transducer 1kN

2kN_Force_Measurement_Sensor_1kN

Click here to download datasheet
