| Usage: | Torque Measurement | Type: | Reaction Torque Sensor |
|---|---|---|---|
| Output: | Analog Transducer | Torque Range: | 0-100kNM |
| Structure: | Flange-to-flange |

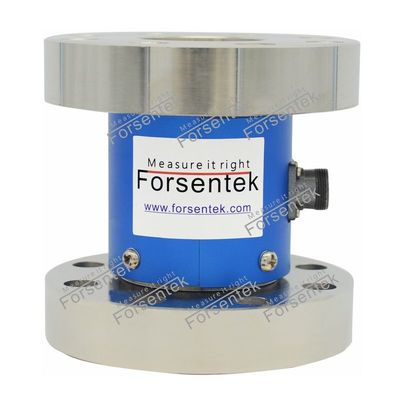

Static torque sensors for reaction torque measurement up to 100kNm
Features
Dimensions
Specifications
| Capacity |
200NM 300NM 500NM 1000NM 2000NM 3000NM |
| Rated output | 1.5 mV/V |
| Excitation | 5-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.25% R.O. |
| Hysteresis | ±0.25% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Alloy steel |
| Cable | Ø5.5*3000mm 4-core shielded |
| Wiring code | Red--E+ Green--E- Yellown--S+ White--S- |
Static torque sensors torque transducers flange to flange mounting
