| Usage: | Rotating Torque Measurement | Theory: | Dynamic Torque Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Torque Direction: | Clockwise&Counterclockwise |
| Torque Range: | 0-500Nm | Configuration: | Shaft-to-shaft |

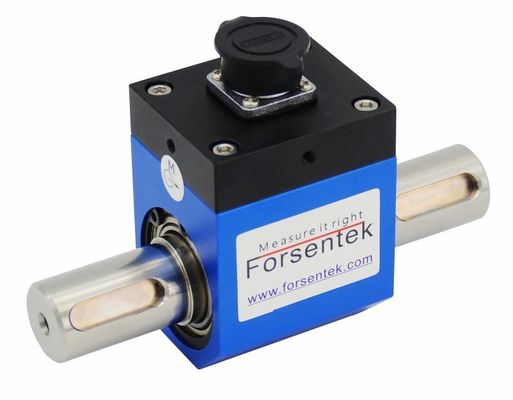

Rotary torque sensor motor torque measurement
Features
Dimensions
Specifications
| Capacity | 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP40 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Dynamic torque sensor for rotating torque measurement
