| Usage: | Torque Measurement Transducer | Theory: | Strain Gauge Torque Transducer |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM |
Torque measurement sensor torque measure transducer
Features
Dimensions
Specifications
| Capacity |
0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temp. shift zero | ±0.02% R.O./oC |
| Temp. shift span | ±0.01% R.O./oC |
| Input resistance | 350(700) ohms |
| Output resistance | 350(700) ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP60 |
| Material of element | Aluminum alloy(Alloy steel for 50NM and 100NM) |
| Cable | Ø5*3000mm 4-pin shielded cable |
| Wiring code | Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |

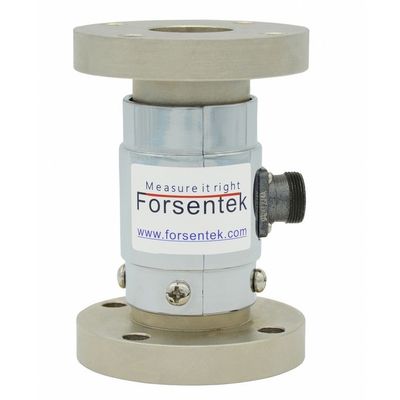

Flange to flange torque transducer
Ordering code:
FTA-0.2NM FTA-0.5NM FTA-1NM FTA-2NM FTA-3NM FTA-5NM
FTA-10NM FTA-20NM FTA-30NM FTA-50NM FTA-100NM
