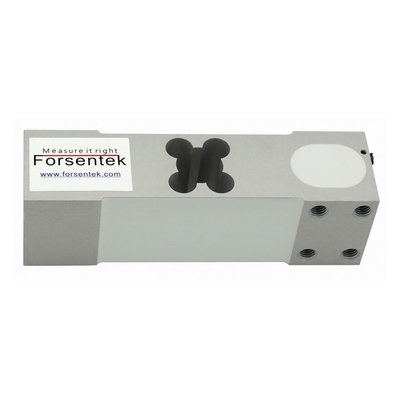

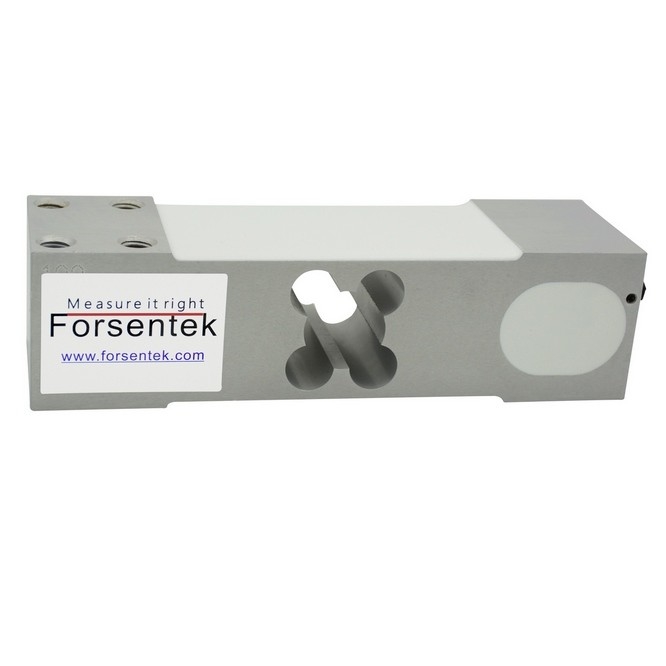

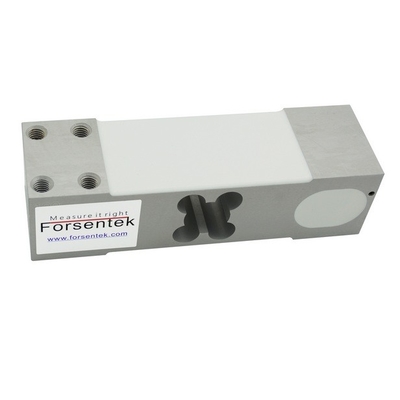

High Accuracy Load Cell Transducer 100kg 200kg 350kg 500kg Weight Sensor

High Accuracy Load Cell Transducer 100kg 200kg 350kg 500kg Weight Sensor

High Accuracy Load Cell Transducer 100kg 200kg 350kg 500kg Weight Sensor
High Accuracy Load Cell Transducer 100kg 200kg 350kg 500kg Weight Sensor High Accuracy Load Cell Transducer 100kg 200kg 350kg 500kg Weight Sensor High Accuracy Load Cell Transducer 100kg 200kg 350kg 500kg Weight Sensor

Large Image :  High Accuracy Load Cell Transducer 100kg 200kg 350kg 500kg Weight Sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FNN
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 6000pcs/month
Detailed Product Description
Usage: Weight Measurement Transducer Capacity: 60kg 100kg 200kg 350kg 500kg
Type: Parallel Beam Load Cell Output: Analog Sensor

High Accuracy Load Cell Transducer 100kg 200kg 350kg 500kg Weight Sensor

High Accuracy Load Cell Transducer FNN utilizes strain gauge technology to deliver high accuracy of maximum 0.015% non-linearity of the full scale. Load sensor FNN offers 0-60kg / 0-100kg / 0-200kg / 0-350kg / 0-500kg five rated measuring ranges to choose from. Weight transducer FNN is corner trimmed for platform sizes up to 40x50cm,which makes weight sensor FNN suitable for platform weighing applications where off-center loading exists. Weight Sensor FNN is temperature compensated to deliver stable measuring results within its working temperature range. You may find beam type load cell sensor FNN applicable for packaging machines, bench scales, feeding machines, intelligent warehouse weighing management system, beehive scales and so on.

100kg_Load_Cell_Transducer_200kg

Specifications

Capacity

60kg / 600N / 130 lbf
100kg / 1kN / 220lb
200kg / 2kN / 440 lbf
350kg / 3.5kN / 770lb

500kg / 5kN / 1.1klbf

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.015% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 405±10 ohms
Output resistance 350±3 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø5*1500mm 4-core shielded
Wiring code

Red--Exc+ Black--Exc-

Green--Sig+ White--Sig-



A Load Sensor is a transducer that converts mechanical load into electrical signal which is proportional to the load being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the load cell which is normally within 0-30mV. Overloading is the most common cause of loadcell failure, a loadcell is just like a spring in certain aspects, which will be damaged if overstretched or overloaded. A machanical stop(refer to below picture) can be used to protect the sensor from excessive deformation. The deformation distance can be determined by loading the sensor with rated capacity, then adjust the meachnical stop to reach the bottom of the transducer. In most cases, the load transducer will be used to measure load at 40-80% of the full scale, thus the deformation distance can be adjusted using reference load which is a bit higher than the maximum target load to be measured instead of the rated capacity.
