| Usage: | Tension/Compression Load Measurement | Theory: | Strain Gauge Load Cell |
|---|---|---|---|
| Output: | Analog Sensor |

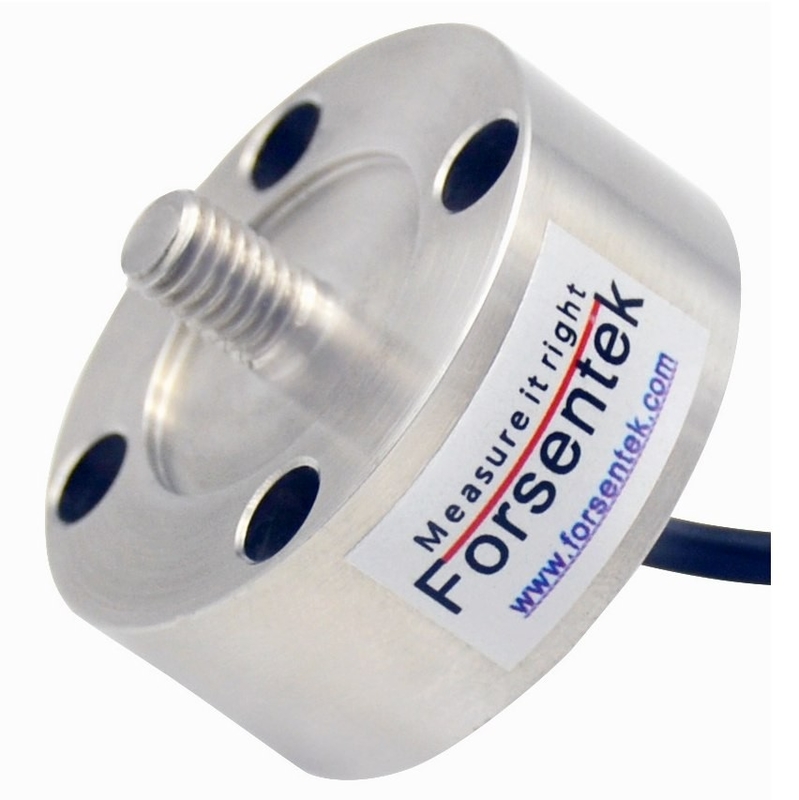

Rod end compression force transducer 0-50kN Compression force measurement
Features

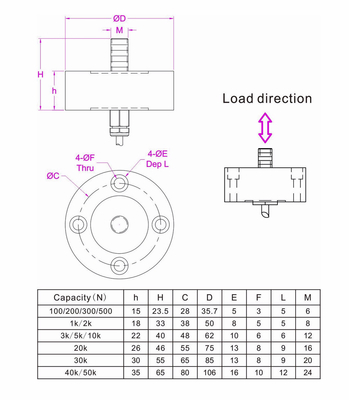

Dimensions
Specifications
| Capacity | 10kg 20kg 30kg 50kg 100kg 200kg 500kg 1t 2t 3t 5t |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*2000mm 4-core shielded cable |
|
Wiring code |
Red--E+ Black--E- Green--S+ White--S- |
Compression load cell force sensor
