| Usage: | Pull Push Force Measurement | Type: | Push Pull Load Cell |
|---|---|---|---|
| Force Range: | 500N 1kN 2kN 3kN 5kN | Structure: | Threaded Inline Force Transducer |
| Output: | Analog Sensor | Connection: | M8 Threaded Rod |
Pull And Push Force Sensor 500N 1kN 2kN 3kN 5kN Pull Load Cell

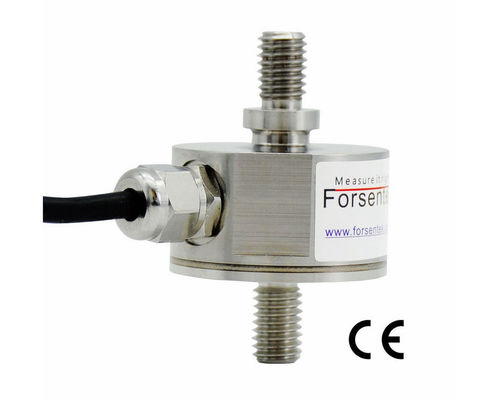

M8 Threaded Rod End Push And Pull Load Cell FL34 is made of 17-4 stainless steel and CE certified. In-line force transducer FL34 offers rugged structure for industrial applications. Inline load cells are designed to be mounted inline to the load axis for both tension and compression force measurement.The pull force sensor FL34 can be easily mounted to existing system through M8 threaded rods located on both sides of the transducer,these metric threads can also be used to mount attachments,such as female eye bolt, bolt adapter, etc., to fit different usage requirements. Pull And Push Force Transducer FL34 uses metal foil strain gauge technology to deliver 1.5mV/V rated output with 500N / 1KN / 2KN / 3KN / 5KN five rated capacities to choose from. Each sensor is integrated with a 3-meter-long 4-core shielded cable,the cable comes with a free end which makes it easy to assemble any types of connectors for electrical connection. Compression Tension Load Cell FL34 is normally used for press-in force measurement, cylinder push pull force measurement, auto equipment,production line, hand press machine.etc. Custom made service is available for other measuring ranges with similar structure.
Dimensions
Ordering code: FL34-500N, FL34-1kN, FL34-2kN, FL34-3kN, FL34-5kN
Specifications
| Rated capacity |
500N / 50kg / 110lb 1KN / 100kg / 220lb 2kN / 200kg / 450lb 3kN / 300kg / 670lb 5kN / 500kg / 1120lb |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.5% of R.O. |
| Hysteresis | ±0.5% of R.O. |
| Nonrepeatability | ±0.2% of R.O. |
| Creep(5min) | ±0.1% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A load cell is a transducer that converts load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.Threaded rod end pull load cell FL34 is designed to measure both tension and compression force,outputs millivolt signal ranging -25...+25mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.The applied force can be displayed through a force indicator,force indicator FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
