High accuracy Load cell 2kg weight transducer 5 lb weight measurement

High accuracy Load cell 2kg weight transducer 5 lb weight measurement

High accuracy Load cell 2kg weight transducer 5 lb weight measurement
High accuracy Load cell 2kg weight transducer 5 lb weight measurement High accuracy Load cell 2kg weight transducer 5 lb weight measurement High accuracy Load cell 2kg weight transducer 5 lb weight measurement High accuracy Load cell 2kg weight transducer 5 lb weight measurement

Large Image :  High accuracy Load cell 2kg weight transducer 5 lb weight measurement Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FH02
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 4750pcs/month
Detailed Product Description
Usage: Weight Measurement Type: Off Center Weight Sensor
Structure: Single Point Load Cell Output: Analog Sensor
Capacity: 0.3kg 0.5kg 1kg 2kg 3kg 5kg 10kg 20kg

High accuracy Load cell 2kg weight transducer 5 lb weight measurement

Features:

  • Aluminum construction
  • Single point structure,easy to install
  • Strain gauge technology,analog output,high accuracy
  • Static load measurement

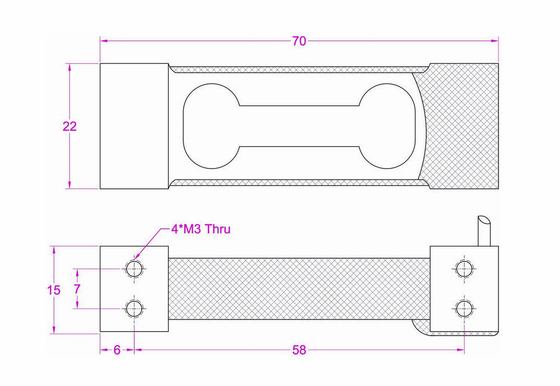

Dimensions:

High accuracy Load cell 2kg weight transducer 5 lb weight measurement

Specifications

Capacity 0.5/1/2/3/5/6kg/10kg/20kg
Rated output 2.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.02% R.O.
Hysteresis ±0.02% R.O.
Nonrepeatability ±0.02% R.O.
Creep(5min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 410±30 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø3*450mm(Longer cable available)
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Load cell 2kg weight transducer 20N



load cell 2kg

Click here to download datasheet
