Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N

Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N

Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N
Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N

Large Image :  Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCLB
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3300pcs/month
Detailed Product Description
Type: Load Button Load Cell Usage: Compression Force Measurement
Load Range: 5kg 10kg 20kg 50kg 100kg 200kg 500kg Theory: Strain Gauge Force Sensor
Output: Analog Sensor Diameter: 20mm
High Light:

button load cell

,

button load cell 20kg

,

small load cell 20kg

Small Load Button Load Cell 20kg Compression Force Measurement Sensor 200N

​Small Size Load Button Load Cell FCLB is made of stainless steel based on strain gauge technology which offers 5kg / 10kg / 20kg / 50kg / 100kg / 200kg / 500kg seven rated capacities to choose from,compact design makes button type load cell FCLB suitable for compression force measurement applications with limited mounting space. Each compression sensor comes with a 3-meter-long shielded cable, 4xM2.5 threaded holes located on the bottom make it easy to mount miniature force sensor FCLB to a flat platform,you may find Miniature Compression Force Load Cell FCLB suitable for applications such as load distribution analysis, mold pressure measurement, force overload protection, clamping force measurement, assembly force monitoring, hydraulics force control and so on.

small compression load cell 20kg

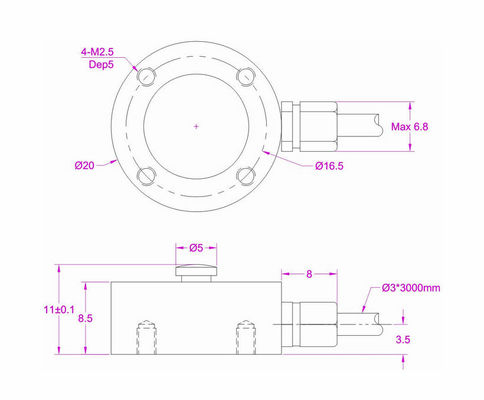

Dimensions(unit in "mm")

miniature compression force sensor 200N

Specifications

Capacity

50N / 5kg / 11lb

100N / 10kg / 22 lb

200N / 20kg / 45lb

500N / 50kg / 110lb

1kN / 100kg / 220 lbf

2kN / 200kg / 450 lb

5kN / 500kg / 1120 lbf

Rated output 1.5mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(3min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±100 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø3*3000mm 4-core shielded cable
Wiring code

Red--Excitation+  Black--Excitation-

Green--Signal+  White--Signal-



A Load Cell is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell.Miniature Button Load Cell FCLB is designed to measure force in compression direction,outputs millivolt signal within 0~20mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to convert mV signal into -5-5V, 0-10V or 4-20mA output which is proportional to applied force.The amplified output then can be easily processed by PLCs and data acquisition software. The force can also be displayed through force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.

Small Load Button Load Cell 20kg Compression Force Transducer 200N

small button load cell 20kg

Click here to download datasheet
