| Usage: | Force Measurement | Structure: | Rod End Force Sensor |
|---|---|---|---|
| Capacity: | 5 Klb 10 Klb 20 Klb | Force Direction: | Tension And Compression |
| Thread: | 1-14 UNS |
Rod End Load Cell 5 klb 10 klb 20 klb For Cylinder And Actuator Thrust Measurement

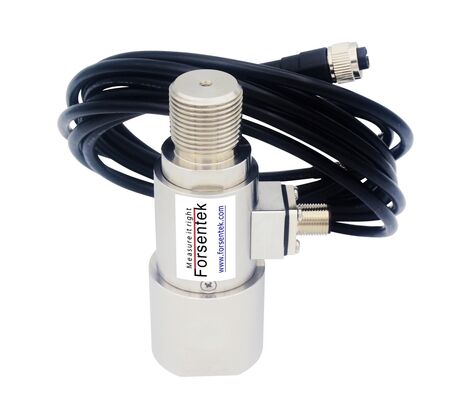

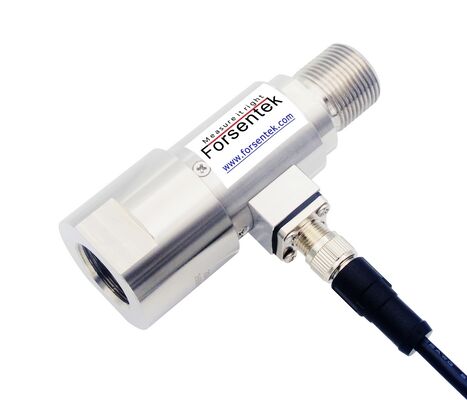

The FLXN is a compact rod end force sensor designed for precise inline force monitoring in hydraulic actuators, mechanical linkages, and motion transmission systems. As a robust rod end load cell, it is engineered to be installed directly within actuator rods through its 1-14 UNS male and female threaded interfaces, allowing seamless integration without altering system geometry. Its true inline force path ensures accurate axial measurement of thrust and tension while maintaining alignment stability, making it highly suitable for applications where consistent force feedback and structural neutrality are critical.
Serving as a reliable thrust load cell and thrust force sensor, the FLXN delivers dependable performance in both tension and compression measurement. Available in 5 klb, 10 klb, and 20 klb capacities, it supports a wide range of industrial and testing requirements, from overload protection to closed-loop actuator control. Built from high-strength stainless steel, it provides excellent resistance to harsh environments, vibration, and long-term mechanical stress. The design also supports drop-in replacement for FUTEK LCB450 models, offering a practical upgrade path. Each unit is supplied with an in-house calibration report to ensure consistent accuracy, and customization options are available for mounting configurations or system-specific integration needs, making it a versatile solution for demanding force measurement applications.
Specifications
| Capacity |
5klb 10klb 20klb |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.5% of full capacity |
| Hysteresis | ±0.5% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(3min) | ±0.2% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+60oC |
| Operating temperature | -20...+80oC |
| Temperature shift zero | ±0.01% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3.3*3000mm 4-core shielded |
| Wiring code @ Tension |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
