| Usage: | Force Measurement | Structure: | S-beam Load Cell |
|---|---|---|---|
| Capacity: | 5kg 10kg 20kg 30kg 50kg | Force Direction: | Tension And Compression |
| Connection: | M6 Threaded Hole |

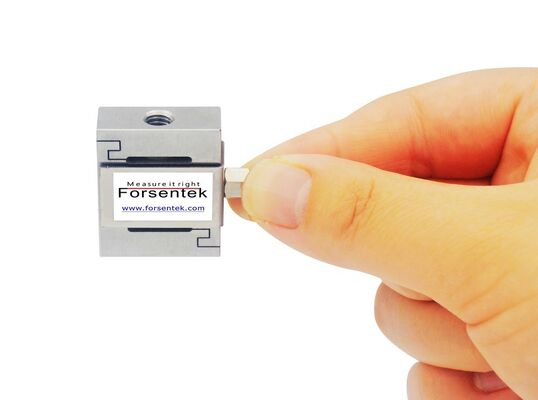

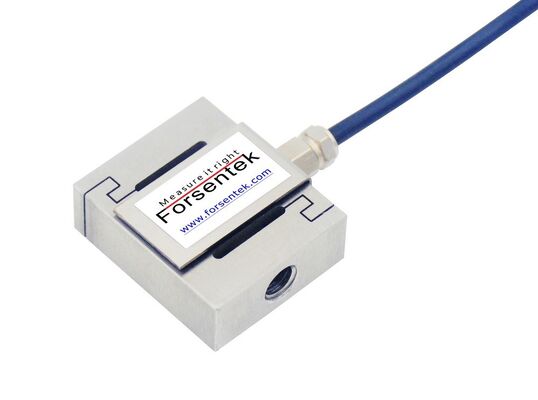

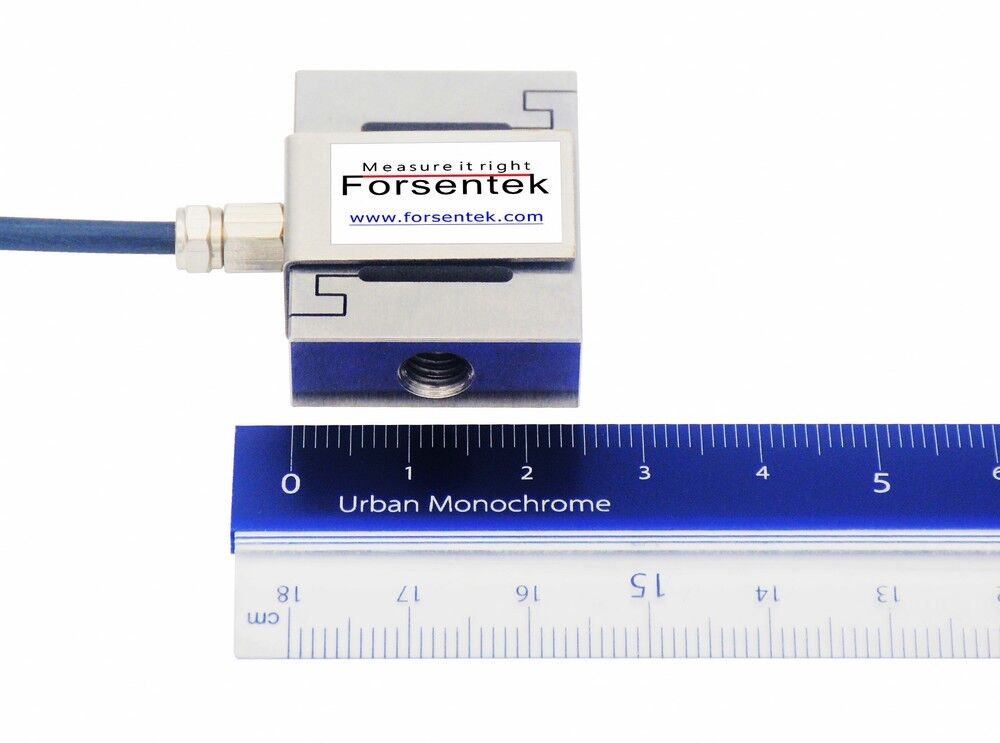

Miniature Tension And Compression Load Cell 0-50kg With M6 Mounting Holes
The FSKT miniature S-type load cell is designed for accurate measurement of both tension and compression forces in compact installations. Manufactured from high-grade stainless steel, this S-beam style sensor provides excellent durability, structural stability, and strong resistance to corrosion, ensuring dependable operation in demanding industrial settings as well as controlled laboratory environments. The model is offered in rated capacities of 5 kg, 10 kg, 20 kg, 30 kg, and 50 kg, allowing users to select the most suitable range for precise low-force measurements. Thanks to its small footprint and lightweight structure, the sensor can be easily integrated into machinery or testing equipment where space is limited while still delivering reliable accuracy and repeatability.
For convenient installation, the sensor is designed with M6 threaded mounting holes on both ends, making it compatible with hooks, eye bolts, threaded rods, or load buttons. This flexible mounting configuration allows the device to be quickly incorporated into a wide variety of testing fixtures and automated systems. Common uses include connector insertion and extraction testing, friction measurement devices, spring testing equipment, assembly line force monitoring, wire tension control, and push–pull force measurement in pneumatic or hydraulic cylinders. The sensor can also support educational experiments and research projects that require precise force measurement. In addition, customization options are available to accommodate special mechanical structures or application requirements, making the FSKT load cell a practical and adaptable solution for OEM equipment and specialized testing systems.
Dimensions(unit in "mm")
| Capacity |
5kg 10kg 20kg 30kg 50kg 50N 100N 200N 300N 500N |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% of full capacity |
| Hysteresis | ±0.1% of full capacity |
| Nonrepeatability | ±0.05% of full capacity |
| Creep(3min) | ±0.1% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø3*2000mm 4-core shielded |
| Wiring code |
Tension@ Green--Signal+ White--Signal- |
