| Usage: | Force Measurement | Structure: | Z-beam Load Cell |
|---|---|---|---|
| Capacity: | 10kg 20kg 50kg | Force Direction: | Tension And Compression |
| Connection: | M6 Threaded Hole | Ingress Protection: | IP68 |

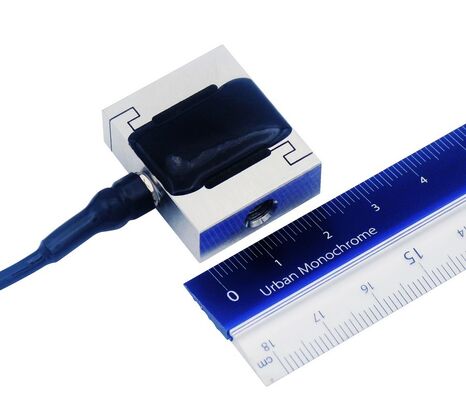

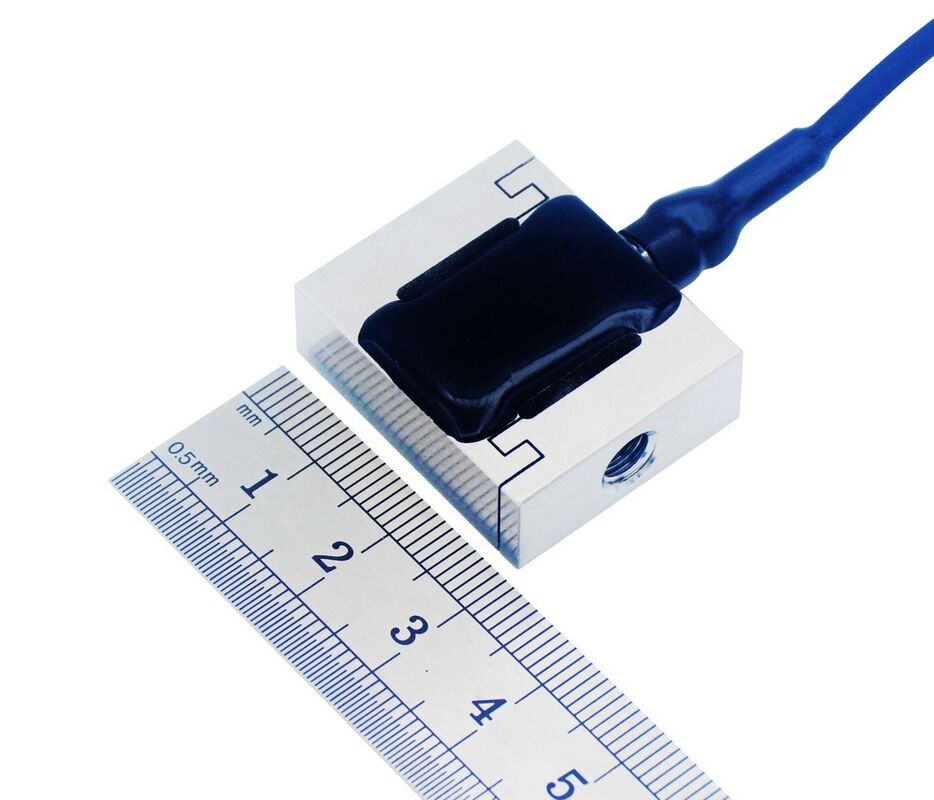

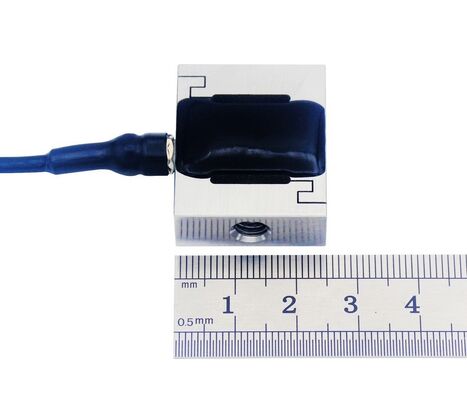

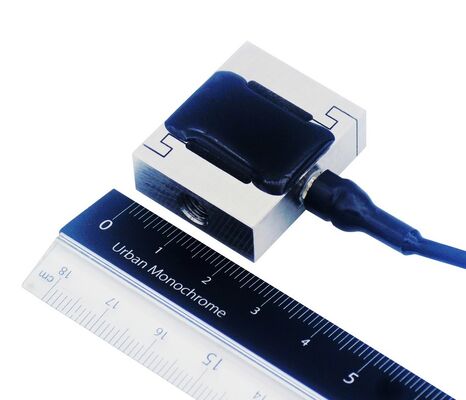

IP68 Waterproof Load Cell 50kg 20kg 10kg Submersible Force Sensor
The FSKN is a miniature stainless steel sensing element developed for accurate push and pull force measurement in environments exposed to moisture, splashing water, and temporary immersion. Designed with a rugged all-metal construction, the sensor delivers dependable performance while maintaining excellent long-term stability in demanding industrial and marine applications. Its compact body allows easy installation in systems where available mounting space is limited.
Equipped with threaded M6 interfaces on both sides, the device can be quickly connected to eye bolts, hooks, loading fixtures, and customized mechanical assemblies. As a high-quality waterproof load cell, the FSKN is carefully sealed to prevent water penetration and ensure reliable signal output during short-term underwater operation. The IP68 load cell structure makes it suitable for use in humid production areas, submerged test setups, and outdoor equipment exposed to rain or spray.
This submersible load cell is available in capacities up to 50kg and is widely used for cable tension monitoring, underwater research devices, compact material testing systems, marine instruments, and aquatic engineering projects. For special applications, customized dimensions, mounting styles, and measuring ranges can be provided. The sensor also performs effectively as a durable water-resistant force sensor for low-capacity precision measurement tasks.
Specifications
| Capacity |
10kg 20kg 50kg 100N 200N 500N |
| Rated output | 1.5 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.3% of full capacity |
| Hysteresis | ±0.3% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(3min) | ±0.2% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable | Ø3*5000mm 4-core shielded |
| Wiring code @ Tension |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
