| Keyword: | Load Cell Signal Conditioner | Output: | -10-10V/4-20mA/0-20mA |
|---|---|---|---|
| Input: | 1.0mV/V~3.0mV/V | Power: | 12~26V DC |

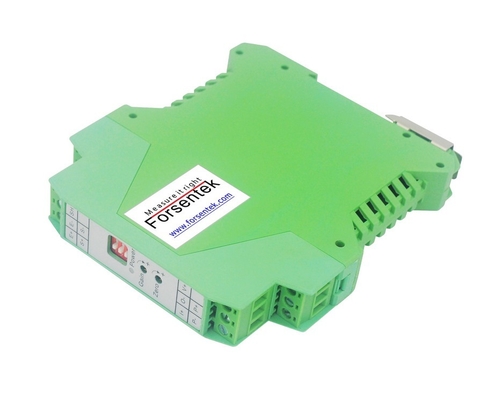

35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
The FSD DIN rail amplifier is a highly adaptable signal conditioner designed to convert the low-level millivolt signals generated by load cells and force sensors into standard industrial outputs of ±10V or 4-20mA. This functionality simplifies integration with control systems, data acquisition units, and PLCs in various industrial environments. With its DIN rail mounting design, the FSD fits easily into control cabinets, making it suitable for automation and monitoring setups. It supports a broad input voltage range from 12V to 24V DC while maintaining a low power consumption of under 1.2W, ensuring energy-efficient operation in demanding applications.
In addition to its robust electrical design, the FSD amplifier offers a selectable bandwidth feature that allows users to switch between 100Hz and 3kHz, depending on whether stable signal measurement or dynamic force tracking is needed. It boasts a high isolation voltage of 1500V, providing effective protection against electrical interference and ensuring the safety of connected devices. For calibration, the amplifier includes accessible “Zero” and “Gain” adjustment potentiometers, making setup straightforward without the need for special tools. The FSD amplifier delivers reliable performance for both tension and compression force measurements, making it a dependable solution for a wide range of industrial force sensing applications.
Dimensions
Specifications
| Function | Turn mV signal into V or mA signal |
| Accuracy | 0.1% |
| Isolation voltage | 1500V |
| Power supply | 12~26V DC DC |
| Power consumption | <1.2W |
| Output signal | -10-10V,4-20mA,0-20mA |
| Excitation for load cell | 5V DC |
| Applicable sensitivity | 1.0mV/V~3.0mV/V |
| Bandwidth | 100Hz/3kHz |
| Working temperature | 0...+50oC |
| Material of housing | Plastic |
| Ingress protection | IP20 |
| Net weight | 0.1kg |

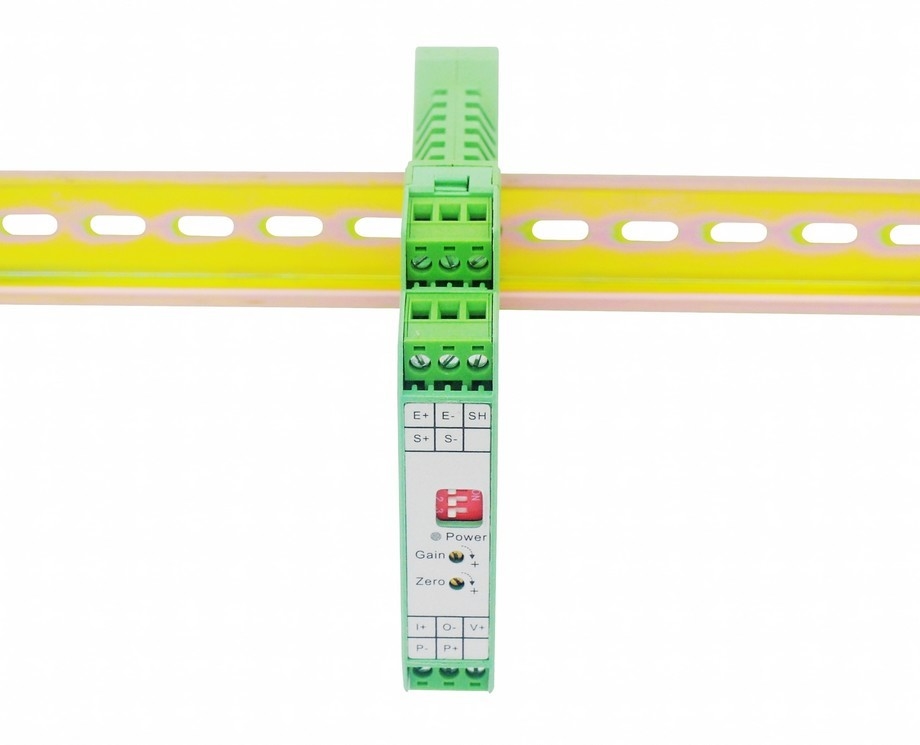

| Installation |
35mm DIN rail |
Load Cell DIN Rail Mount Amplifier -10-10V 4-20mA 0-20mA
