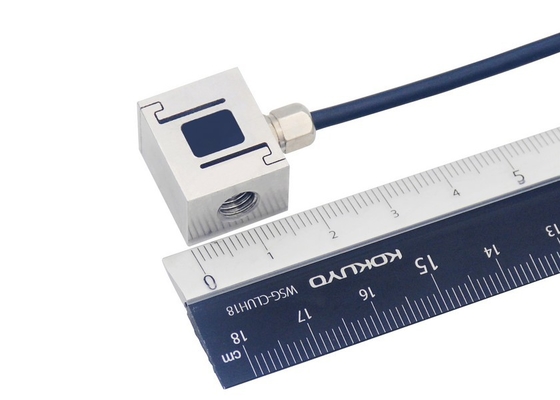

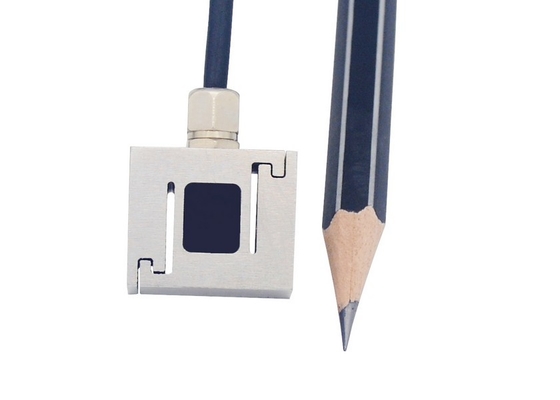

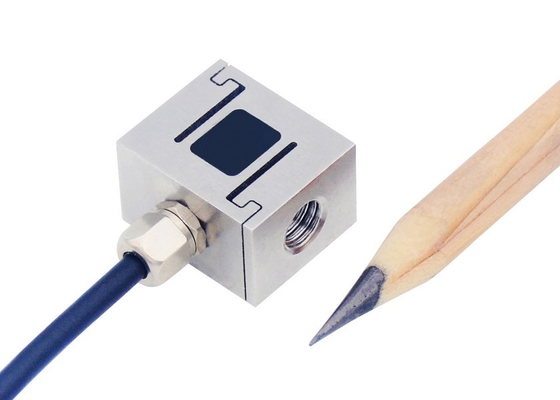

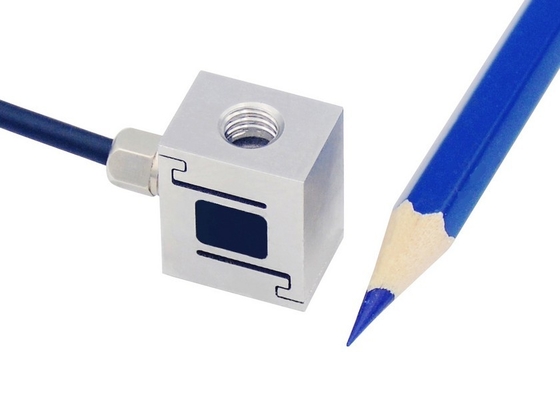

Micro Force Sensor 2kN 1kN 500N 200N 100N Miniature Force Transducer
Miniature Force Sensor FSSH is made from stainless steel based on strain gauge technology intended for both compression and traction force measurement. The junior S beam load cell series provide accuracy, compact design features, and a wide capacity range available in 100N, 200N, 500N, 1kN and 2kN. Small size push/pull load cell FSSH consists of a Wheatstone full bridge to deliver mV/V output proportional to the force applied. The M6 tapped holes located on each side of the transducer can be used to mount attachments or implements to adapt to different applications in force detecting and auto processing sections. The compact design enables Micro Force Sensor FSSH to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment. Miniature force transducer FSSH is ideally suited for applications where mounting space is limited, typical applications include spring testing, connector insertion and withdrawal force measurement, force gauges, tribometers, auto process control, press fit verification and so on. Forsentek can also provide custom design service as per client’s request.
Dimensions
Ordering code of Miniature S Type Force Sensor FSSH
| Ordering code | Measuring Range | Force direction |
| FSSH-100N | 0-100N / 0-10kgf |
Traction and Compression |
| FSSH-200N | 0-200N / 0-20kgf | |
| FSSH-500N | 0-500N / 0-50kgf | |
| FSSH-1kN | 0-1000N / 0-100kgf | |
| FSSH-2kN | 0-2000N / 0-200kgf |
Specifications
| Capacity |
100N / 10kg / 22 lbs 200N / 20kg / 45lbs 500N / 50kg / 112lbf 1kN / 100kg / 225lb 2kN / 200kg / 450lbf |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% of R.O. |
| Hysteresis | ±0.1% of R.O. |
| Nonrepeatability | ±0.05% of R.O. |
| Creep(5min) | ±0.05% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% of R.O./oC |
| Temperature shift span | ±0.02% of R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 355±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation input+ Black--Excitation input- Green--Signal output+ White--Signal output- |
Micro Force Transducer 2kN 1kN 500N 200N 100N Miniature Force Sensor
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force. The acting force causes deformation of the measuring element, the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge, under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature S Type Load Cell FSSH is around 2.0mV/V.
Power supply of Compression/Tension Load Cell FSSH is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Miniature Force Sensor FSSH is normally within -30mV...+30mV for bidirectional force measurement.
Example: Miniature Traction and compression Sensor FSSH-500N with 2.0mV/V sensitivity powered by 10V DC ,the output range is -20mV...+20mV.
A signal conditioner can be used with force transducer FSSH to deliver -5~5V, 0-10V or 4-20mA output.
Example: Push/pull load cell FSSH-1kN working with -10-10V amplifier, the Force-Voltage relationship will be 0-1000N compression load VS 0-10V output, 0-1000N traction load VS 0-(-10V) output, which is linear regardless of the measurement error. When you get 5V output, it means the current load is 500N compressive force, when you get -1V output, it means the current load is 100N tensile load.
