Tension Compression Load Cell 700kN 1000kN Rod End Force Transducer 2000kN 3000kN

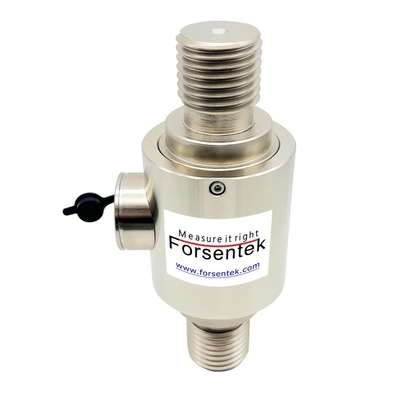

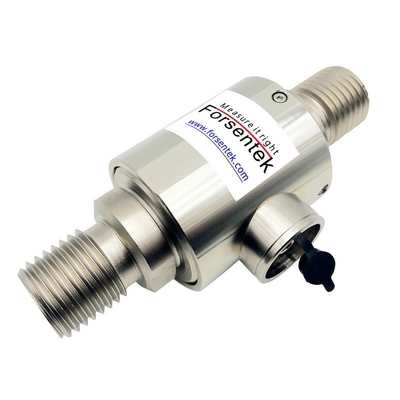

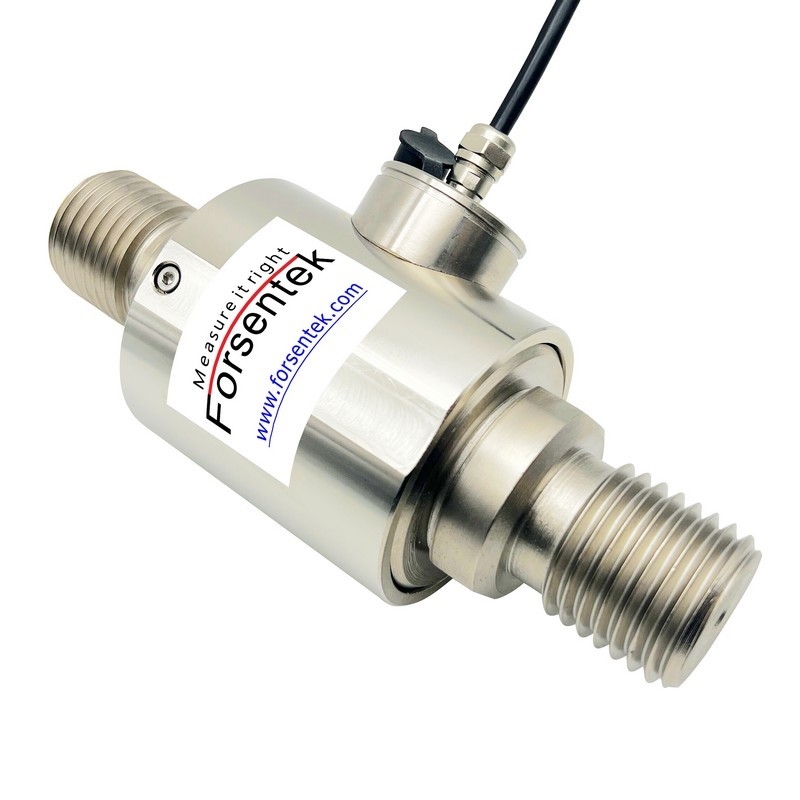

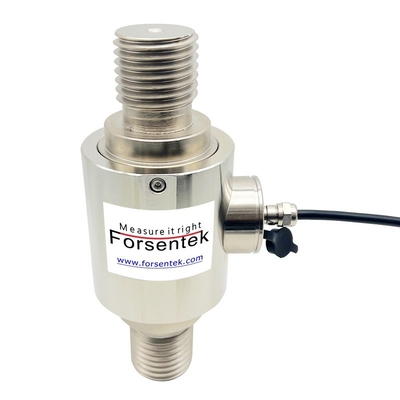

Threaded Inline Type Rod End Load Cell FLB is made of high stiffness alloy steel based on strain gauge technology intended for both traction and compression force measurement. Rod end load cell FLB is designed to be mounted inline to the load axis with rugged structure for industrial applications. The Rod End Load Cell FLB can be easily mounted to existing system through the threaded rods located on both sides of the transducer, these metric threads can also be used to mount attachments, such as female eye bolt, bolt adapter and so on to fit different usage requirements. Tension Compression Sensor FLB offers 0-100kN / 0-200kN / 0-300kN / 0-500kN / 0-700kN / 0-1000kN / 0-2000kN / 0-3000Kn eight rated measuring ranges, each sensor is integrated with a 6-meter-long 4-core shielded cable. Inline Type Force Transducer FLB is normally used for press-in force measurement, cylinder thrust measurement, hydraulic press, material testing machines, general process control and so on.
| Ordering code | Measuring Range | Force direction |
| FLH-100kN | 0-100kN / 0-10ton |
Traction and Compression |
| FLH-200kN | 0-200kN / 0-20ton | |
| FLH-300kN | 0-300kN / 0-30ton | |
| FLH-500kN | 0-500kN / 0-50ton | |
| FLH-700kN | 0-700kN / 0-70ton | |
| FLH-1000kN | 0-1000kN / 0-100ton | |
| FLH-2000kN | 0-2000kN / 0-200ton | |
| FLH-3000kN | 0-3000kN / 0-300ton |
Specifications
| Rated capacity |
100kN / 10ton / 22.4klbf 200kN / 20ton / 45klbs 300kN / 30ton / 67klbf 500kN / 50ton / 112klbs 700kN / 70ton / 157klb 1000kN / 100ton / 225klb 2000kN / 200ton / 450klb 3000kN / 300ton / 674klb |
| Rated output | 2.0mV/V |
| Excitation | 5-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity |
±0.1% of R.O. >1000kN: ±0.3% of R.O. |
| Hysteresis |
±0.1% of R.O. >1000kN: ±0.3% of R.O. |
| Nonrepeatability |
±0.1% of R.O. >1000kN: ±0.2% of R.O. |
| Creep(5min) | ±0.05% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 150% of F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection |
IP62 |
| Material of element | Alloy steel |
| Cable | Ø5.8*6000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Rod End Force Sensor FLB is around 2.0mV/V.
Power supply of Compression/Tension Force Transducer FLB is normally within 5-15V.
Load / Capacity is within 0-1.
So the output range of Tension Compression Load Cell FLB is normally within -30mV...+30mV for bidirectional force measurement.
Example: Traction and compression load cell FLB-500kN with 2.0mV/V sensitivity powered by 10V DC ,the output range is -20mV...+20mV.
A signal conditioner can be used with force transducer FLB to deliver -5~5V, 0-10V or 4-20mA output.
Example: Push/pull load cell FLB-1000kN working with -10-10V amplifier,the Force-Voltage relationship will be 0-1000kN compression load VS 0-10V output, 0-1000kN traction load VS 0-(-10V) output, which is linear regardless of the measurement error. When you get 5V output, it means the current load is 500kN compression force, when you get -1V output, it means the current load is 100kN traction load.
Tension Compression Load Cell 3000kN 2000kN Rod End Force Transducer 1000kN 700kN
