Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N

Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N

Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N
Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N

Large Image :  Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FCCF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2940pcs/month
Detailed Product Description
Usage: Clamping Force Measurement Range: 5kgf 10kgf 20kgf 50kgf
Type: Miniature Load Button Output: Analog Load Cell
Material: Stainless Steel

Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N

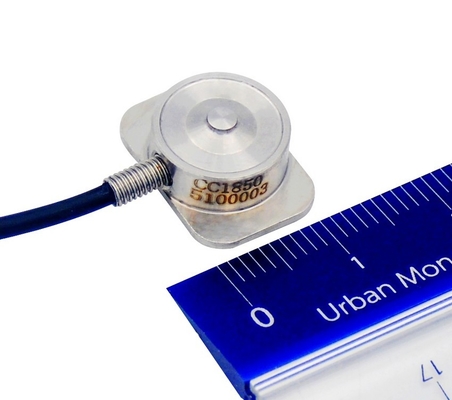

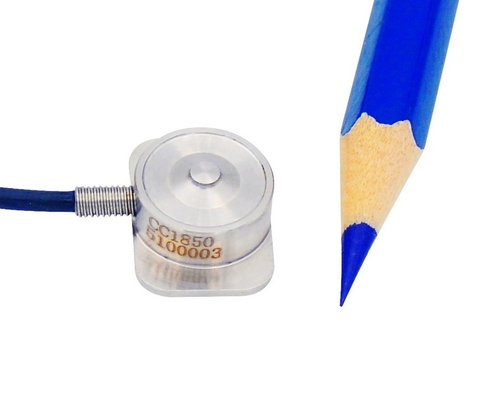

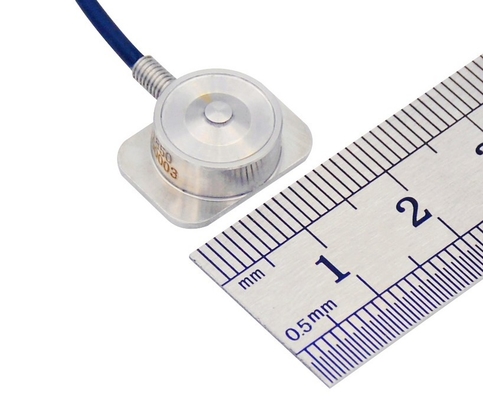

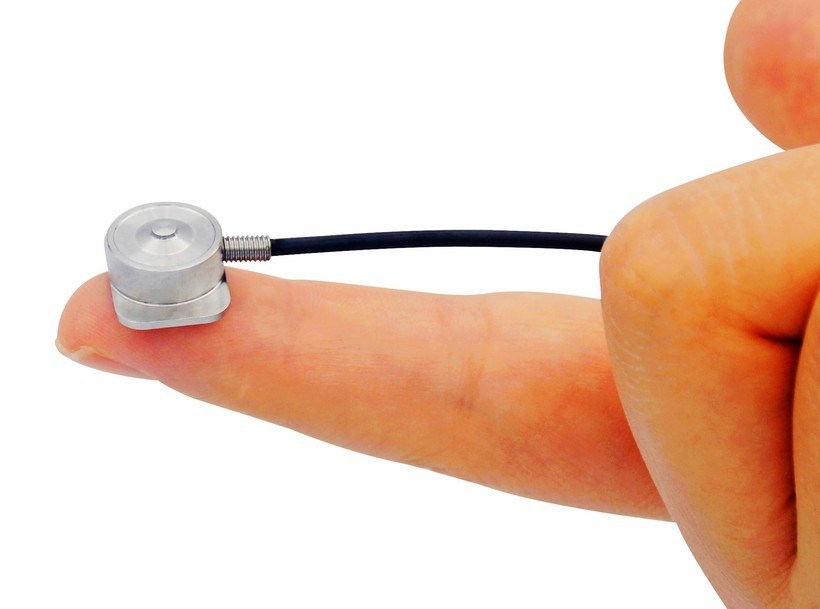

Micro Compression Load Cell FCCF is made of stainless steel based on strain gauge technology offering 50N / 100N / 200N / 500N four rated capacities intended for compression force measurement. Compact design with a mounting base makes it easy to install the transducer, 1000ohms high resistance minimizes the heat emission and improves long term stability. Miniature size enables button load cell FCCF applicable for appliations where mounting space is limited. You may find Miniature Compression Force Sensor FCCF suitable for applications such as load distribution analysis, mold pressure measurement, force overload protection, clamping force measurement, assembly force monitoring and so on.

Miniature_Compression_Load_Cell_50N

A Load Cell is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell. Load Button Load Cell FCCF is designed to measure force in compression direction,outputs millivolt signal within 0~22.5mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to convert mV signal into -5-5V, 0-10V or 4-20mA output which is proportional to applied force.The amplified output then can be easily processed by PLCs and data acquisition software. The force can also be displayed through force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.

Dimensions

Miniature_Load_Button_Load_CellMicro_Compression_Load_Cell_500N

Ordering code Measurement Range Force direction
FCCF-50N 0-11lbf / 0-5kgf Compression
FCCF-100N 0-22lbf / 0-10kgf
FCCF-200N 0-45lbs / 0-20kgf
FCCF-500N 0-112lbf / 0-50kgf

Specifications

Capacity

50N / 100N / 200N / 500N

5kgf / 10kgf / 20kgf / 50kgf

11lb / 22lbs / 45lbf / 112lb

Rated output 1.5mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±1% of full capacity
Hysteresis ±1% of full capacity
Nonrepeatability ±0.5% of full capacity
Creep(3min) ±0.3% of full capacity
Safe overload 150% of full capacity
Ultimate overload 200% of full capacity
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±100 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø1.9*3000mm 4-core shielded cable
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-



Micro Compression Force Sensor 50N 100N Miniature Loadcell 500N 200N

Miniature_Compression_Load_Cell_100N

Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Button Load Cell FCCF is normally around 1.5mV/V.
Power supply of Miniature Load cell FCCF is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Sensor FCCF is normally within 0…+22.5mV.
Example: Micro Compression Load Cell FCCF-50kg with 1.5mV/V sensitivity powered by 10V DC,the output range is 0mV...+15mV.

Miniature_Compression_Load_Cell_500N

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Mini Button Type Compression Load Cell FCCF-10kg working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-10kg compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 1kgf compression load, 2V output corresponds to 2kgf compression load, and so on.

Miniature_Compression_Load_Cell_200N

Click here to download datasheet
