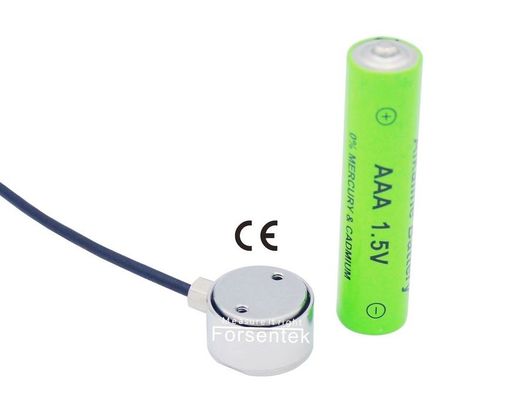

Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load Sensor

Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load Sensor

Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load Sensor
Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load Sensor Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load Sensor Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load Sensor Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load Sensor Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load Sensor

Large Image :  Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load Sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCFK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2625pcs/month
Detailed Product Description
Type: Micro Column Load Cell Capacity: 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg
Usage: Compression Force Measurement Output: Analog Transducer
Structure: Cylindrical Force Sensor Mounting: Flange To Flange

Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load cell Sensor

Miniature Cylindrical Load Cell FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity. Flanged Miniature Compression Sensor FCFK offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg / 0-50kg / 0-100kg / 0-200kg eight measuring ranges to choose from, flange to flange mounting, compact design, you may find micro force transducer FCFK applicable for compression force measurement applications where mounting space is limited, such as fixture clamping force measurement, assembly force monitoring, force distribution test, force simulator, pinch force measurement, etc.. Micro Column Load Cell FCFK can also be modified or customized as per client's request.

miniature_column_load_cell_10kg100N_cylindrical_Force_Transducer_200N

Ordering code Measurement Range Force direction
FCFK-10N 0-10N / 0-2.2lb Compression
FCFK-20N 0-20N / 0-4.4lb
FCFK-50N 0-50N / 0-0-10lb
FCFK-100N 0-100N / 0-20lb
FCFK-200N 0-200N / 0-45lb
FCFK-500N 0-500N / 0-112lbf
FCFK-1kN 0-1000N / 0-225lbs
FCFK-2kN 0-2000N / 0-450lbf

Specifications

Capacity

1kgf / 2kgf / 5kgf / 10kgf / 20kgf / 50kgf / 100kgf / 200kgf

2.2lb / 4.4lb / 11lb / 22lb / 45lb / 112lb / 225lbf / 450lbs
10N / 20N / 50N / 100N / 200N / 500N / 1kN / 2kN

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 385±50 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø2*3000mm 4-core shielded
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-



Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg for Compression Force Measurement

miniature_column_load_cell_20kg

Output signal of load cell FCFK:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Micro Load Cell FCFK is normally around 2.0mV/V.
Power supply of Pinch Force Sensor FCFK is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Transducer FCFK is normally within 0…+30mV.

Example one: Miniature Compression Sensor FCFK-100N with 2.0V/V sensitivity powered by 5V DC,the output range is 0mV...+10mV.
Example two: Micro Compression Force Transducer FCFK-20N with 2.0mV/V rated output powered by 10V DC,the output range is 0mV...+20mV.

miniature_column_load_cell_2kg

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example one: Micro Force Sensor FCFK-10N working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-10N compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 1N compression load, 2V output corresponds to 2N compression load, and so on.

Example two: Miniature Flanged Force Transducer FCFK-50N working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-50N compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 5N compression load, 12mA output corresponds to 25N compression load, and so on.

20N_pinch_force_measurement_10N

Load cell FCFK can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

Miniature Column Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg 200kg Micro Cylindrical Load cell Sensor

miniature_column_load_cell_1kg

Click here to download datasheet
