Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCFK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2525pcs/month
Detailed Product Description
Type: Miniature Force Transducer Capacity: 2lb 4lb 11lbs 22lbf 45lb
Structure: Flanged Load Cell Usage: Force Measurement
Output: Analog Sensor Mounting: Flange To Flange
Load Direction: Compression Only

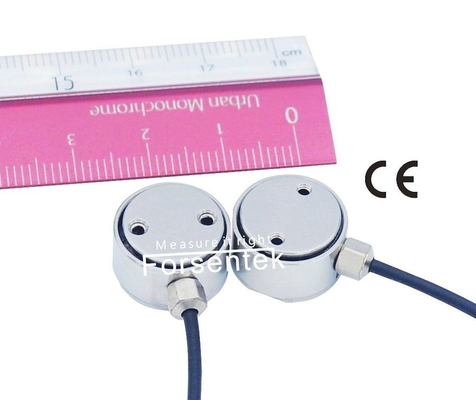

Miniature Load Cell 2lb Micro Compression Sensor 5lb Force Measurement 10lb

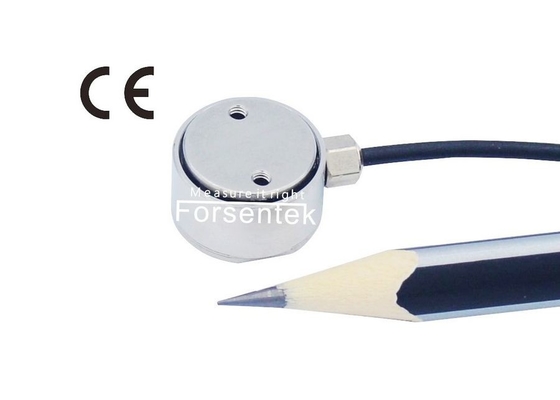

Flanged Micro Load Cell FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity. Flanged Miniature Compression Force Sensor FCFK offers 0-2.2lb / 0-4.4lb / 0-11lb / 0-22lbf / 0-44lb five measuring ranges to choose from, flange to flange mounting, compact design, you may find micro force transducer FCFK applicable for compression force measurement applications where mounting space is limited, such as fixture clamping force measurement, assembly force monitoring, force distribution test, force simulator, pinch force measurement, etc.. Miniature Flat Load Cell FCFK can also be modified or customized as per client's request.

miniature_compression_load_cell_2lb

Dimensions(in milimeter)

2lb_Compression_Force_Transducer_5lb

Ordering code Measurement Range Force direction
FCFK-10N 0-10N / 0-2.2lb Compression
FCFK-20N 0-20N / 0-4.4lb
FCFK-50N 0-50N / 0-0-10lb
FCFK-100N 0-100N / 0-20lb
FCFK-200N 0-200N / 0-45lb

Specifications

Capacity

10N / 1kg / 2.2lb

20N / 2kg / 4.4lbs

50N / 5kg / 11lb

100N / 10kg / 22lbf

200N / 20kg / 44lb

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 385±50 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø2*3000mm 4-core shielded
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-

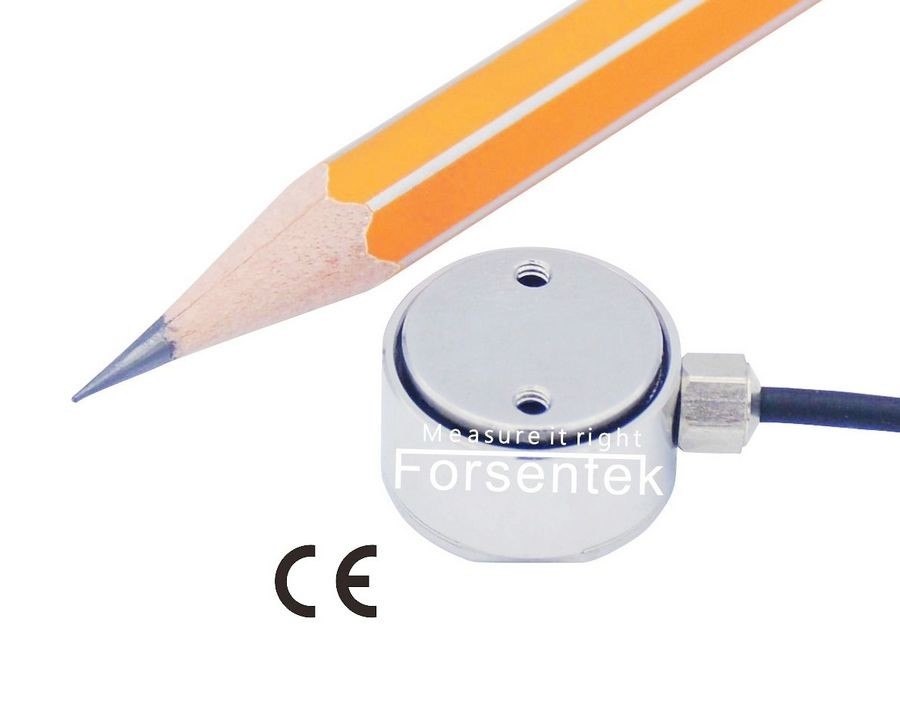

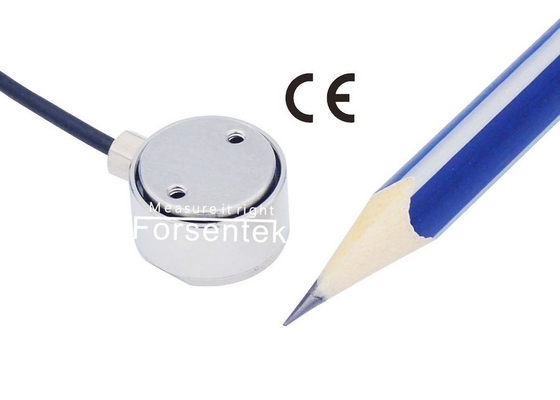

Miniature Compression Force Sensor 2lb 4lbs 11lb 22lb 45lbf Micro Force Transducer

miniature_compression_load_cell_5lb

Output signal of load cell FCFK:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Micro Load Cell FCFK is normally around 2.0mV/V.
Power supply of Pinch Force Sensor FCFK is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Transducer FCFK is normally within 0…+30mV.

Example one: Miniature Compression Sensor FCFK-100N with 2.0V/V sensitivity powered by 5V DC,the output range is 0mV...+10mV.
Example two: Micro Compression Force Transducer FCFK-20N with 2.0mV/V rated output powered by 10V DC,the output range is 0mV...+20mV.

miniature_compression_load_cell_10lb

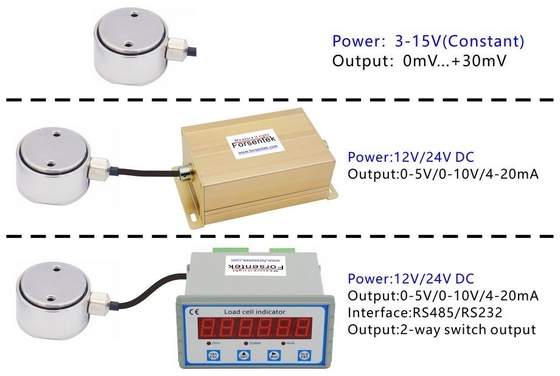

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example one: Micro Force Sensor FCFK-10N working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-10N compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 1N compression load, 2V output corresponds to 2N compression load, and so on.

Example two: Miniature Flanged Force Transducer FCFK-50N working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-50N compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 5N compression load, 12mA output corresponds to 25N compression load, and so on.

2lb_compression_force_measurement_5lb

Load cell FCFK can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

Miniature Load Cell 2lb Micro Compression Sensor 5lb Force Measurement 10lb

miniature_compression_load_cell_20lb

Click here to download datasheet
