Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer

Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer

Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer
Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer

Large Image :  Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCCK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2075pcs/month
Detailed Product Description
Type: Clamp Force Sensor Capacity: 1kN 500N 200N 100N 50N
Usage: Clamping Force Measurement Structure: Low Profile Button Load Cell
Output: Analog Transducer Material: Stainless Steel

Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer

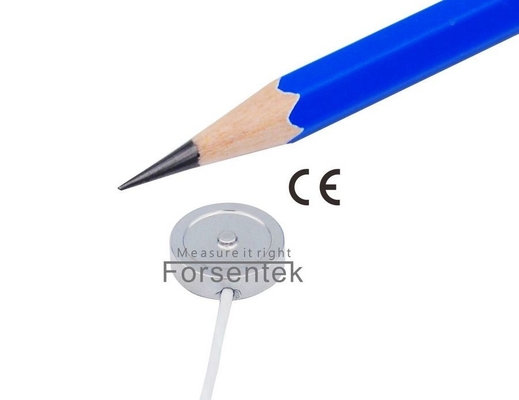

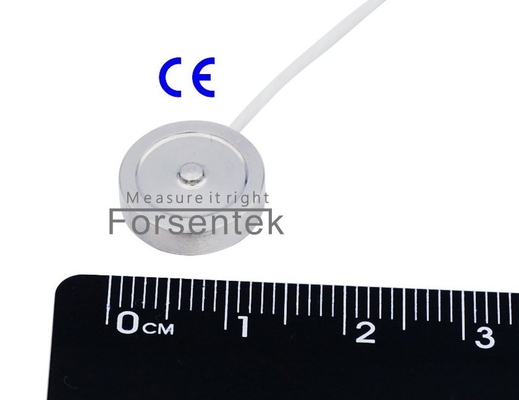

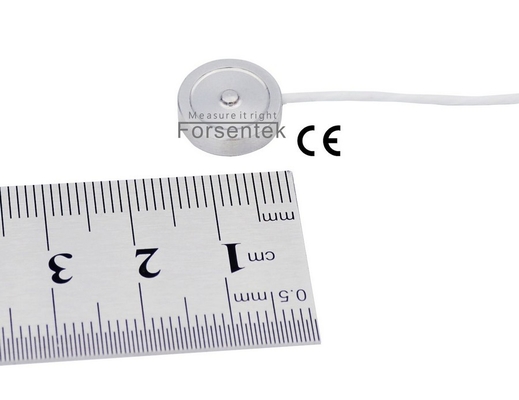

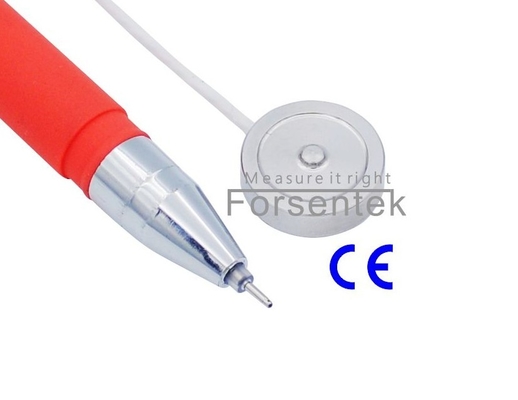

Ultra Thin Clamping Force Sensor FCCK is made of stainless steel based on strain gauge technology, very compact size with 12.7mm outer diameter and 3.95mm height which makes miniature force transducer FCCK suitable for compression force measurement applications with limited mounting space.Miniature Clamping Force Sensor FCCK offers 0-1000N / 0-500N / 0-200N / 0-100N / 0-50N five rated measuring ranges to choose from. Clamping Force Transducer FCCK utilizes 1000 ohms bridge resistance for lower heat emission and better stability, you may find Miniature Button Load Cell FCCK suitable for applications such as clamping force measurement, force overload protection, load distribution measurement, pressing die force measurement, auto equipment, medical divices, assembly line,etc.. Custom made service is available for similar structures with different measuring ranges.

50N_Clamping_Force_Sensor_100N200N_Clamping_Force_Sensor_500N
Dimensions(unit in "mm")

10lb_Fixture_Clamping_Force_Measurement_Device_20lb

Ordering code Measurement Range Force direction
FCCK-50N 0-50N / 0-5kgf Compression
FCCK-100N 0-100N / 0-10kgf
FCCK-200N 0-200N / 0-20kgf
FCCK-500N 0-500N / 0-50kgf
FCCK-1kN 0-1000N / 0-100kgf

Specifications

Capacity

50N / 100N / 200N / 500N / 1kN
5kg / 10kg / 20kg / 50kg / 100kg
10lb / 20lb / 45lb / 110lb / 220lbs

Rated output 1.5mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity

50/100/200N: ±1% R.O.

500/1000N: ±2% R.O.

Hysteresis

50/100/200N: ±1% R.O.

500/1000N: ±2% R.O.

Nonrepeatability ±0.5% R.O.
Creep(3min) ±0.5% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±100 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø1.2*3000mm 4-conductor
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



Jig Clamping Force Sensor 50N 100N 200N 500N 1kN Fixture Clamp Force Transducer

50N_Clamping_Force_Measurement_100N

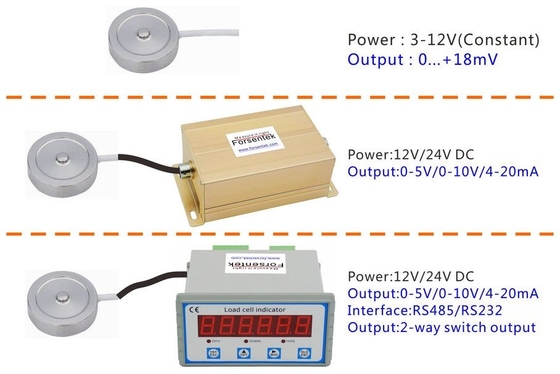

Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Ultra Thin Load Cell FCCK is normally around 1.5mV/V.
Power supply of Compact Load cell FCCK is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of Miniature Button Type Force Sensor FCCK is normally within 0…+18mV.
Example one: Miniature Button Load Cell FCCK-100N with 1.5mV/V sensitivity powered by 5V DC,the output range is 0mV...+7.5mV.
Example two: Miniature Compression Sensor FCCK-200N with 1.5mV/V rated output powered by 10V DC,the output range is -0mV...+15mV.

Fixture_Clamping_Force_Measurement_Device

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.
Example one: Button Type Compression Force Sensor FCCK-100N working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-100N compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 10N compression load, 2V output corresponds to 20N compression load, and so on.
Example two: Miniature Button Type Force Transducer FCCK-500N working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-500N compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 50N compression load, 12mA output corresponds to 250N compression load, and so on.

200N_Clamping_Force_Measurement_500N

Click here to download datasheet
