Type: | Miniature Clamp Force Load Cell | Capacity: | 1kN 500N 200N 100N 50N |
---|---|---|---|
Usage: | Clamping Force Measurement | Structure: | Thin Button Load Cell |
Output: | Analog Transducer | Material: | Stainless Steel |
Miniature Clamp Force Load Cell 1kN 500N 200N 100N 50N Clamping Force Measurement

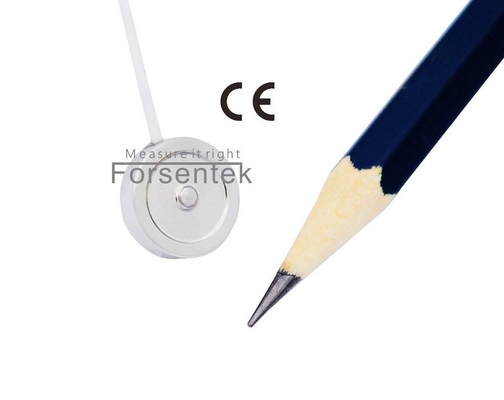

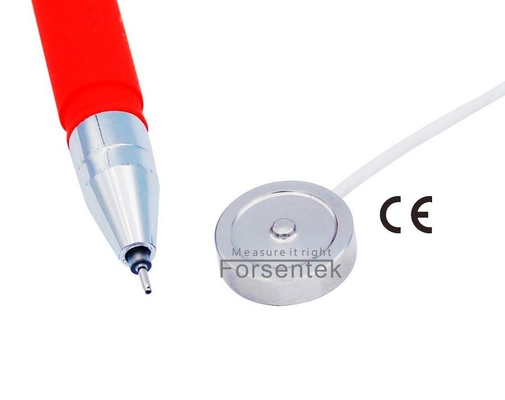

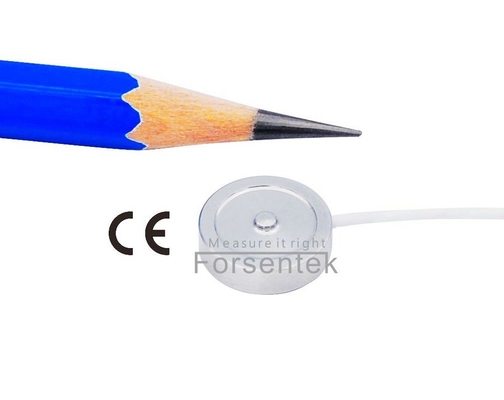

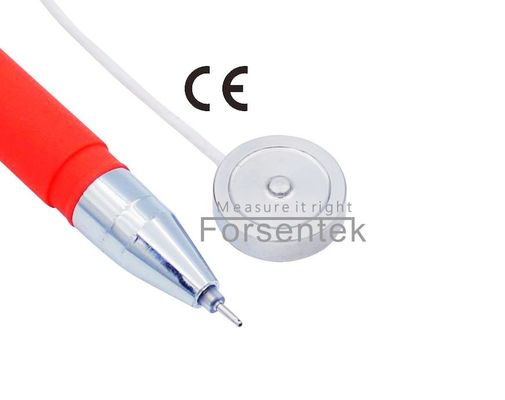

Low Profile Miniature Clamp Force Load Cell FCCK is made of stainless steel based on strain gauge technology, very compact size with 12.7mm outer diameter and 3.95mm height which makes miniature force transducer FCCK suitable for compression force measurement applications with limited mounting space.Miniature Clamp Sensor FCCK offers 0-1000N / 0-500N / 0-200N / 0-100N / 0-50N five rated measuring ranges to choose from. Model FCCK utilizes 1000 ohms bridge resistance for lower heat emission and better stability, you may find Miniature Button Load Cell FCCK suitable for applications such as fixture clamping force measurement, force overload protection, load distribution measurement, pressing die force measurement, auto equipment, medical divices, assembly line,etc.. Custom made service is available for similar structures with different measuring ranges.
A Load Cell is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell. Miniature Clamp Load Cell FCCK is designed to measure force in compression direction,outputs millivolt signal within 0~18mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to convert mV signal into -5-5V, 0-10V or 4-20mA output which is proportional to applied force.The amplified output then can be easily processed by PLCs and data acquisition software. The force can also be displayed through force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
Specifications
Capacity |
50N / 100N / 200N / 500N / 1000N |
Rated output | 1.5mV/V |
Excitation | 3-12V |
Zero balance | ±0.1mV/V |
Nonlinearity |
50/100/200N: ±1% R.O. 500/1000N: ±2% R.O. |
Hysteresis |
50/100/200N: ±1% R.O. 500/1000N: ±2% R.O. |
Nonrepeatability | ±0.5% R.O. |
Creep(3min) | ±0.5% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Compensated temperature | -10...+40oC |
Operating temperature | -20...+60oC |
Temperature shift zero | ±0.05% R.O./oC |
Temperature shift span | ±0.05% R.O./oC |
Input resistance | 1000±100 ohms |
Output resistance | 1000±100 ohms |
Insulation resistance | >2000M ohms |
Ingress protection | IP65 |
Material of element | Stainless steel |
Cable | Ø1.2*3000mm 4-conductor |
Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Miniature Clamp Force Load Cell 1kN 500N 200N 100N 50N Clamping Force Measurement

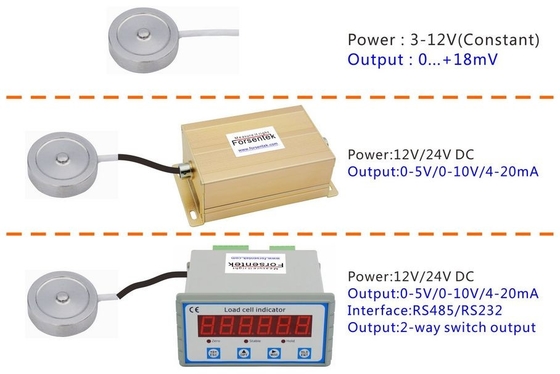

Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Ultra Thin Clamp Load Cell FCCK is normally around 1.5mV/V.
Power supply of Compact Clamp Force Sensor FCCK is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of Miniature Clamp Force Sensor FCCK is normally within 0…+18mV.
Example one: Miniature Clamping Load Cell FCCK-100N with 1.5mV/V sensitivity powered by 5V DC,the output range is 0mV...+7.5mV.
Example two: Miniature Compression Sensor FCCK-200N with 1.5mV/V rated output powered by 10V DC,the output range is -0mV...+15mV.
The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.
Example one: Button Type Clamping Force Sensor FCCK-1kN working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-1000N compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 100N compression load, 2V output corresponds to 200N clamping force, and so on.
Example two: Miniature Button Type Clamping Force Transducer FCCK-500N working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-500N compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 50N compression load, 12mA output corresponds to 250N compression load, and so on.
Dimensions(unit in "mm")
