Triaxial Load Cell 1000lb 500 lb 300lbs 200 lbf 100lb Triaxial Force Sensor

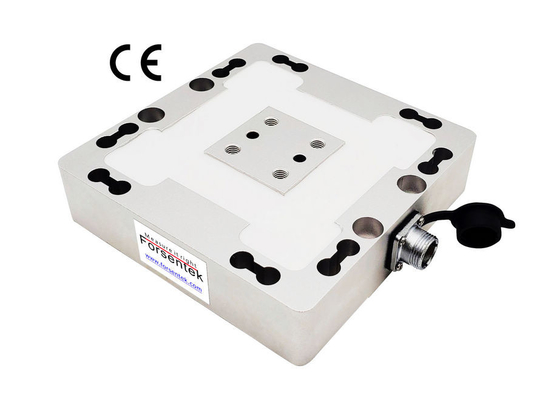

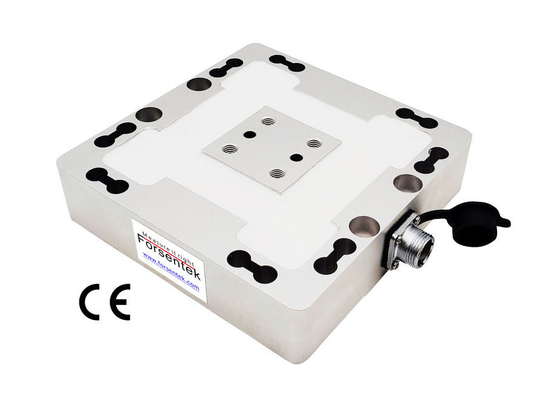

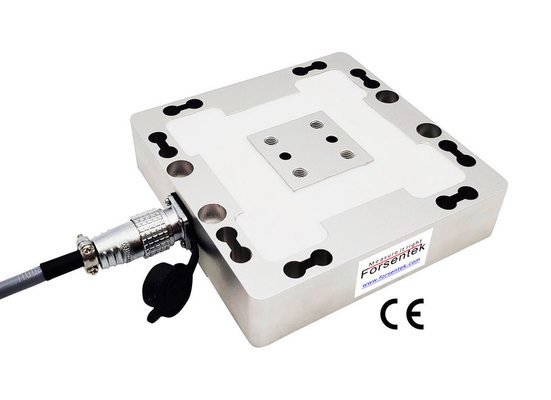

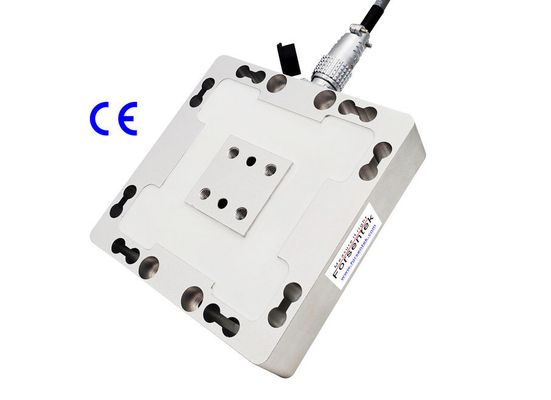

Low profile Triaxial Load Cell F3F is designed to measure force in Fx/Fy/Fz at the same time. Triaxial force sensor F3F offers 45lb / 65lb / 110lbs / 225lbf / 450lb / 674lb / 1.1klb seven rated capacities for each axis to choose from,each channel is able to measure force in both tension and compression direction.Compact design makes 3-component load cell F3F suitable for 3-axis force measurement applications with limited mounting space.You may find 3D force sensor F3F interchangeable with interface Triaxial Force Sensor 3A120 series. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

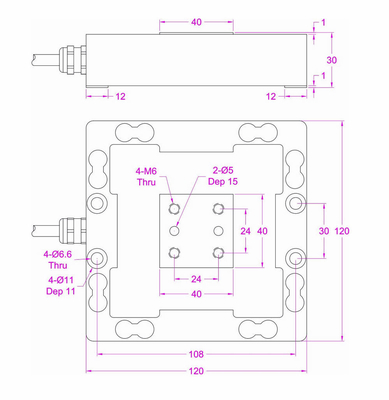

Dimensions(in milimeter)
Specifications
| Rated Capacity |
200N / 45lbs / 20kg |
| Sensitivity | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% of the capacity |
| Hysteresis | ±0.3% of the capacity |
| Non-repeatability | ±0.1% of the capacity |
| Creep(5min) | ±0.05% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element |
0-1kN: Aluminum |
| Cable | Ø6*3000mm 12-core shielded |
| Wiring code | 4-wire connection for each axis |
The output range of Tri-axial force load cell F3F is normally within -20mV...+20mV proportional to the applied load, the mV signal sometimes can hardly be recognized by signal processing units directly, a load cell signal conditioner is introduced to convert mV signal into -5-5V/0-10V/4-20mA for easy signal processing.
