| Usage: | Multi Axis Force Measurement | Type: | Triaxial Force Sensor |
|---|---|---|---|
| Capacity: | 2 Lbs 5lbs 10 Lb 20lbf | Output: | Analog Transducer |
| Load Direction: | Fx/Fy/Fz |

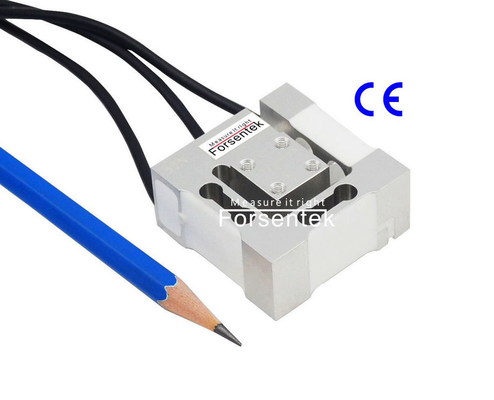

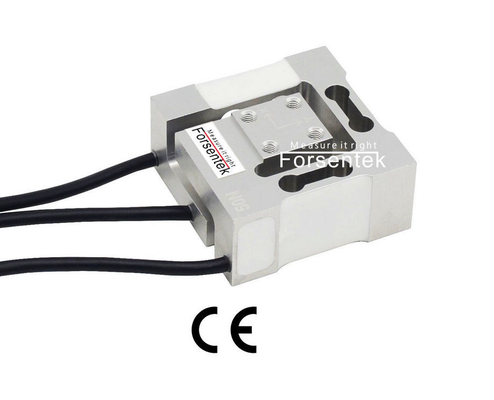

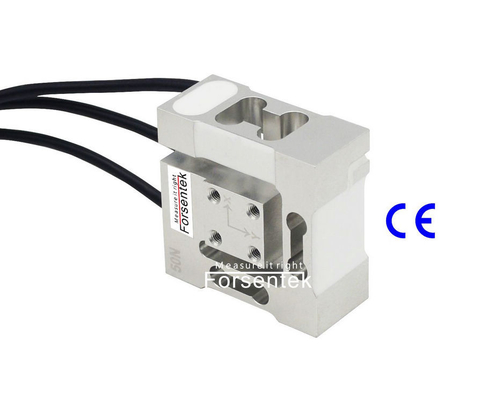

Miniature Triaxial Load Cell 20lb 10lb 5lb 2lb Multi Axis Force Sensor
Miniature Triaxial Load Cell FNZ is made of aluminum based on strain gauge technology offering 2.2 lb / 4.4 lb / 11 lb / 22 lb four measuring ranges for all three axes,each axis is capable of measuring force in both tension and compression direction. Multi-axis force sensor FNZ utilizes independent wheatstone full bridge for each axis to deliver mV/V output which proportional to the applied force and requires no mathematical manipulation,3-channel signal amplifier LC3A can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA output. Taking FNZ-100N and LC3A(-10-10V)-24V for example,the load-voltage relationship will be 0-100N load in Fx+/Fy+/Fz+ direction VS 0~10V output, 0-100N load in Fx-/Fy-/Fz- direction VS 0~(-10V) output.Typical applications for this type of transducer are for example friction force measurement,force control in robotics,force simulators, force monitoring in handing devices,industrial test benches,etc..

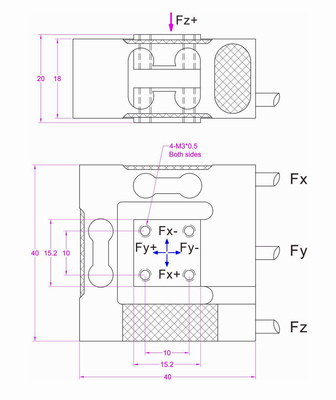

Dimensions
Specifications
| Capacity |
10N / 1kg / 2.2lb 20N / 2kg / 4.4 lb 50N / 5kg / 11lb 100N / 10kg / 22 lb |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% of the capacity |
| Hysteresis | ±0.2% of the capacity |
| Nonrepeatability | ±0.1% of the capacity |
| Creep(2min) | ±0.2% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Operating temperature | -10...+50oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable |
Ø3*2000mm 4-core for each axis |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Load cell zero output(Zero Balance):The output signal of the loadcell with no-load applied,expressed in mV/V or as a percentage of rated output.The zero output is caused by the stress during strain gauge bonding,it can be handled during calibration or signal processing without affecting the measurement accuracy.
Miniature Triaxial Load Cell 20lb 10lb 5lb 2lb Multi Axis Force Transducer
