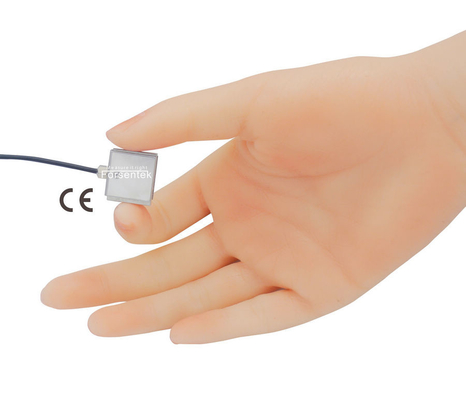

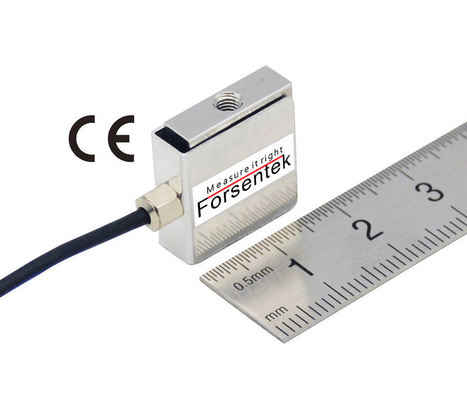

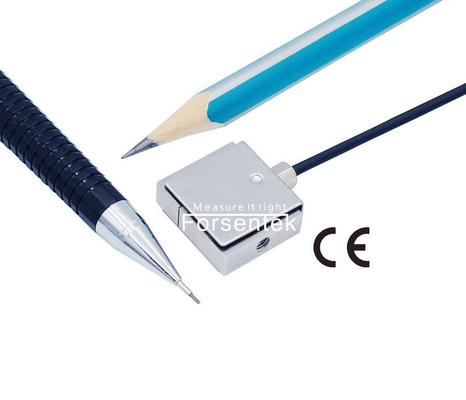

Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement

Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement

Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement
Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement

Large Image :  Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FSSM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3310pcs/month
Detailed Product Description
Usage: Force Measurement Type: Miniature Force Transducer
Force Direction: Tension And Compression Capacity: 2lb 4lb 5lb
Structure: Jr S Beam Load Cell Output: Analog Sensor

Micro Force Sensor 2lb Miniature S Beam Load Cell 4lb Tension Compression Force Measurement

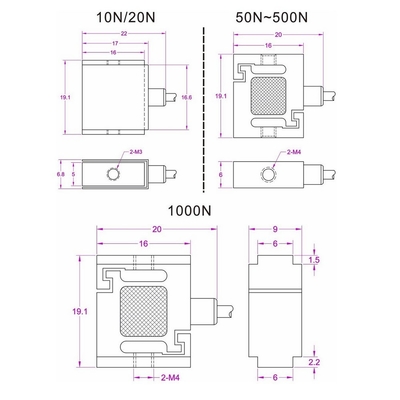

Miniature Force Transducer FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, offers 2.2lb / 4.4lb / 11lb / 22lb / 45lb / 67lb / 110lb / 220lb eight rated capacities to choose from.The mini jr s beam load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity,the compact design enables s type force sensor FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features M3/M4 threaded holes on two sides for the mounting of attachments or implements, this micro load cell force sensor can be used for both tension and compression force measurement in applications with limited mounting space. You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec force transducer ISB,etc..

5lb micro force sensor 2lb
Specifications

Capacity 10N / 1kgf / 2.2lbf
20N / 2kgf / 4.4 lbf
50N / 5kg / 11.2lb
100N / 10kgf / 22.4lbf
200N / 20kgf / 45 lbs
300N / 30kg / 67lbf
500N / 50kgf / 112 lb
1kN / 100kg / 224 lbf
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% of capacity
Hysteresis ±0.1% of capacity
Nonrepeatability ±0.05% of capacity
Creep(5min) ±0.1% of capacity
Safe overload 150% of capacity
Ultimate overload 200% of capacity
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded cable
Wiring code

Compression@
Red--Excitation+  Black--Excitation-

Green--Signal+  White--Signal-



A force sensor is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell.Tension and compression force transducer FSSM is designed to measure force in both tension and compression direction,outputs millivolt signal ranging -30~30mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5-5V, 0-10V or 4-20mA signal proportional to applied force.The amplified output then can be easily processed by PLCs and data acquisition software.The force can be displayed through force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.

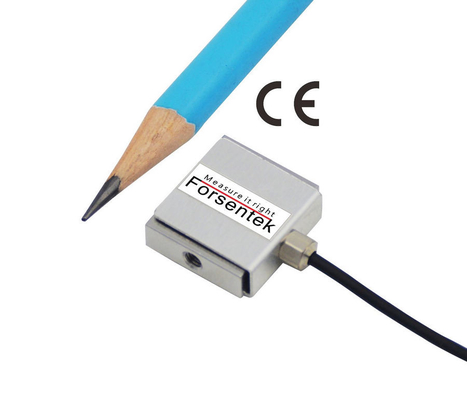

Micro Force Sensor 5lb Miniature S Beam Load Cell 2lb Tension Compression Force Measurement

2lb micro force sensor 5lb
 Click here to download datasheet
