Product Details:
Payment & Shipping Terms:
|
| Usage: | Compression Tension Force Measurement | Type: | S Type Load Cell |
|---|---|---|---|
| Connection: | M8/M12 Threaded Hole | Output: | Analog Sensor |
| Capacity: | 10lb 20lb 40lb 60lb 110lb 220lb 440lb 660lb |

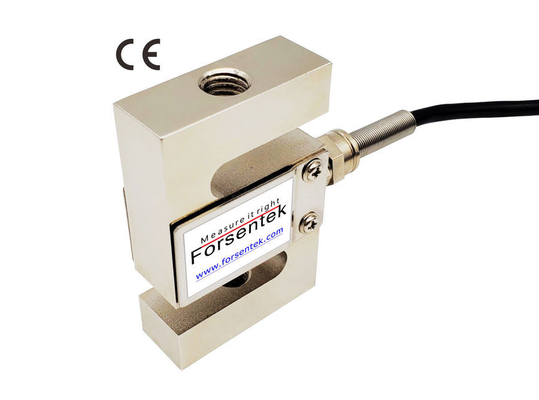

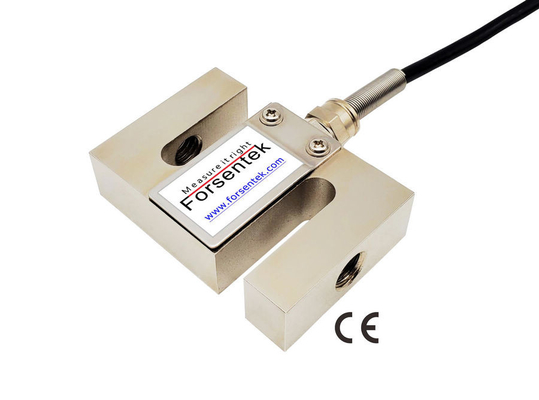

M8 Threaded S Type Load Cell 10lb 20lb 50lb 100lb S Beam Force Sensor

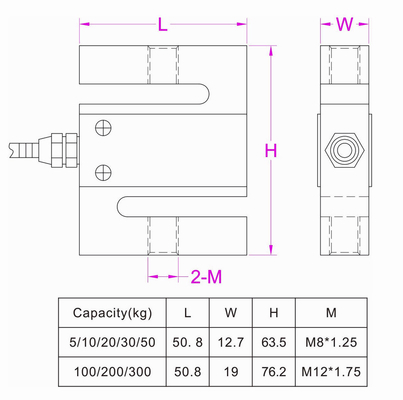

Dimensions
Specifications
| Capacity |
5kg / 50N / 11 lb 10kg / 100N / 22 lbf 20kg / 200N / 44 lb 30kg / 300N / 66 lbf 50kg / 500N / 110 lbs 100kg / 1kN / 220 lb 200kg / 2kN / 440 lbf 300kg / 3kN / 660 lb |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.05% of full capacity |
| Hysteresis | ±0.05% of full capacity |
| Nonrepeatability | ±0.03% of full capacity |
| Creep(5min) | ±0.03% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 385±50 ohms |
| Output resistance | 380±30 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø5 *2000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of S-beam load cell FS6A is around 2.0mV/V.
Power supply of S type force sensor FS6A is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of S beam force transducer FS6A is normally within -30mV...+30mV for tension and compression force measurement.
Example one: S type Load Cell FS6A-10kg with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.
Example two: S beam force sensor FS6A-20kg with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: S type force transducer FS6A-50kg working with -5-5V amplifier,the Force-Voltage relationship will be 0-50kg compression load VS 0-5V output, 0-50kg tension load VS 0-(-5V) output,which is linear regardless of the sensor error.

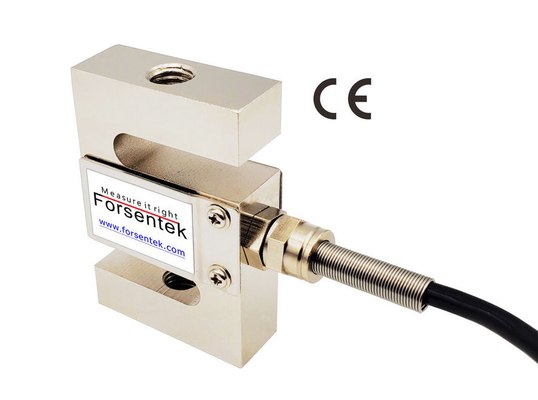

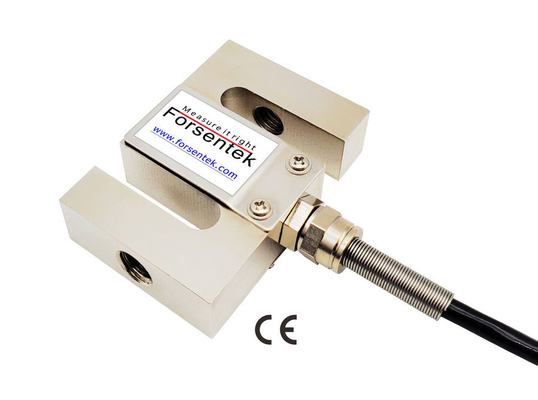

M8 Threaded S Type Force Sensor 10lb 20lb 50lb 100lb S Beam Load Cell
