|Usage:||Weight Measurement||Type:||Micro Load Cell|
|Output:||Analog Sensor||Capacity:||10kg 5kg 3kg 2kg 1kg 0.5kg|
|Feature One:||Miniature Size||Feature Two:||High Accuracy|
|Feature Three:||Light Weight||Feature Four:||Affordable|
Micro Weight Transducer 20 lb Miniature Load Cell 10lb Small Weight Sensor 5 lb

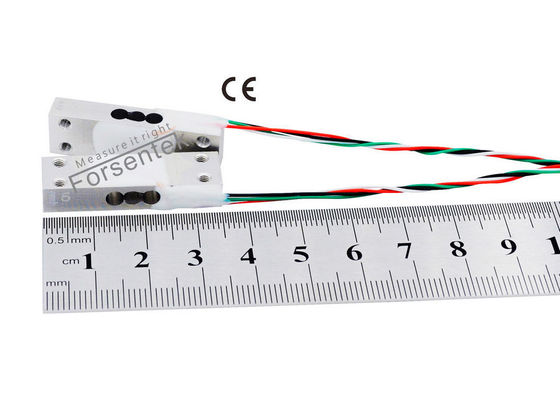

Micro Load Cell FMZK is strain gauge based to deliver 1.0mV/V output from full wheatstone bridge. Small load sensor FMZK offers 0.5kg / 1kg / 2kg / 3kg / 5kg / 6kg / 10kg seven measuring ranges to choose from,high accuracy with maximum 0.05% non-linearity of the full capacity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to common 350 ohms gauges.The compact size and aluminum construction makes FMZK weighs only about 5.3 grams which makes it suitable for portable weighing devices.Small size weight sensor FMZK offers a perfect mixture of small size,high accuracy and low cost,which makes inexpensive loadcell FMZK suitable for weight monitoring in consumer electronics.You may find Miniature Load Sensor FMZK applicable for home appliances, force simulators, process control, robotics, automotive and so on. Forsentek is also capable of and willing to provide custom made service if you cannot find suitable weight/load/force measurement transducers from the standard product portfolio.
0.5kg / 5N / 1.1lb
1kg / 10N / 2.2 lb
2kg / 20N / 4.4lb
3kg / 30N / 6.6 lb
5kg / 50N / 11 lb
6kg / 60N / 13.2lb
10kg / 100N / 22 lb
|Rated output||1.0 mV/V|
|Nonlinearity||±0.05% of R.O.|
|Hysteresis||±0.05% of R.O.|
|Nonrepeatability||±0.05% of R.O.|
|Creep(3min)||±0.05% of R.O.|
|Safe overload||120% of F.S.|
|Ultimate overload||200% of F.S.|
|Temperature shift zero||±0.03% of R.O./oC|
|Temperature shift span||±0.02% of R.O./oC|
|Input resistance||1000±100 ohms|
|Output resistance||1000±10 ohms|
|Insulation resistance||>2000M ohms|
|Material of element||Aluminum alloy|
|Cable||32AWG*170mm(Longer cable available)|
|Wiring code||Red--Excitation+ Black--Excitation-
Small size load cell sensor FMZK is a transducer that converts mechanical force into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of micro load cell FMZK is normally around 1.0mV/V.
Power supply of miniature weight sensor FMZK is normally within 3-10V.
Load / Capacity is within 0-1.
So the output range of small weight transducer FMZK is normally within 0-10mV.
Example one: Miniature Load Sensor FMZK-5kg with 1.0mV/V sensitivity powered by 3.3V DC,the output range is 0~3.3mV.
Example two: Micro Weight Transducer FMZK-10kg with 1.0mV/V rated output powered by 5V DC,the output range is 0~5mV.
Micro Weight Transducer 20lb Miniature Load Cell 10 lb Small Weight Sensor 5lb
