Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg

Good quality 3 axis force sensor for sales
Good quality 3 axis force sensor for sales
I'm Online Chat Now

Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg

China Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg supplier
Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg supplier Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg supplier Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg supplier Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg supplier Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg supplier

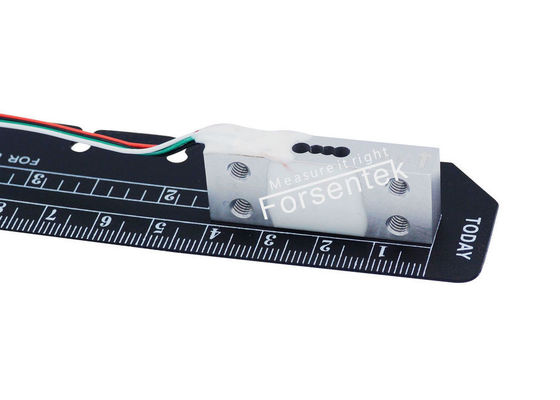

Large Image :  Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FMZU

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 36000pcs/month
Contact Now
Detailed Product Description
Usage: Weight Measurement Type: Micro Load Cell
Output: Analog Sensor Capacity: 5kg 10kg 20kg 30kg
Feature One: Miniature Size Feature Two: High Accuracy
Feature Three: Light Weight Feature Four: Affordable

Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg

Miniature Weight Sensor FMZU is strain gauge based to deliver 1.0mV/V output from full wheatstone bridge. Small load sensor FMZU offers 5kg / 10kg / 15kg / 20kg / 30kg five rated capacities to choose from,high accuracy with maximum 0.05% non-linearity of the full capacity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to common 350 ohms gauges.The compact size and aluminum construction makes FMZU weighs only about 12 grams which makes it suitable for portable weighing devices.Small size weight sensor FMZU offers a perfect mixture of small size,high accuracy and low cost,which makes inexpensive loadcell FMZU suitable for weight monitoring in consumer electronics.You may find Miniature Load Sensor FMZU applicable for home appliances, force simulators, process control, robotics, automotive and so on. Forsentek is also capable of and willing to provide custom made service if you cannot find suitable weight/load/force measurement transducers from the standard product portfolio.
20kg small load cell 30kg
Dimensions
20kg micro weight sensor 30kg
Specifications

Rated capacity

5kg / 50N / 11 lb

10kg / 100N / 22 lb

1​5kg / 150N / 33 lb

20kg / 200N / 44 lb

30kg / 300N / 66 lb

Rated output 1.0 mV/V
Excitation 3-10 V
Zero balance ±0.2mV/V
Nonlinearity ±0.1% of R.O.
Hysteresis ±0.1% of R.O.
Nonrepeatability ±0.05% of R.O.
Creep(5min) ±0.05% of R.O.
Safe overload 120% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift zero ±0.03% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable 32AWG*170mm
Wiring code Red--Excitation+   Black--Excitation-
Green--Signal+   White--Signal-


Small size load cell sensor FMZK is a transducer that converts mechanical force into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output micro load cell FMZU is around 1mV/V.
Power supply of miniature weight sensor FMZU is normally within 3-10V.
Load / Capacity is within 0-1.
So the output range of weight transducer FMZU is normally within 0-10mV.
Example one: Micro Load Sensor FMZU-20kg with 1.0mV/V powered by 3.3V DC,the output range is 0~3.3mV.
Example two: Miniature
Weight Sensor FMZU-30kg with 1.0mV/V powered by 5V DC,the output range is 0~5mV.

Miniature Load Cell 30kg Micro Weight Sensor 20kg Small Weight Transducer 10kg

miniature load cell with arduino

Click here to download datasheet
