100kg Single Point Load Cell 200kg Beam Type Load Cell Sensor 350kg

China 100kg Single Point Load Cell 200kg Beam Type Load Cell Sensor 350kg supplier
100kg Single Point Load Cell 200kg Beam Type Load Cell Sensor 350kg supplier 100kg Single Point Load Cell 200kg Beam Type Load Cell Sensor 350kg supplier 100kg Single Point Load Cell 200kg Beam Type Load Cell Sensor 350kg supplier 100kg Single Point Load Cell 200kg Beam Type Load Cell Sensor 350kg supplier 100kg Single Point Load Cell 200kg Beam Type Load Cell Sensor 350kg supplier

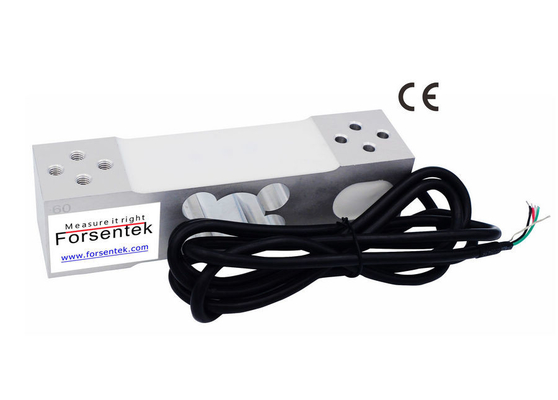

Large Image :  100kg Single Point Load Cell 200kg Beam Type Load Cell Sensor 350kg

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FNL

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 7920pcs/month
Contact Now
Detailed Product Description
Usage: Weight Measurement Sensor Type: Single Point Load Cell
Output: Analog Transducer Capacity: 60kg 100kg 200kg 350kg
Feature: Off Center Loadcell

100kg Single Point Load Cell 200kg Beam Type Load Cell Sensor 350kg

Precision Single Point Load Cell FNL is a strain gauge based weight sensor which offers 0-60kg / 0-100kg / 0-200kg / 0-350kg four measuring ranges to choose from.High accuracy Weight Sensor FNL delivers maximum 0.015% non-linearity of the full scale. Beam Type Load Cell FNL is corner trimmed for platform sizes up to 400x400mm which makes it suitable for off-center load measurement. Weight sensor FNL delivers stable performance within the declared working temperature range thanks to its temperature compensation process. You may find Load Cell Transducer FNL suitable for applications such as beehive weighing scales, packing machines, platform scales, feeding machines and so on.

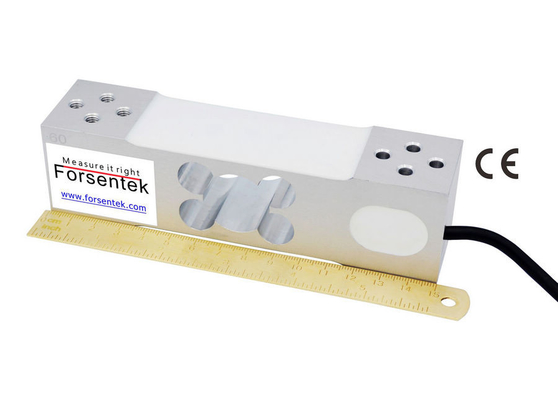

200kg single point load cell 100kg
Specifications

Capacity

60kg / 600N / 132 lb
100kg / 1000N / 220 lbf
200kg / 2000N / 440 lbf
350kg / 3500N / 770 lb

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.015% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 405±10 ohms
Output resistance 350±3 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø5*1500mm 4-core shielded
Wiring code

Red--Exc+ Black--Exc-

Green--Sig+ White--Sig-



A weight sensor is a transducer that converts mechanical load into electrical signal which is proportional to the load being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the load cell which is normally within 0-30mV. Overloading is the most common cause of loadcell failure, a load sensor is just like a spring in certain aspects, which will be damaged if overstretched or overloaded. A machanical stop(refer to below picture) can be used to protect the sensor from excessive deformation. The deformation distance can be determined by loading the sensor with rated capacity, then adjust the meachnical stop to reach the bottom of the transducer. In most cases, the load cell will be used to measure load at 40-80% of the full capacity, thus the deformation distance can be adjusted using reference load a bit higher than the target load to be measured instead of the rated capacity.

weight sensor with overload protection

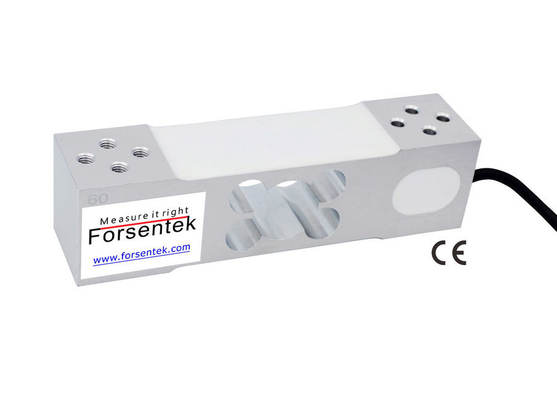

200kg Single Point Load Cell 100kg Beam Type Load Cell Sensor 350kg

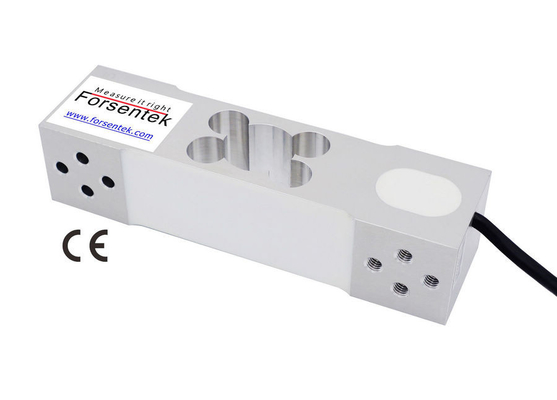

100kg single point load cell 350kg

Click here to download datasheet
