| Type: | Column Type Force Transducer | Output: | Analog Sensor |
|---|---|---|---|
| Capacity: | 20N 50N 100N 200N 500N 1000N 2000N | Force Measurement Direction: | Tension And Compression |
| Mounting: | Flange-to-Flange |

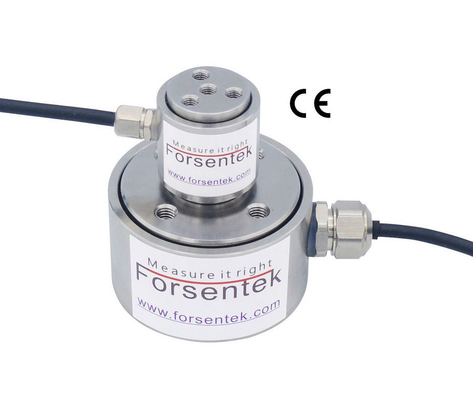

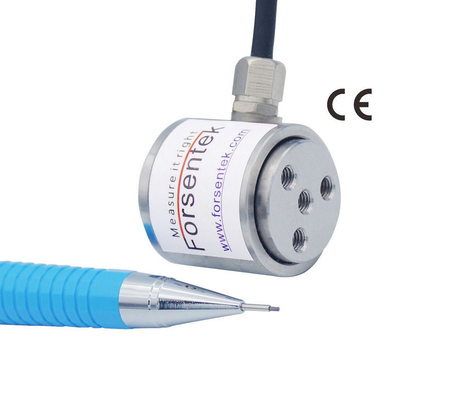

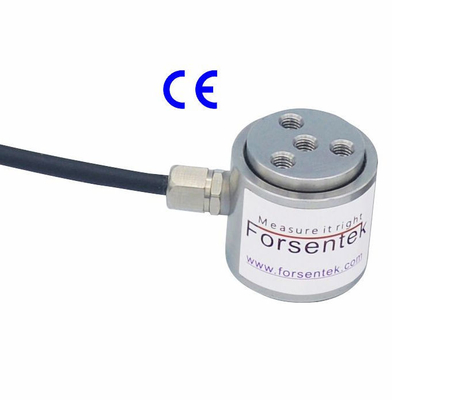

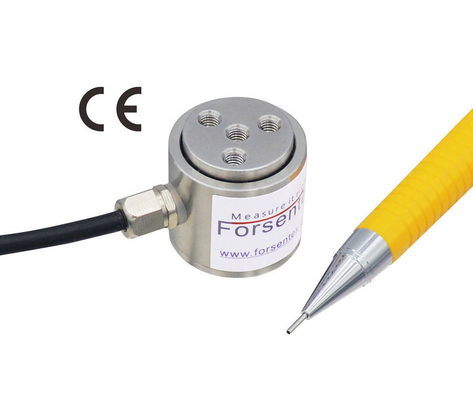

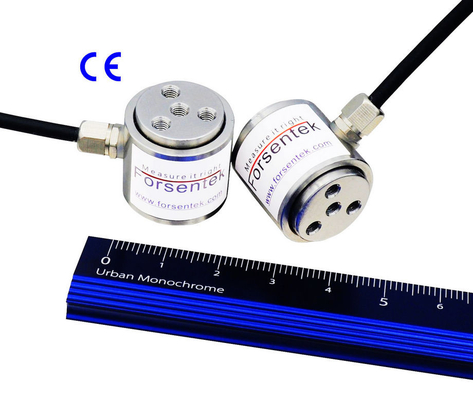

Column Type Force Sensor 20N 50N 100N 200N 500N 1kN 2kN Cylinder Force Transducer
Micro Column Load Cell FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated output.Miniature cylinder force sensor FFG offers 0-20N / 0-50N / 0-100N / 0-200N / 0-500N / 0-1kN / 0-2kN six rated capacities to choose from, cylinder force transducer FFG can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Miniature Cylinder Load Cell FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

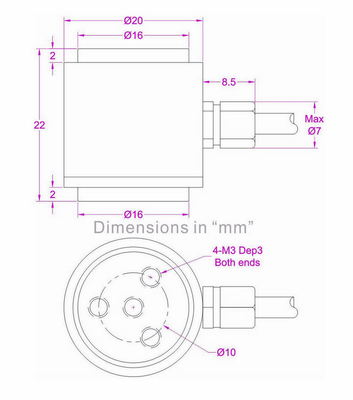

Dimensions(Unit in "mm")
| Ordering code | Measurement Range | Force direction |
| FFG-20N | 0-20N / 0-2kgf | Tension/compression |
| FFG-50N | 0-50N / 0-5kgf | |
| FFG-100N | 0-100N / 0-10kgf | |
| FFG-200N | 0-200N / 0-20kgf | |
| FFG-500N | 0-500N / 0-50kgf | |
| FFG-1kN | 0-1000N / 0-100kgf | |
| FFG-2kN | 0-2000N / 0-200kgf |
Specifications
| Capacity |
4.4lb / 10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf 2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg 20N / 50N / 100N / 200N / 500N / 1kN / 2kN |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output force sensor FFG is around 2.0mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of force transducer FFG is normally within -30mV...+30mV for tension/compression force measurement.
Example one:Column load cell FFG-50N with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.
Example two: Cylinder type force sensor FFG-100N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Column type tension compression load cell FFG-200N working with -10-10V amplifier,the Force-Voltage relationship will be 0-200N compression load VS 0-10V output,0-200N tension load VS 0-(-10V) output,when you get 5V output,it means the current load is 100N compression force,when you get -1V output,it means the current load is 20N tension force,and so on.
